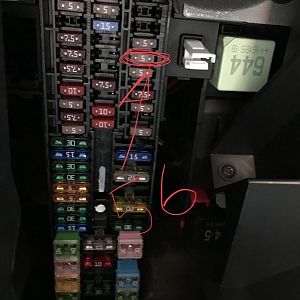

VW T6 Starter fuse 56
Diode and fuse in dual piggy bag insert
Diode saldered on top of blown fuse
Start Stop Override Button Wiring and Pinouts
Start Stop Override Button removal VW T6
Removing Radio surround plate with vents VW T6
Roman

Start Stop Override Button Wiring and Pinouts

2x BK - IGN
BN - GND
GY/BU - ILL
GY/RD - Status LED Negative CTL
BN/BK - BUTTON Positive OUT
Click to expand...
