Constructing platform in T6 Kombi load space

[ADub705]

Hi,

I've got a T6 LWB Kombi with a Motexion bulkhead and rubber floor still fitted. I need to build a platform in the load space but as I'm not changing the rubber floor and want to retain space below the platform I'm not planning on using uprights to support the platform. My plan is to span across the van from the horizontal beams behind the panels about halfway up the sides (where the trim clips insert)) with say 50mm x 50mm wood and then top with plywood board. Total load including the platform likely to be 100 - 120kg.

Does anyone have experience of supporting weight from these horizontal beams in the rear panels? Will they take the weight?



[airhoguk]

I've seen it done with Crafters and Sprinters and someone even makes specific brackets to attach but whether a T6 would take a similar load i'm not sure. Speak to North Shore Classics on the Isle of Wight as they make one of the kits i mentioned and say its adaptable for other vans but doesn't say which ones



[The Bear78]

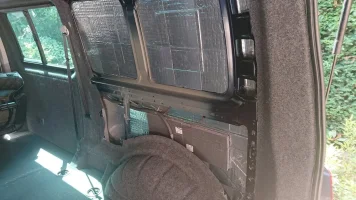

I also have a LWB Kombi and I am in the process of making a platform to use as a bed that sits on the folded down rear seats (nothing original there) but I intend to support the rear section with a frame the attaches to the rear seatbelt mounting points. These are 7/16 UNF nuts in the structure at the locations shown below. I am going to try a strap hung from the upper mount that supports a fold up metal frame but if that doesn't work I will probably fasten a removable bar to both upper and lower to points so it is a bit more rigid.



[ADub705]

Thanks both, I'll give North Shore a call tomorrow. That's the type of thing I need, I'd prefer metal but don't have the fabrication experience to build myself.

I saw those captive threads, didn't realise they were for seat belts, they could come in handy for extra support if I end up self building.



[The Bear78]

I saw those captive threads, didn't realise they were for seat belts,.....

I'm fairly certain that's why they're there!



[Littleblackflash]

They will take the load easily if it's uniformly distributed and you're not bending them. Just thing how much force they absorb in a crash, 100 - 120kg isn't much at all.



[The Bear78]

I'm confident that they'll take the weight it's just how well it works!



[ADub705]

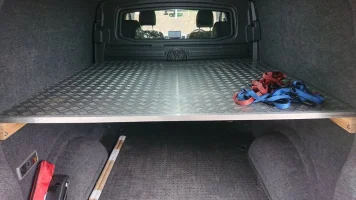

I ended up doing it myself. I've been using it for a few months now and no warping in the side panels .



[The Bear78]

I ended up doing it myself. I've been using it for a few months now and no warping in the side panels . View attachment 90257

I like that. It's exactly how I envisage my removable bed system looking although with multiple mounts/supports rather than a full length rail.
