Extra deep step fitting? SOLVED

[drinfinity]

I have a Reimo Variotech 3000 fitted. The floor is 40mm deep from the low part of the van floor. I have the extra deep caravelle side step, but it is still 7mm short. I can pack underneath, and move the side fasteners upwards.

However, I could do with some really long clips for the base. The existing ones don’t even reach the holes. I’ve tried some spare door panel clips I had, but again not long enough. 35mm would be ideal.

Any thoughts before I get grumpy and bang some self tappers through?



[Bigsidavies]

Someone with a 3d printer maybe?



[Deaky]

Anything clip wise on here?

Car Trim Clips & Fasteners - Trade Prices - Vehicleclips.co.uk

Huge range of trim clips & fasteners for cars & other vehicles. From bumper clips to door cards and wheel arches, we've every type of automotive clip and fastener. Available to private individuals or for trade and wholesale.

www.vehicleclips.co.uk



[Deaky]

Maybe these?

Interior Pillar Trim Cover Clip for Volkswagen Cars & Vans, 32mm Long

These parts are a suitable alternative for the VW part number 3D0867333. This 32mm long barbed stud is used to secure some interior pillar covers and trim panels. It is used on some VW cars and vans such as the Transporter. The originals are hard to find and so we have managed to source this...

www.vehicleclips.co.uk



[rod_vw]

Strange that your caravelle step doesn't fit as I have fitted a few vans with Reimo track and that step always fits perfectly.



[drinfinity]

Strange that your caravelle step doesn't fit as I have fitted a few vans with Reimo track and that step always fits perfectly.

Yes, I’ve seen photos on one one here. The floor surface (top of vinyl) is about 0.5 mm below the the top surface of the track. When I put the step on, it doesn’t reach the original clips, and sags down when I step on it. It measures about 7mm too low.

The step is original VW from a caravelle, including the genuine Caravelle light, so I was surprised.



[drinfinity]

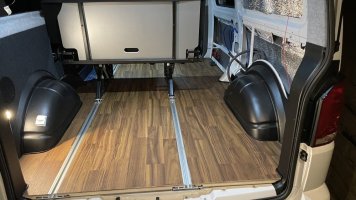

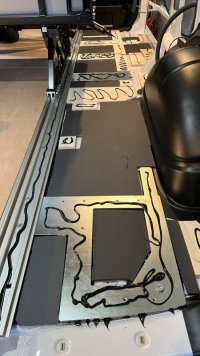

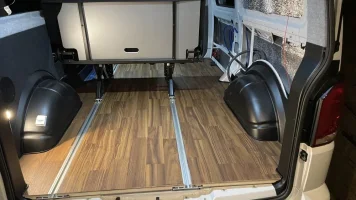

The Reimo track is bolted to a plate, which is bonded to the van floor. Pictures from the back showing the various layers (its side step I’m doing ).



[drinfinity]

Maybe these?

Thanks for that - I’ll give them a try.



[rod_vw]

Ah the modern bonded Reimo track, mine have always been the bolt down type.

This the height of my step is this...


95mm from step base to top, sorry it's dirty I'll get my act together and clean it soon.

As for the rear, I've been able to refit the original clamped into place with longer screws.



[drinfinity]

Thanks, that explains it here - the bonded plate adds about 15mm, and at the back the step is cut to butt up to the back of the floor, it won’t go over the top at all.



[CJW]

Any thoughts before I get grumpy and bang some self tappers through?

Further down the line, If you really get stuck, I'm happy to share what I did when I got grumpy with my step's fixings, which wouldn't stay fixed.



[drinfinity]

Maybe these?

Interior Pillar Trim Cover Clip for Volkswagen Cars & Vans, 32mm Long

These parts are a suitable alternative for the VW part number 3D0867333. This 32mm long barbed stud is used to secure some interior pillar covers and trim panels. It is used on some VW cars and vans such as the Transporter. The originals are hard to find and so we have managed to source this...

www.vehicleclips.co.uk

Thanks for the tip! Ordered, just dropped through the letterbox, and I have a step that fits!



[360ian]

does anyone have the part number for the caravelle step?



[rod_vw]

does anyone have the part number for the caravelle step?

Not 100% certain but try these and always double check with your supplier.

Without stainless steel insert -- 7E5 863 725A 82V

With Stainless steel insert -- 7E5 863 725D LAX

If you don't have the longer illuminating light that fits in the step you will need a variant of this (variation depends on the inscription)

Step light with 'Caravelle' inscription -- 7LC 947 415AA 72A other inscriptions are available.

and an adaptor wiring loom -- 7LA 971 067B

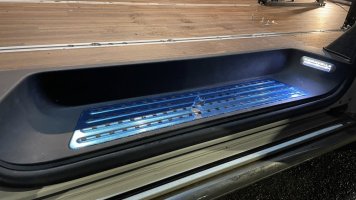

If you are looking at the one with the stainless steel insert as in the picture above be sitting down when you ask the price!!



[360ian]

B

Not 100% certain but try these and always double check with your supplier.

Without stainless steel insert -- 7E5 863 725A 82V

With Stainless steel insert -- 7E5 863 725D LAX

If you don't have the longer illuminating light that fits in the step you will need a variant of this (variation depends on the inscription)

Step light with 'Caravelle' inscription -- 7LC 947 415AA 72A other inscriptions are available.

and an adaptor wiring loom -- 7LA 971 067B

If you are looking at the one with the stainless steel insert as in the picture above be sitting down when you ask the price!!

brilliant thank you!! I will take a look!



[Codrut]

Hello all! With Stainless steel insert -- 7E5 863 725D LAX This part is with 9,5 cm high,is anyone who knows part number for 8 cm high? I need for Caravelle with rubber floor!
Thank you!



[Codrut]

B

brilliant thank you!! I will take a look!

Not 100% certain but try these and always double check with your supplier.

Without stainless steel insert -- 7E5 863 725A 82V

With Stainless steel insert -- 7E5 863 725D LAX

If you don't have the longer illuminating light that fits in the step you will need a variant of this (variation depends on the inscription)

Step light with 'Caravelle' inscription -- 7LC 947 415AA 72A other inscriptions are available.

and an adaptor wiring loom -- 7LA 971 067B

If you are looking at the one with the stainless steel insert as in the picture above be sitting down when you ask the price!!

Hello all! With Stainless steel insert -- 7E5 863 725D LAX This part is with 9,5 cm high,is anyone who knows part number for 8 cm high? I need for Caravelle with rubber floor!
Thank you!



[rod_vw]

Hello all! With Stainless steel insert -- 7E5 863 725D LAX This part is with 9,5 cm high,is anyone who knows part number for 8 cm high? I need for Caravelle with rubber floor!
Thank you!

You need the PR numbers that relate to your vehicle and search the parts lists for the step that matches a van with the appropriate PR number.
