P0697 sensor reference voltage c fault
- Thread starter T6newbie
- Start date
-
- Tags
- fault codes
Hi @mmi
Thanks for the prompt I’m a VCDS newbie. The full scan showed two faults. I hope someone can help
Thanks for the prompt I’m a VCDS newbie. The full scan showed two faults. I hope someone can help
Code:
01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: OK 0000
13-Auto Dist. Reg -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
18-Aux. Heat -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
5F-Information Electr. -- Status: OK 0000
61-Battery Regul. -- Status: OK 0000
69-Trailer -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (2D2D2-CXHA) Labels:. 04L-907-309-V2.clb
Part No SW: 04L 906 056 KM HW: 04L 907 445
Component: R4 2.0l TDI H02 6186
Revision: 23002001
Coding: 0019401C434401090000
Shop #: WSC 61389 001 1048576
ASAM Dataset: EV_ECM20TDI03004L906056KM 004013
ROD: EV_ECM20TDI03004L906056KD_004.rod
VCID: 020B3C09950F165AC3-8056
2 Faults Found:
30250 - Manifold / Barometric Pressure Sensor (G71) / (F96)
P0106 00 [097] - Implausible Signal
Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Mileage: 75480 km
Engine speed: 0.00 /min
Normed load value: 0.0 %
Vehicle speed: 0 km/h
Coolant temperature: 33 °C
Intake air temperature: 0 °C
Ambient air pressure: 970 mbar
Voltage terminal 30: 11.625 V
Unlearning counter according OBD: 40
Absolute intake pressure: 97 kPa abs
Air filter outlet: pressure sensor 1 bank 1: raw value: 924 mbar
Turbocharg.2 compress.outlet: press.sensor 1 bank 1: raw value: 0 mbar
Ambient air pressure sensor 1 bank 1: raw value: 0.974 bar
Throttl.valve adapt. 1 bank 1: posit feedback - Act.value: 0.00 %
Engine status: Stop
Extern.temp.sens.1 bank 1: raw value: 10.5 °C
Filtered value of IN_Dpf_dp_raw-CDPF Delta Pressure in hPa: 2.000 hPa
Particle filter: air pressure sensor 1 bank 1: raw value: 2.0 mbar
Accelerator pedal travel: raw value: 0.00 %
27198 - Sensor Reference Voltage C
P0697 00 [039] - Open Circuit
Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Mileage: 75480 km
Date: 2070.01.07
Time: 20:53:46
Engine speed: 944.00 /min
Normed load value: 40.4 %
Vehicle speed: 0 km/h
Coolant temperature: 32 °C
Intake air temperature: 14 °C
Ambient air pressure: 970 mbar
Voltage terminal 30: 14.312 V
Unlearning counter according OBD: 40
Engine status: Idling
Engine running time-Pressure BIN10 bar: 7 s
Control Module temperature: 24.2 °C
ESM_Battery_voltage-Voltage: 14.31 V
Low battery mode active-Bool type: No

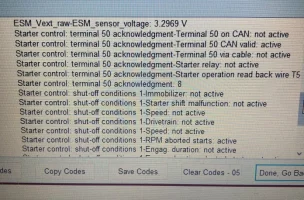

ESM_Vext_raw-ESM_sensor_voltage: 3.2891 V
Starter control: terminal 50 acknowledgment-Terminal 50 on CAN: not active
Starter control: terminal 50 acknowledgment-Terminal 50 CAN valid: active
Starter control: terminal 50 acknowledgment-Terminal 50 via cable: not active
Starter control: terminal 50 acknowledgment-Starter relay: not active
Starter control: terminal 50 acknowledgment-Starter operation read back wire T50Ret: not active
Starter control: terminal 50 acknowledgment: 8
Starter control: shut-off conditions 1-Immobilizer: not active
Starter control: shut-off conditions 1-Starter shift malfunction: not active
Starter control: shut-off conditions 1-Speed: not active
Starter control: shut-off conditions 1-Drivetrain: not active
Starter control: shut-off conditions 1-Speed: not active
Starter control: shut-off conditions 1-RPM aborted starts: active
Starter control: shut-off conditions 1-Engag. duration: not active
Starter control: shut-off conditions 1-Engag. duration aborted starts: not active
Starter control: shut-off conditions 1-Engag. duration panic start: not active
Starter control: shut-off conditions 1-new errors: not active
Starter control: shut-off conditions 1-manual start/error: active
Starter control: shut-off conditions 1-ignition: not active
Starter control: shut-off conditions 1-Clutch error/terminal 50 malfunction: not active
Starter control: shut-off conditions 1-Direct start function: not active
Starter control: shut-off conditions 1-Engag. duration defrost.: not active
Starter control: shut-off conditions 1: 513
Readiness: N/A
-------------------------------------------------------------------------------
