T6.1 barn door to T6 tailgate light - pinout

Craig2001

New Member
Hi there, no matter how much I search I can not find any information on this wiring issue.

I have a t6.1 barn door that I have fit a rail gate to.
The rear wiring has 6 wires on the drivers side and a 6 pin plug and the passenger 5 wires.

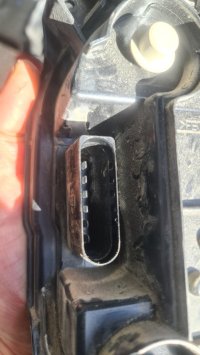

The tailgate rear lights both have only 5 pins inside the connector for 5 wires. I can't for the life of me find any info on the 5 pin wiring diagram.

Any help would be apreadiated20240212_121620.jpg20240212_121611.jpg
