Hi All

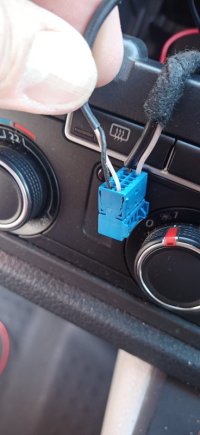

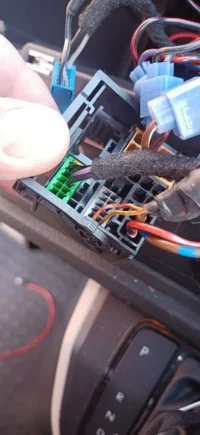

I have a 2017 T6 with discovery media head unit which is camper converted with lifting roof and the aftermarket reversing camera only worked very intermittently, so I decided to investigate and got another camera to try but no change, I checked the wiring behind the head unit and all connections seemed to be secure so started to look at the wiring where it went into the roof ( tailgate model ) as I gently pulled the wire it came away and I realised that the wires had pulled out of some form of connector that I now had no way of accessing. So I want to renew the wiring front to back but don't know what the wires from the head unit should connect to. There is a fused live, a neutral from the back of the Head unit, 2 wires from the blue plug and 2 wires from the grey plug making 6 wires that run through the roof to the rear of the van.

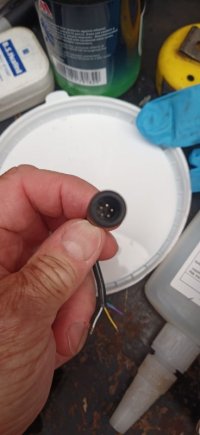

Does anyone know which wires I need to connect to the 5 wires to the camera to get it working, really hoping someone can help.
I have a 2017 T6 with discovery media head unit which is camper converted with lifting roof and the aftermarket reversing camera only worked very intermittently, so I decided to investigate and got another camera to try but no change, I checked the wiring behind the head unit and all connections seemed to be secure so started to look at the wiring where it went into the roof ( tailgate model ) as I gently pulled the wire it came away and I realised that the wires had pulled out of some form of connector that I now had no way of accessing. So I want to renew the wiring front to back but don't know what the wires from the head unit should connect to. There is a fused live, a neutral from the back of the Head unit, 2 wires from the blue plug and 2 wires from the grey plug making 6 wires that run through the roof to the rear of the van.
Does anyone know which wires I need to connect to the 5 wires to the camera to get it working, really hoping someone can help.
