Trim Identification Help!

[Deviant Tubs]

Hi Team..

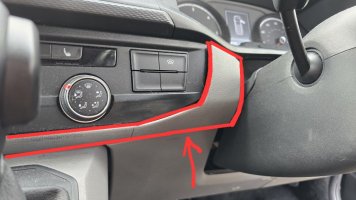

I'm trying to find out what the VW product code is for this piece of T6.1 Cab Trim

Apparently the code can be found printed on the back of it... But that means removing it (attempting to anyway) and trying not to break it..

Which I almost certainly will do



[archersam]

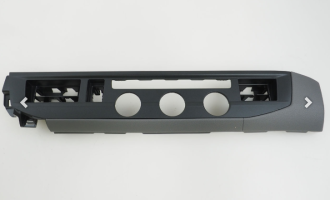

I have one off the vehicle and am away at moment however the black one I think is 7L2857200AOZS so using that you should be able to get to the grey one on something like LLLP parts of vw van parts direct. NOTE: when i went grey to black I had to split mine as the heater controls on my model are a different shape than those that have the black unit.

Van Parts Direct Transporter Trim for Air/Heater Controls (Titan Black) - Genuine VW Commercial Parts

Genuine VW Van Commercial Parts - Cheaper than main dealerships - All parts have a VW Warranty - Shipped direct to your door

vwvanpartsdirect.co.uk

It comes as one unit combined with the surround for the heater controls glued to it. It is not a standalone piece of light grey plastic.



[Deviant Tubs]

@archersam you absolute legend!!

Infinitely better information than VW themselves could give me



[archersam]

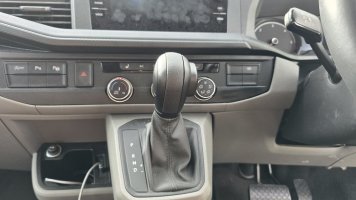

Show a photo of your full heater area and when I am back will show you what I mean



[Deviant Tubs]



[archersam]

View attachment 236304

Ah ok it’s the big behind the knob which differs.

You can see my standard Grey one had some “extensions” around centre knob but the black replacement didn’t.

So I had to split it apart with a dremel to use my standard Matt black with the new anthracite trim.



[Deviant Tubs]

Very nice work there - and yes I see what you mean about the 'extensions'
Do you still have this piece floating around off the vehicle? I'd be interested to know if there's any ID number/code printed on it?



[archersam]

Very nice work there - and yes I see what you mean about the 'extensions'
Do you still have this piece floating around off the vehicle? I'd be interested to know if there's any ID number/code printed on it?

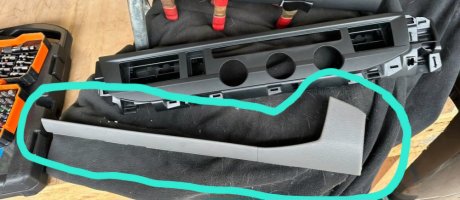

View attachment 236361

That’s all the numbers on it. It’s all hidden when put together so my gut reaction is it’s not buyable on its own.



[Deviant Tubs]

You're an absolute gent. Thank you so much for your help mate. Really appreciated. I'll let you know how I get on



[Deviant Tubs]

I ended up having a chinwag with the guys at VWVanparts - very helpful.

That's the badger I've been looking for

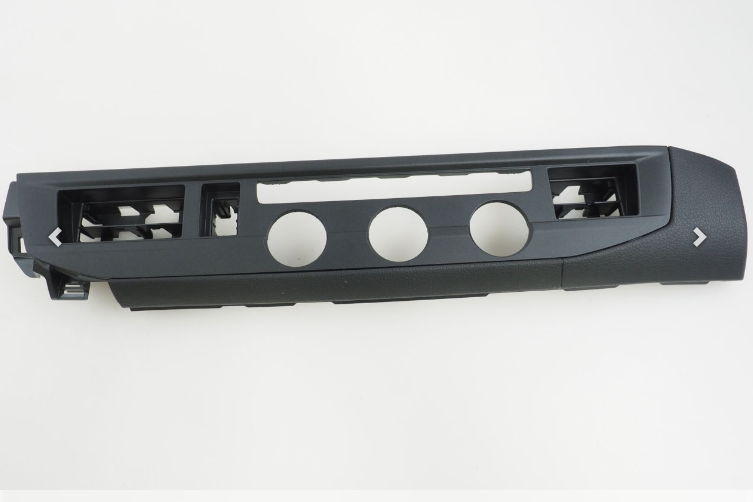

Van Parts DirectVW Transporter 2020 Onwards Trim for Air/Heater Controls (Satin Black/Palladium Grey) 7L2857200A JEQ - Genuine VW Commercial Parts



[archersam]

I ended up having a chinwag with the guys at VWVanparts - very helpful.

That's the badger I've been looking for
View attachment 236472
Van Parts DirectVW Transporter 2020 Onwards Trim for Air/Heater Controls (Satin Black/Palladium Grey) 7L2857200A JEQ - Genuine VW Commercial Parts

Yeh I really have had amazing customer service from there. Nothing seems too much trouble and if they dont have it on the site, they find the details, get it added on the stie then you can order online etc. Sometimes they are cheaper than TPS however not always the case but they deliver and save me a 40 mile round trip to collect or a 20mile trip to collect from my mates bodyshop.

I used them to supply all my lower dash black panels as I didn't want the brushed or other effects that you get in the Velles.



[Deviant Tubs]

Will definitely bare that in mind.
But generally you've put me in touch with some decent people there - thanks again
