VCDS and swapping direct TPMS with the Indirect TPMS transporter T6.1

4x4rob

4x4rob

Member
VIP Member
hi All,

i have searched and asked on the post of the Indirect TPMS programation for the procedure to remove the direct one and was hoping someone could help me, or point me in right direction

here is my story
So firstly i have a few transporters but there 3 identical with direct TPMS and one new without but also diffect HP and layout
The problem is the direct ones cost me a lot in downtime or even when we need to change summer to winter wheels,

one of them has given me TPMS faults since day one, it went in to VW they reset it and it works a while, but now out of guarantee it again has come on on as sensor right back missing... now its done this from almost 15000km, (two years ago)
now at almost 30000km and its come back and we needed van, client refused to take it and i know i was wrong when i even took vcds out (and here is Mr stupid), i started comparing the 3 vans and as it became later i started changing a few boxes, and for the life of me i can not get it back to what it was,

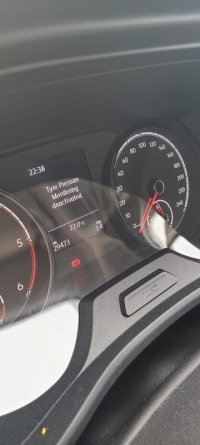

i can not see the presure on the screen anymore,

and what it should look like.

so i looked around how to setup indirect and this can be done, here is the link , T6.1 Tyre Pressure Monitoring System Activation (Indirect TPMS)

in fact i did the procedure it works as i had both on the infotainment screen, but i can not find a procedure to remove the direct system, i dont want to be ilegal at all, i am just so over these direct systems , my other van that has the indirect tpms and it is perfect, we can change winter to summer wheels and just reset, the other 3 always needs the sensors swapped out or replaced?? and we can not fit the 20's on, not that we will but if we sell some clients want the 20's
is there a way this can be done??
i have copied the 4 vans and their codes but the two that have TPMS working have diferent ABS codes, and when i copied the codes to the faulty car it was then where it dawned on me that i am the dumbo of the family... i did swap it back and got all faults cleared, but still at step one,


03; ABS
PROBLEM VAN TPMS 305524524849EE850C5524A8126F7706382020B8
SISTER VAN WITH TPMS 305524524848EE8E0C5C24A812667706382020B8
SISTER 2 VAN WITH TPMS 305524524849EE850C5924A612687706382020B8
5 X SEATER NO direct TPMS 10552752484BE685085CE4AB1266672638202478
Spare older NO Direct TPMS T6 557E409825678480AA7E027FA48421F6780000

17; INSTRUMENTS
PROBLEM VAN TPMS 07A412802080000801082A040401000000200000
SISTER VAN WITH TPMS 07A412802080000801082A040401000000200000
SISTER 2 VAN WITH TPMS 07A412802080000801082A040401000000200000
5 X SEATER NO TPMS 07A40A0A2080000801082A001401000000000000
T6 1503010300


5F: Information Electr
PROBLEM VAN TPMS 066401003C00000041110101008000001F0000C40000010000
SISTER VAN WITH TPMS 066401003C00000041110101008000001F0000C40000010000
SISTER 2 VAN WITH TPMS 066401003C00000041110101008000001F0000C40000010000
5 X SEATER NO TPMS 066401003C00000041110101008100001F0000C40000010000

4x4rob said:

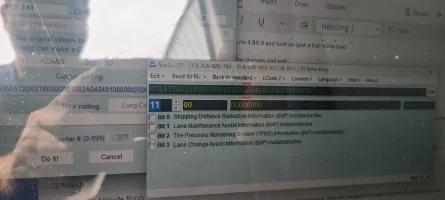

took vcds out (and here is Mr stupid), i started comparing the 3 vans and as it became later i started changing a few boxes, and for the life of me i can not get it back to what it was,
i can not see the presure on the screen anymore,
Click to expand...
Perhaps take the first scan of the van and check the settings in there.
Just in case - backups of the all the VCDS Auto-Scans are stored in folder C:\Ross-Tech\VCDS\Scans - however, the actual folder could be a slighly different for French version VCDS.

All the coding and adaptation changes are recorded in folder C:\Ross-Tech\VCDS\Debug respectively in files CodingLog.CSV and AdpLog.CSV

4x4rob said:
i have copied the 4 vans and their codes but the two that have TPMS working have diferent ABS codes, and when i copied the codes to the faulty car it was then where it dawned on me that i am the dumbo of the family...
Click to expand...
True, you just cannot copy the codes from a van to another - first of all, ABS coding uses vehicle's identification number (VIN) to match the coding to the vehicle - pretty much like fingerprint - there are no two identical ABS codings. Besides the VIN also van's configuration is reflected on the coding - e.g. brake type, wheelbase, engine type, transmission type, 4Motion/diff lock, LHD/RHD, cruise control type, hill hold, hill descent control, etc. Also there are several different ABS controller types installed on T6.1.

So, could you please post
(1) full VCDS Auto-Scans (of all vans)
(2) adaptation maps of controller 5F-Infotainment (of all vans)

mmi said:
Perhaps take the first scan of the van and check the settings in there.
Just in case - backups of the all the VCDS Auto-Scans are stored in folder C:\Ross-Tech\VCDS\Scans - however, the actual folder could be a slighly different for French version VCDS.

All the coding and adaptation changes are recorded in folder C:\Ross-Tech\VCDS\Debug respectively in files CodingLog.CSV and AdpLog.CSV


True, you just cannot copy the codes from a van to another - first of all, ABS coding uses vehicle's identification number (VIN) to match the coding to the vehicle - pretty much like fingerprint - there are no two identical ABS codings. Besides the VIN also van's configuration is reflected on the coding - e.g. brake type, wheelbase, engine type, transmission type, 4Motion/diff lock, LHD/RHD, cruise control type, hill hold, hill descent control, etc. Also there are several different ABS controller types installed on T6.1.

So, could you please post
(1) full VCDS Auto-Scans (of all vans)
(2) adaptation maps of controller 5F-Infotainment (of all vans)
Click to expand...
Thanks mimi for reply. I will do them on Monday as they were already out

@mmi

First scan of problem Van
Code:
Wednesday,24,April,2024,12:19:51:27494
