Voltronic standby charger

[awillyfootball]

Hi I wonder if anyone could help. I have just purchased a Voltronic standby charger and I'm looking for help on how to install it. My current setup is 110ah agm battery with victron dc to dc charger and 200w solar with vicron mppt. I'm not sure which way to wire it up. Is best to go to dc to dc charger or mppt, any help would be appreciated. Thanks



[Dellmassive]

got a pic of the charger?



[awillyfootball]

Yes, here it is.



[awillyfootball]

got a pic of the charger?

Yes here it is.



[Anakin]

Your DC-DC charger will have a positive terminal from the SB and a positive terminal from the LB. Connect your Voltronic to these connections on the DC-DC charger.



[awillyfootball]

Your DC-DC charger will have a positive terminal from the SB and a positive terminal from the LB. Connect your Voltronic to these connections on the DC-DC charger.

Perfect, will take a look. Thanks for the reply



[Dellmassive]

Run a link to the Starter battery.

And the Board (leisure) battery.

Make sure you fuse the battery connection end.

If you have a dc-dc charger, then you can pic up both battery feeds there.



[Pauly]

The unit has no negative connection so i assume your leisure battery would need to be common grounded to the vehicle for it to work properly
Most leisure batteries are grounded to the van but thought is was worth mentioning just in case



[Dellmassive]

The unit has no negative connection so i assume your leisure battery would need to be common grounded to the vehicle for it to work properly
Most leisure batteries are grounded to the van but thought is was worth mentioning just in case

Lol
... Yes those boxes are basic diode, resistor droppers..no smarts.

All you need is a battery link.... With comon neg.

Here's a closer look...

Post in thread '[Guide] DC-DC Charger (for leisure battery) -- How I Done It --'

15 May 2020

well here we go:
once again i done it - so you dont have to. =]
we finally have the true about the Votronic DC-DC stanby charger.

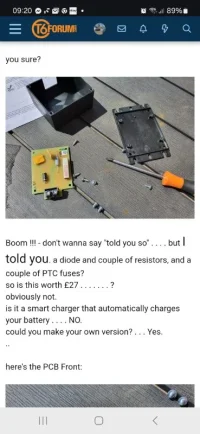

I've always said these must just be diode/resistor based . . . . . . now we find out whats really inside one . . .
this is what the manufactures say . . .

VOTRONIC - StandBy Charger

Innovative Elektronik für den mobilen Einsatz

www.votronic.de

https://www.votronic.de/images/Manuals/10.%20Peripheral%20Units/3065_6065_e.pdf

- automatic recharging and trickle charge of the starter battery or the auxiliary battery,
- this trickle charge is effected automatically...

• Dellmassive

•
•

.


....




.....



[awillyfootball]

The unit has no negative connection so i assume your leisure battery would need to be common grounded to the vehicle for it to work properly
Most leisure batteries are grounded to the van but thought is was worth mentioning just in case

Thanks, will check that out.



[Anakin]

So is the Ablemail a more refined piece of electronics @Dellmassive ? I’m guessing it is as it is programmable.
