512 Relay - Need Electrical Diagram for Testing.

[Catbus]

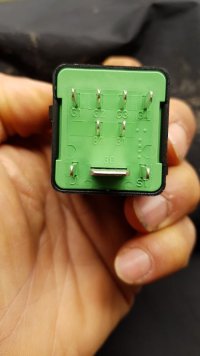

Hello everyone, can someone please help me out. I need to test this relay and there is no electrical schematic diagram printed on this relay. Does anyone have an electrical schematic diagram?


Kind Regards,
Catbus



[Dellmassive]

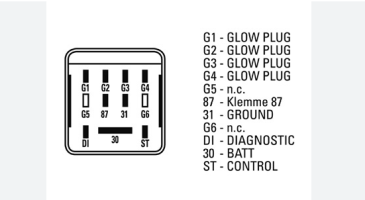

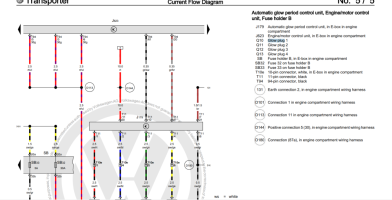

looks like a glow plug relay -0 controlled by the Engine ECU.

J179

G1-4 - glow plug out POS
30 main POS feed
31 ground








+++

++++



[Catbus]

looks like a glow plug relay -0 controlled by the Engine ECU.

J179

G1-4 - glow plug out POS
30 main POS feed
31 ground

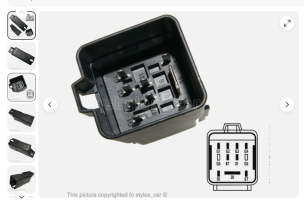

View attachment 245574View attachment 245575View attachment 245576



+++

++++

Hi Dellmassive, thank you for info
