Big brakes upgrade

[JumpShip]

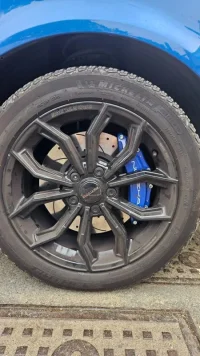

Panamara / macan set-up if you wanna go BIG .

For me 308mm are fine but 340mm would be nice .



[phazer]

I have a set of 340.front brakes to fit to my 2016 t32 shuttle when the original 308 discs wear out. I wasn't aware that a coding mod was required after fitting - can the gurus please confirm and advise?
Many thanks

** EDITED ** @mmi pointed out my original post was T5.1 only, so here's an updated post with both:

** Make sure you save a full scan before modifying, just in case. The values referenced are in the ABS long coding **

T5.1

For the 308 brakes (16 inch chassis) the original values will be Byte 02 = 24, Byte 08 = 24, if so, change to the following for 340mm (17 inch chassis):

Byte 02: 64
Byte 08: 26

T6
Valid for the MK100 ABS with the following part numbers:

SW 7E0 907 379 P HW 7E0 907 379 M
SW 7E0 907 379 Q HW 7E0 907 379 N

For the 308 brakes (16inch chassis) the original values will be Byte 04 = 25, Byte 12 = A4, if so, change to the following for 340mm (17 inch chassis):

Byte 04: 65
Byte 12: A6

Hope that clarifies and apologies for any confusion earlier.

See mmi's comment about the T6.1....guess it'll be a while for any coding info there



[mmi]

T5.1 has MK25A ABS system and T6 has MK100 ABS system. Their codings are not identical.

I'm confident the T6 won't even accept the above (checksum fail). Well, T6 doesn't even have the "24" in the mentioned bytes I'm afraid. Then T6.1 is yet another story, different codings.

Some T5.1 ABS codings were explored here

VW T5.1 being upgraded to T6 4motion running gear

Also could please check what's documented in VCDS Long Coding helper about engine. Would be great for future reference if could make screenshots about those (Alt-PrintScreen, paste into Paint, save into a file... post here) Unfortunately I don't have that data about your engine - but would...

www.t6forum.com



[phazer]

T5.1 has MK25A ABS system and T6 has MK100 ABS system. Their codings are not identical.

I'm confident the T6 won't even accept the above. Well, T6 doesn't even have the "24" in the mentioned bytes I'm afraid. Then T6.1 is yet another story, different codings.

Some T5.1 ABS codings were explored here

VW T5.1 being upgraded to T6 4motion running gear

Also could please check what's documented in VCDS Long Coding helper about engine. Would be great for future reference if could make screenshots about those (Alt-PrintScreen, paste into Paint, save into a file... post here) Unfortunately I don't have that data about your engine - but would...

www.t6forum.com

Ahh ok, thanks for the heads up, I've edited my previous post accordingly. If you spot any issues please let me know
