Clayton Lithium Battery - Want to add Solar

[PhillH]

Out of interest, why is that fuse needed on the PV+ input on the MPPT? I see lots of arguments about if a fuse is needed at all, and Victron has their fuse at the Panel end not near the MPPT, I can see why it is needed there, but then in most installs it would be outside the van.

Hi @Skyliner33 I done it for a bit more protection. I will try and get hold of the wiring diagram that Clayton sent to my friend.



[Mateus]

I also have an gen 1 lps with solar so it’s definitely possible.. i think the gen 2 inbuilt mppt has a lower input max than the gen 1, so depending on how big you want to go - gen 1 could be a better option



[Dellmassive]

got some pics of you setup?



[roadtripper]

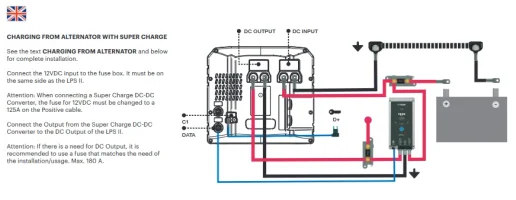

Interestingly this arrangement for an external DC charger is there in the main manuals if you look - it's how they connect the "super charger":



[Dellmassive]

Interestingly this arrangement for an external DC charger is there in the main manuals if you look - it's how they connect the "super charger":

View attachment 226101

thats the LPS2

i was looking at that aswell . . . it shows the DATA conection from the LPS to the SC that a stand alone MPPT wouldnt have.

but as they guys say - it works.

so im assuming the LPS Gen1 doesn't have an internal MPPT like the Gen2 LPS.

but does allow incoming charge via the DC OUT port.

im assuming the internal BMS is dealing with the current flow?

especially as they SoC increases when charging.

...

the LPS1 shows this:

https://www.claytonpower.com/media/fbuluba2/lps-user-manual.pdf

++++++++++++++++

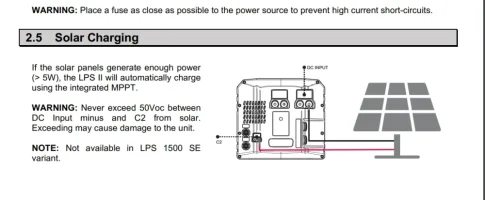

the LPS2 shows the PV. + SC via the DC Out port.



[roadtripper]

I suspect the data port just allows communication so you can see the incoming charge rate - and I assume it may also throttle back the super charger outside of bulk charge periods.



[andylad]

there you go @andylad

there is an option for you.

just add your own solar panel and mppt controller to retrofit Solar to your GEN1 LPS.

thanks - Clayton have just confirmed the same so me thinks we'll stick with the battery and add the panel with MPPT controller



[Skyliner33]

Hi @Skyliner33 I done it for a bit more protection. I will try and get hold of the wiring diagram that Clayton sent to my friend.

Interesting, the only thing that fuse is protecting is the short bit of wire between it and the MPPT controller. Plus it introduces 4 connections which will increase voltage drop.



[Dellmassive]

thanks - Clayton have just confirmed the same so me thinks we'll stick with the battery and add the panel with MPPT controller

Nice.

What did they say then?

What was the reply.



[Mateus]

got some pics of you setup?

sure - will post in the morning



[d8smt]

there you go @andylad

there is an option for you.

just add your own solar panel and mppt controller to retrofit Solar to your GEN1 LPS.

Might be mistaken, but I think the Gen1s have a solar charging input? I'm just about to buy a van with one fitted.
