Amazing!
Can you see the interior shots then? I can only see the first few images in post #1 and none in post #2...
..sod it, have I forgotten to pay the bill, again?
Brilliant work on your transformation. It looks absolutely spot on.
Not the interior, no. The external under-arch shots just struck me how much space there is there when the liners are removed, and how easy it is to get to, to clad in Dynamat or similar. I'd seen a comment in another thread that some of the professionals soundproof the rear tubs from the outside, to preserve the profile from the inside. Just an observation ....
no, you paid the bill correctly
, unfortunately, i'm not a vip member, and i can't modify old posts.in the future i'll become a vippppppppppps and i'll edit and correct the old posts.
is an original wv air duct with fan, on the dash are present two switches for in or out air direction.
Today i'll do some photos about this particular
Not the interior, no. The external under-arch shots just struck me how much space there is there when the liners are removed, and how easy it is to get to, to clad in Dynamat or similar. I'd seen a comment in another thread that some of the professionals soundproof the rear tubs from the outside, to preserve the profile from the inside. Just an observation ....
when I saw the free space under the liner I thought that it could be used to soundproof the arches from the outside, but I didn't have time to do it, the coachbuilder wanted me and my van out of his shop as soon as possible
asap i'll put my van on a lifter, and i'll restore all the underchassis from rusty, in those moment i'll soundproofing the rear arches.
a little upgrade,
after five months of continuous use, now i stop the van to some repairs.
When i bought the van, there was a gearbox trouble, the sixth gear didn't work, anyway i used the van without problems.
Now it's time to fix it!
I take advantage of it for changing oil pump, oil pump belt, the connecting rod bushings, timing belt and water pump.
The engine run really well, but after 350.000km i think is a good idea change this parts.
So yesterday I started to disassemble the front
bumper, headlight, front grille,lock carrier and intercooler was dismantled
now it's the turn of the radiators and the bumper frame
and then engine wiring
now it's the turn of the axles
timing belt cover and engine mount
and finally, engine and gearbox are out of the van
it was harder than I thought, in total i took 6 hours to dismantle everything.
after five months of continuous use, now i stop the van to some repairs.
When i bought the van, there was a gearbox trouble, the sixth gear didn't work, anyway i used the van without problems.
Now it's time to fix it!
I take advantage of it for changing oil pump, oil pump belt, the connecting rod bushings, timing belt and water pump.
The engine run really well, but after 350.000km i think is a good idea change this parts.
So yesterday I started to disassemble the front
bumper, headlight, front grille,lock carrier and intercooler was dismantled
now it's the turn of the radiators and the bumper frame
and then engine wiring
now it's the turn of the axles
timing belt cover and engine mount
and finally, engine and gearbox are out of the van
it was harder than I thought, in total i took 6 hours to dismantle everything.
Due to Covid-19 one month ago, i stopped the works, but i have some photo and upgrade to show you!
after disassemble engine and gearbox, I started to open the engine.
first oil pan!
not bad after 350.000km (about 217500 miles), only old oil, no dirt ( i found only strange plastic particles yellow colored in the oil pump strainer)
after a good clean she's back as new
lovelly!!!
now it's oil pump turn!
even the oil pump was in good conditions, as pistons, conrods, turbocharger, fuel pump and injectors.
as you see the bushings was in very good conditions despite the miles traveled

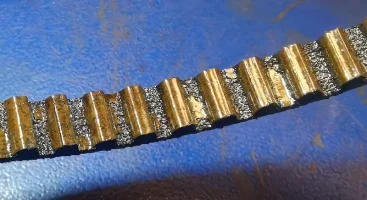

only the oil pump belt was in worst conditions, ready to yield
all the black lines you see are cracks, and i found out what the pieces found in the oil pump strainer were
the belt was crumbling
after disassemble engine and gearbox, I started to open the engine.
first oil pan!
not bad after 350.000km (about 217500 miles), only old oil, no dirt ( i found only strange plastic particles yellow colored in the oil pump strainer)
after a good clean she's back as new
lovelly!!!
now it's oil pump turn!
even the oil pump was in good conditions, as pistons, conrods, turbocharger, fuel pump and injectors.
as you see the bushings was in very good conditions despite the miles traveled
only the oil pump belt was in worst conditions, ready to yield
all the black lines you see are cracks, and i found out what the pieces found in the oil pump strainer were
the belt was crumbling
PLEASE PAY ATTENTION!
about the oil pump belt nothing is written in the user manual as a replacement interval,
the same thing on the workshop manual and on the etka website...
i asked for at the volkswagen reseller, and at the italian importer,
and the reply is the same "the oil pump belt shouldn't be replaced"
now, seeing what I discovered, I did a search and found that several engines at about 400,000 km (about 250000 miles) melt due to the belt breaking
if I hadn't opened the engine,I wouldn't have noticed and in a short time the engine would have broken.
the entire amount (parts and works) is not too much expensive compared to a new engine costs.
the parts we need to do the works is:
oil pump belt : 03L 115 264 A
oil pump : 03L 115 105 B
crankshaft oil seal : 038 103 085 E
crankshaft bolt : WHT 005 322
The oil pump replacement isn't mandatory, but I recommend it, I also recommend changing the distribution kit ( to do the work, distribution and oil pan must be removed)
these parts and this problem plague the engines 2.0 TDI from 2009 to 2015 (CAA,CAAA,CAAB,CAAC) but i think also the next series from 2015 to today (CXG CXGA CXGB) because they are constructively similar.
i really hope this post can help someone.
about the oil pump belt nothing is written in the user manual as a replacement interval,
the same thing on the workshop manual and on the etka website...
i asked for at the volkswagen reseller, and at the italian importer,
and the reply is the same "the oil pump belt shouldn't be replaced"
now, seeing what I discovered, I did a search and found that several engines at about 400,000 km (about 250000 miles) melt due to the belt breaking
if I hadn't opened the engine,I wouldn't have noticed and in a short time the engine would have broken.
the entire amount (parts and works) is not too much expensive compared to a new engine costs.
the parts we need to do the works is:
oil pump belt : 03L 115 264 A
oil pump : 03L 115 105 B
crankshaft oil seal : 038 103 085 E
crankshaft bolt : WHT 005 322
The oil pump replacement isn't mandatory, but I recommend it, I also recommend changing the distribution kit ( to do the work, distribution and oil pan must be removed)
these parts and this problem plague the engines 2.0 TDI from 2009 to 2015 (CAA,CAAA,CAAB,CAAC) but i think also the next series from 2015 to today (CXG CXGA CXGB) because they are constructively similar.
i really hope this post can help someone.
hi guys, some months agò i sold my van... and now i bought another one (used, i'm poor
)
but the story don't change, i'll start to do some improvement and retrofit..
conversion from business to highline dashboard, automatic climatisation, led headlight, front and rear pdc, electric foldable mirrors
so now i ask to admins.... can i start a new post or i must continue in this one?
)but the story don't change, i'll start to do some improvement and retrofit..
conversion from business to highline dashboard, automatic climatisation, led headlight, front and rear pdc, electric foldable mirrors
so now i ask to admins.... can i start a new post or i must continue in this one?
