Its going to be very close but as I say you could chamfer the bottom of the enclosure if it touches the track. Its just whether the leg will touch your speaker grille
Sub-Woofer Enclosures
- Thread starter Vanbus
- Start date
-
- Tags
- eclipse campers hertz ice subwoofer
Thanks, when I get chance I will measure how proud the speaker grill is off the enclosure its in now.
Thanks, looking at that I don't think the grill will fit with the leg. :/
So back to taking leg off?
Looks like its going to be the only way
Alexander4699
Member
@Eclipse Custom Vans: I've been looking at rear arch placed subwoofer enclosures. As these are suitable for the RIB bed, I wonder if they will also fit a 1300mm Titan bed? I've attached the bed dimensions below but can also provide additional measurements if required.
Alexander4699
Member
I also wonder if you could provide the dimensions indicated by the coloured lines - thank you.

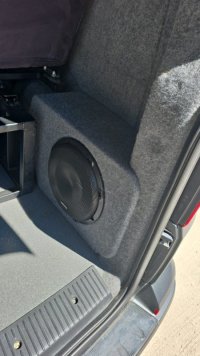

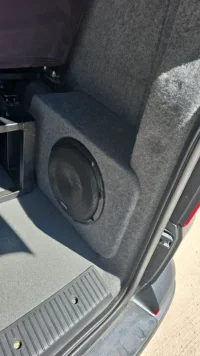

you can see the sub box fitted here, disregard the sound on video as it through a phone, it doesnt sound boomy on real life
as per your image, this is the low box for RIB seats
Red line 425mm
Yellow Line 190mm
Height 330mm
Standard box dimensions:
Red line 375mm
Yellow Line 180mm
Height 471mm
Cheers
The Sub enclosure sits approx 18mm out from the wheel arch, so for the Titan, based on the PDF, the 1300 seat base is 860mm wide, so if it is fitted center of the van there will be a gap of approx 185mm to wheel arch. which is fine as we only need 18mm. However you will likely fit not center so more to near side. you need to know how close to the wheel arch teh bed will sit. This is irreevant iif the frame is further forward than teh psub enclosure, but I cant see form the drawing where this will be.
The height is 35omm to underside of seat, the sub is 330mm high so it has 20mm clearance.
Check with Titan where their seat frame sits in relation to wheel arch, if more than 18mm then it should be ok. However bear in mind the sub normally has a grille on so this will protrude out past the enclosure 20mm ish depending on sub model.
Alexander4699
Member
Thank you for a prompt reply. Could I also ask what the volume of both boxes are and the most suitable 10" subwoofers? I'm favouring something from either Hertz or Audison and nothing that will smash my teeth out.
The low one is 10.3L and standard one is 16.72. We use both Hertz and Audison, and can supply these also for you if needed. We also do a 12" enclosure but likely too large with a seat fitted.
Cheers
Alexander4699
Member
Thank you again for your response. I've just measured and have the following:
IMG_3563 - Shows the area for enclosure to be fitted.
IMG_3565 - Highlights the length from base fitting of Titan bed to inner plastic threshold (full length in IMG_3564) at 590mm.
IMG_3566 - Distance between Titan bed base and wheel arch although given your statement about frame being further forward, the 34mm may be irrelevant.

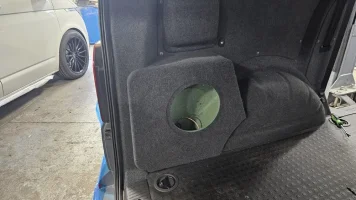

this is larger box so you can se how it sits, image courtesy of @BognorMotors, low one is same length but is lower. heighet 330mm
Alexander4699
Member
280mm - I thought I’d solved my conundrum
the box is 280mm long, if you have 600 to the frame you should be good
