T6 ABS Rear Right Wheel Speed Sensor

[ALevs]

Hi everyone,

I'm new to the forum and hoping for some advice please. I have recently tried to resolve what I thought to be a classic ABS/ESC rear right wheel speed sensor fault by replacing the sensor with a compatible (I think?) RIDEX Plus component (https://www.autodoc.co.uk/ridex-plus/19290962?search=RIDEX PLUS ABS sensor (412W0153P)).

Replacing the rear right sensor cleared the initial faults but leaves me with 'Incorrect competent installed' and the warning lights still active.... The real time monitoring on VCDS also shows that the rear right wheel speed is still not matched with the other three (wildly different), so something still isn't right. I also note the date is no correct post swapping the sensor, is that a problem?

So my question is where do I go from here please?

Many Thanks
Adam

------------------------------------------------------------------------------

Address 03: ABS Brakes Labels: 7E0-907-37x-MK100ESC.clb
Control Module Part Number: 7E0 907 379 P HW: 7E0 907 379 M
Component and/or Version: ESC H06 0133
Software Coding: 517E4098256784818A77027CA48821E6790000
Work Shop Code: WSC 02739 790 50316
ASAM Dataset: EV_Brake1ESCCONTIVN75XGP2 011001 (VN75)
ROD: EV_Brake1ESCCONTIVN75XGP2_011.rod
VCID: 3FDB501D17F574D2361-806A
5 Faults Found:

0087 - Rear Right Wheel Speed Sensor
C101D 4A [008] - Incorrect Component(s) Installed
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 1
Fault Frequency: 32
Reset counter: 35
Mileage: 61516 km

0089 - Rear Right Wheel Speed Sensor
C101D 29 [008] - Signal Implausible
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 4
Reset counter: 33
Mileage: 61708 km
Date: 2023.04.09
Time: 13:06:38

0091 - Rear Right Wheel Speed Sensor
C101D 07 [008] - Mechanical Failure
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Reset counter: 249
Mileage: 62813 km
Date: 2023.04.26
Time: 21:54:13

0095 - Rear Right Wheel Speed Sensor
C101D 29 [137] - Signal Implausible
MIL ON - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 6
Reset counter: 250
Mileage: 61708 km
Date: 2023.04.09
Time: 15:47:01

4199 - Rear Right Wheel Speed Sensor
C101D 14 [008] - Open or Short to Ground
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 18
Reset counter: 35
Mileage: 62316 km

Saturday,06,May,2023,18:46:37:35970
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 11 x64
VCDS Version: 23.3.1.0 (x64) HEX-V2 CB: 0.4631.4
Data version: 20230421 DS346.2
www.Ross-Tech.com

--------------------------------------------------------------------------------
--------------------------------------------------------------------------------
POST SENSOR REPLACEMENT**

Address 03: ABS Brakes Labels: 7E0-907-37x-MK100ESC.clb
Control Module Part Number: 7E0 907 379 P HW: 7E0 907 379 M
Component and/or Version: ESC H06 0133
Software Coding: 517E4098256784818A77027CA48821E6790000
Work Shop Code: WSC 02739 790 50316
ASAM Dataset: EV_Brake1ESCCONTIVN75XGP2 011001 (VN75)
ROD: EV_Brake1ESCCONTIVN75XGP2_011.rod
VCID: 3FDB501D17F574D2361-806A
1 Fault Found:

0087 - Rear Right Wheel Speed Sensor
C101D 4A [137] - Incorrect Component(s) Installed
MIL ON - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 1
Fault Frequency: 1
Reset counter: 3
Mileage: 63240 km
Date: 2075.14.16
Time: 18:41:08



[n10n]

Take this with a grain of salt but the sensor lists compatibility with WHT 003 856 B which would mean it's a bi-directional sensor, although it's not specifically spelled out in part details.

I just recently upgraded both my rear ABS sensors to bi-directional ones as a part of retrofit work and got, I think, the same error, also described here: (Side Assist) / (Blind Spot Detection & Rear Cross Traffic Alert) retrofit

If not going with exact OEM part I would also change both rear sensors - as with most parts it makes sense to keep axles symmetrical.



[ALevs]

Hi everyone,

Thanks for the advice. Just thought I'd let you know I have now bought the specific matching part (https://www.autodoc.co.uk/ridex/8058782) using the OE Number WHT003856. I replaced the sensor once again on the rear right and fault cleared immediately which was very pleasing.

Lesson learnt, buy the right part...



[Vogon42]

Hi all
Has anyone had to drill out an ABS sensor? Changed the right rear a while ago having to tug the broken part out. The left rear has broken inside the hole about 8mm down.
Will any swarf drop down and damage anything?
TIA.



[Paynewright]

I’ve just last week changed one and google suggests they can break off. One post inserted a thinish wood screw and used a pry bar to pull out the remnants. Its just the sensor in a hole with the rotating bit of the hub at the bottom with a load of raised ‘teeth’ to trigger the sensor.



[Johny]

Hi all
Has anyone had to drill out an ABS sensor? Changed the right rear a while ago having to tug the broken part out. The left rear has broken inside the hole about 8mm down.
Will any swarf drop down and damage anything?
TIA.

Faulty wheel speed sensor [Replaced]

I received a number of warning lights including: Stability Control - ABS - TPMS - Front Assist - ACC Scan showed the following; Address 03: ABS Brakes (J104) Labels: 7E0-907-37x-MK100ESC.clb Part No SW: 7E0 907 379 Q HW: 7E0 907 379 N Component: ESC H06 0133...

www.t6forum.com



[n10n]

That was one long dremel session… dremeling lifted bits of plastic upwards. I was then able to get little bit of grasp of them with needlenose pliers and eventually got the lip out. Soaked with wd40 of course.



[CarreraRSR]

What many how to’s don’t tell you is to take the rubber cover off the inside of the hub and push out the sensor….. I found this out after fighting the broken stub with drills and screws for half an hour. Then noticed the cover, pushed and it popped out without issue. For sure my fight from above May have helped loosen it. But no one said go from this inside. I guess if you have 4motion then not so simple.



[Vogon42]

Thanks guys, food for thought.



[Snowy22]

Easiest way is what @CarreraRSR says. Pop the black plastic bit off the back of the hub and you can see the bottom of the sensor poking through. A flat bladed screwdriver on it and give it a few taps with a hammer and they normally release easily.



[Vogon42]

Can’t see the black plastic bit on mine, 4motion, but heated screw and claw hammer worked !!
Thanks all.



[Snowy22]

Ah yeah 4motion would be different, sorry I didn’t see the above message. Glad you got it sorted though mate



[Rhodders]

Ah yeah 4motion would be different, sorry I didn’t see the above message. Glad you got it sorted though mate

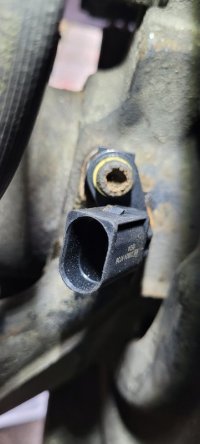

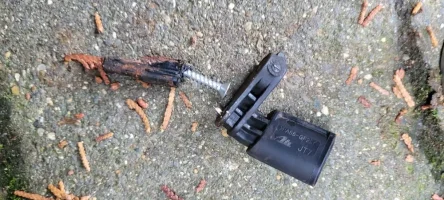

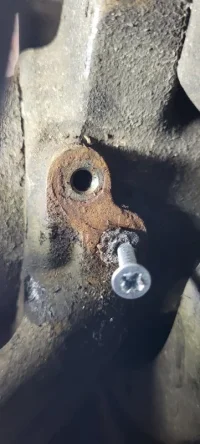

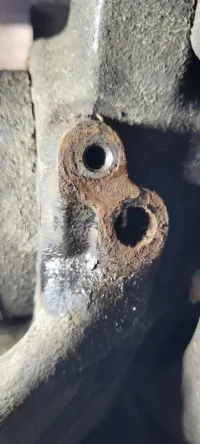

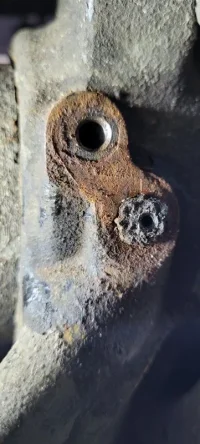

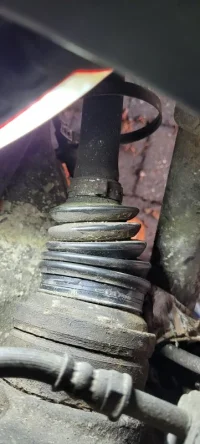

I have a 4 motion and one of my rear sensors went. In true fashion the sensor snapped off as I was prising it out. My first thought was to drive it out with a drift from below but on a 4M it is concealed with a tough rubber/composite collar which the cv boot is then fixed to with a hose type crimp clip. See photo. I took this off boot off and it pi**ed out EP90, and I didn't fancy trying to pry off the tough collar - no knowing how it mates to the hub-if its just held on a lip or if possible... so i reevaluated and went back to the top approach and soaked the stub in WD40 before driving a wood screw into the plastic stub where it had snapped, and pryed it out with a claw hammer. I tried to clean out the hole as best I could with brake cleaner then fitted the new sensor with some copper slip grease on the mounting part.
