T6 [Guide] To T6.1 BARN-DOOR TAIL-LAMP UPGRADE -- How I Done It --

[Norton j]

Hi could you tell me why the top of the lights only light sometimes in the photo’s ? Is that part only for brake? I’ve seen a few t6.1 with that lit all the time.

Did you get an answer to this question or find out please.



[TheGrapeEscape]

I've ordered these lights, so after scrolling and re reading this, I've tried to simplify it all for anyone else.

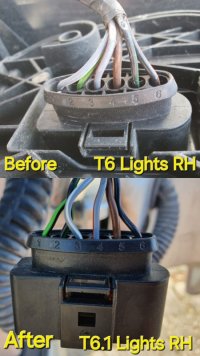

T6/T6.1

RH

1 grey/white (fog) < - > green/black (reverse)
2 green/black (reverse) < - > black/green (indicator)
3 grey/red (tail) < - > grey/white (fog)
4 brown (earth) < - > grey/red (tail)
5 black/green (indicator) < - > brown (earth)
6 black/red (brake) < - > black/red (brake)

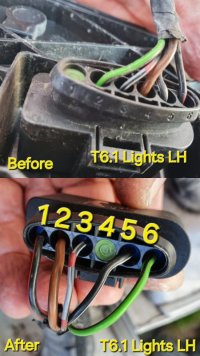

LH

1 green bung/ < - > black/red (brake)
2 green/black (reverse) < - > brown (earth)
3 grey/red (tail) < - > grey/black (tail)
4 brown (earth) < - > fog (not connected)
5 black/green (indicator) < - > black/white (indicator)
6 black/red (brake) < - > green/black (reverse)



[Norton j]

Hi good diagrams etc however still unable to illuminate the upper half of the rear lights. I have been told this is due to the 6.1 Cambus etc.
