Towbar wiring patch schematic

[byronvwt6]

Hi
I've acquired a towbar without the wiring loom
The bar is all fitted up but I can't buy the wiring kit separately other than direct from VW at a silly price. The van is prewired for towing so I just need to make up the patch which plugs into the 8 and 12 pin VW body plugs.

Does anyone have a diagram of the wiring for the adaptor loom
That's it in the pic on the right ( well kind of...the small plug is 8 pin VW on the loom)
Thanks



[Paynewright]

Is this it…..(Westfalia make the VW OEM tow bar kits). My Westfalia kit came from PF Jones but the ‘no towing prep’ version. A call to them should hopefully confirm the wiring kit you need.

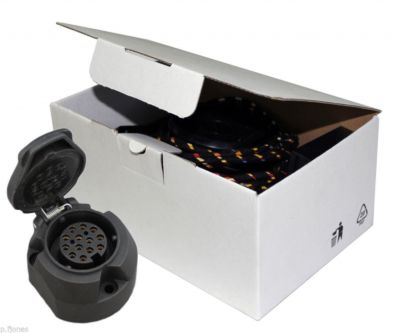

Westfalia Towbar Wiring For Volkswagen T6 Transporter 15-19 13 Pin Wiring WTP | eBay

Towbar wiring. Towbar accessories. Towbar fitting. Towbar Accessories. Vehicle Model: T6 Transporter. Vehicle Manufacturer: Volkswagen. If your vehicle is under warranty a Dedicated Electrics kit is the best option.

www.ebay.co.uk



[byronvwt6]

I’m in Australia. The freight alone is £300!
Hence I just need a wiring diagram of the connection patch. Thanks anyway



[Loz]

You will also need the trailer module.
Some terminal definitions to get you going..
FL = Tagfahrlicht = Daytime Running Light
NL = Nebelleuchte = Fog Lights (Front)
NSL = Nebelschlussleuchte = Rear Fog Lights
KZB =license plate illumination
Lighting
- 55 - Fog lamp
- 56 - Headlamp
- 56a - High beam, high-beam indicator lamp
- 56b - Low beam
- 56d - Headlamp-fl asher contact
- 57a - Parking lamp
- 57L - Parking lamp, left
- 57R - Parking lamp, right
- 58 - Side-marker, tail, license plate, and instrument panel lamps
- 58b - Dimmer
- 58d - Dimmer
- 58L - License-plate lamp, left
- 58R - License-plate lamp, right

How to read wiring diagrams

I'm hashing out a video on this topic, so this is sort of a dry run kind of thing.... So, what does all this mean? Lets break it down into smaller pieces The numbers along the bottom are the "Current Tracks" The more information in a given wiring diagram, the higher up the Current...

forums.ross-tech.com



[byronvwt6]

Thanks Loz
I dont need a module, the van is tow bar ready so no wiring from the front of the van at all.
I can work out all the light connections at the plug no problem.....it's the patch wiring that I need, the integration of the 8 and 12 pin plugs already wired up into the 7 pin trailer plug. Have a look at the loom in the pic that's what i need pls
