victron pheonix 1200 or Renology 1000w?

[Pauly]

Personally i would be finding out what the actual mains voltage rating of the microwave is (not just the 700W microwave power) and deciding from there, no point over specifying and spending more than you need too



[Dellmassive]

The recommendation is 100ah of lithium per 1000w inverter.

So that means 200ah for the 2000w.

The reasons are two fold...

Usually the max discharge rate of a 100ah lithium is 100A, so you would need two battery's to provide 100-200A.

The second reason is run time... When pulling large loads you need good ah capacity.

...


Most ppl that run microwaves off-grid will have 200ah of lithium and 2000w inverter.



[Dellmassive]

What battery is your 110ah ?



[djgriff]

What battery is your 110ah ?

Its a Gel carbon acid battery, so in reality, I only have 55ah available which is looking like a bottle neck. Maybe i should leave out the microwave for the time being. So many more things to consider than," oh im gonna whack in a microwave" haha

As regards to run time i would be looking only 4 min runs like 2/3 times a day at max. very light usage



[djgriff]

Personally i would be finding out what the actual mains voltage rating of the microwave is (not just the 700W microwave power) and deciding from there, no point over specifying and spending more than you need too

Sorry for being thick my side , but what do you mean by mains voltage, I think it is standard 230/240v.
cheers



[djgriff]

if I'm right in my thinking the microwave should only use 5.17a based on the calculations that it will actually use 70% more power than stated. interesting read here: Here
So I am thinking I should be able to get away with the pheonix 1200 or 1200w inverter. I think if I use the microwave a lot then i will screw the battery good and proper (good excuse to upgrade to lithium ) however I think it should be doable unless I'm missing something.

Maybe what i should be thinking is to save up get 200ah of lithium and 2000w inverter to be safe from blowing something or starting fires

Thanks for all the help



[Dellmassive]

Its a Gel carbon acid battery, so in reality, I only have 55ah available which is looking like a bottle neck. Maybe i should leave out the microwave for the time being. So many more things to consider than," oh im gonna whack in a microwave" haha

As regards to run time i would be looking only 4 min runs like 2/3 times a day at max. very light usage

Yeh that's just a standard SLA battery.

You will have trouble running a 1000w inverter off that.... What will happen is the voltage will sag as you start pulling high current..... That will then trigger the inverter low voltage shut down.

And as you say 110ah SLA = 55ah due to dod.

So the 100ah lithium for the 1000w inverter would equal two of those SLA battery's....



[djgriff]

Yeh that's just a standard SLA battery.

You will have trouble running a 1000w inverter off that.... What will happen is the voltage will sag as you start pulling high current..... That will then trigger the inverter low voltage shut down.

And as you say 110ah SLA = 55ah due to dod.

So the 100ah lithium for the 1000w inverter would equal two of those SLA battery's....

Thanks, definitely looks like I need to upgrade my system then. Shame, but just what it is another learning curve. Thanks for helping me get this right, super appreciated!



[djgriff]

Is there any preferred configuration for multiple lithium batteries in a t6, currently have under seat setup. Would it be rear cupboard position or one under passenger and one under driver seat. Cheers



[Dellmassive]

Have you seen the Roamer range?..

I'm running a 230SB .

It's a 230ah lifepo4

Roamer LiFePO4 Gen2 230Ah Seatbase battery -- "How I Done It" --

Roamer LiFePO4 Gen2 230Ah Seatbase battery -- "How I Done It" -- Its a Lithium LifePo4, its got massive capacity @ 230Ah, its got massive discharge performance 250A/500A, its Bluetooth, its a Roamer !!, its exciting . . . . . its coming soon - the full test . . . . ...

www.t6forum.com

.



[Dellmassive]

You should be able to fit two Renogy smart lithium under the seat.. as you can fit them standing up.


Or fit them in the rear?



Have a look here for some ideas....

Seat Base Electric + EHU + Solar Install + Charger + DC-DC -- How We Done it --

Seat Base Electric + EHU + Solar Install + Charger + DC-DC -- How We Done it -- id like to build a thread showing what's possible as regards to seat base builds. lets post a collection of our electrical installs, be it in the seat base or rear conversion. just EHU or SCR/VSR, charger, DC-DC...

www.t6forum.com

.



[djgriff]

You should be able to fit two Renogy smart lithium under the seat.. as you can fit them standing up.


Or fit them in the rear?



Have a look here for some ideas....

Seat Base Electric + EHU + Solar Install + Charger + DC-DC -- How We Done it --

Seat Base Electric + EHU + Solar Install + Charger + DC-DC -- How We Done it -- id like to build a thread showing what's possible as regards to seat base builds. lets post a collection of our electrical installs, be it in the seat base or rear conversion. just EHU or SCR/VSR, charger, DC-DC...

www.t6forum.com

.

Thanks, appreciated!



[djgriff]

Have you seen the Roamer range?..

I'm running a 230SB .

It's a 230ah lifepo4

Roamer LiFePO4 Gen2 230Ah Seatbase battery -- "How I Done It" --

Roamer LiFePO4 Gen2 230Ah Seatbase battery -- "How I Done It" -- Its a Lithium LifePo4, its got massive capacity @ 230Ah, its got massive discharge performance 250A/500A, its Bluetooth, its a Roamer !!, its exciting . . . . . its coming soon - the full test . . . . ...

www.t6forum.com

.

This is one nice looking battery, price is what it is but I guess it will last a good 15yrs or so. Also like the look of the 10 yr warranty. Thanks for the recommendations!



[Dellmassive]

Yep.

The 230SB is an awesome Lifepo4 battery.....

I've got a Roamer Gen2-V2 ready to drop in this week. (I've got a Renogy 100ah under the seat ATM while I had some work done)

Steve from Roamer Battery is on here as,

@RoamerBatteries

Roamer - Premium LiFePO4 lithium Leisure Batteries

Roamer SMART4, XTREME and HOME - the next generation in 12v 24V and 48V LiFePO4 lithium leisure batteries for campervans, motorhomes and boats. From 100Ah to 460Ah capacity with Bluetooth BMS, Victron GX integration, Active Balancing and low temperature charge protection. 5 Star UK support, 10...

roamerbatteries.com

..



[DXX]

Looking at buying a 1000w Renogy inverter.
Renogy website even with discount is more expensive than the Ebay offering from Renogy.
Is there a catch? Warranty looks to be the same.



[Dellmassive]

interested in a cheap Renogy 2k inverter?

For Sale - @Dellmassive - List of SALE items & Garage Clear-out

@Dellmassive - List of SALE items & Garage Clear-out this thread is for me to list our "For Sale" bits, as listing them on my thread is getting a bit long. . . so ill keep adding to this list with new kit that will be for sale: Mods - please keep this live . ...

www.t6forum.com

.



[DXX]

interested in a cheap Renogy 2k inverter?

For Sale - @Dellmassive - List of SALE items & Garage Clear-out

@Dellmassive - List of SALE items & Garage Clear-out this thread is for me to list our "For Sale" bits, as listing them on my thread is getting a bit long. . . so ill keep adding to this list with new kit that will be for sale: Mods - please keep this live . ...

www.t6forum.com

.

I saw yours is up for sale but my Valence power pack is too small to drive it.



[Skyliner33]

Is there a consensus as to which is better, Victron or Renogy?



[DXX]

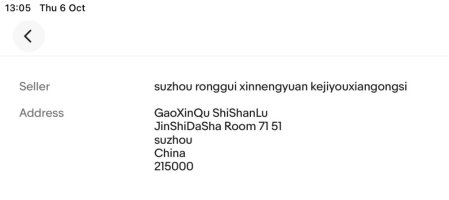

Maybe that’s why it’s cheaper on Ebay, the sellers name appears to be Renogy (Renogy Solar UK) but…..



[djgriff]

@Dellmassive With the roamer do i need to charge it prior to putting into the van or is good to go?
thanks
Daniel
