5F error after installing Alpine Sub

[DubHaus]

I've just wired in and fired up my alpine sub and now I'm showing the following error in the 5F module

-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794) Labels:| 5G0-035-MIB-ENT2.clb
Part No SW: 3CN 035 869 A HW: 3CN 035 869 A
Component: MU-E-D-ER 720 0920
Serial number: 18052100021852 Dataset Number: V03935343RV 0001
Coding: 06570000AA00000041110101008000001F0000C60000010000
Shop #: WSC 00012 790 00028
ASAM Dataset: EV_MUEnt4CGen2LGE 001044
ROD: EV_MUEnt4CGen2LGE_VW27.rod
VCID: 44D142045E1507DA4BB-8010

4 Faults Found:
0512 - Rear Right Bass Speaker
B1067 13 [00001001] - Open Circuit
[Tieftonlautsprecher Kanal 1: Unterbrechung (DC-Diagnose)]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 46
Mileage: 37530 km
Date: 2024.04.18
Time: 16:53:33

Voltage terminal 30: 13.8 V

0517 - Front Right Bass Speaker
B1062 13 [00001001] - Open Circuit
[Tieftonlautsprecher Kanal 2: Unterbrechung (DC-Diagnose)]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 46
Mileage: 37530 km
Date: 2024.04.18
Time: 16:53:33

Voltage terminal 30: 13.8 V

0522 - Front Left Bass Speaker
B105F 13 [00001001] - Open Circuit
[Tieftonlautsprecher Kanal 3: Unterbrechung (DC-Diagnose)]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 46
Mileage: 37530 km
Date: 2024.04.18
Time: 16:53:33

Voltage terminal 30: 13.8 V

0527 - Rear Left Bass Speaker
B1065 13 [00001001] - Open Circuit
[Tieftonlautsprecher Kanal 4: Unterbrechung (DC-Diagnose)]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 46
Mileage: 37530 km
Date: 2024.04.18
Time: 16:53:33

Voltage terminal 30: 13.8 V
----------------------------------------------------------
Does anyone know the vcds coding to remove checking for speakers?



[Deaky]

I don't think there is one. Just ignore the fault.



[DubHaus]

Cheers @Deaky error codes messing with my OCD



[Deaky]

Cheers @Deaky error codes messing with my OCD

Messes with mine too. If you're that bothered you can fit some sort of ballast resistor to fool the HU into thinking speakers are connected instead of an amp.



[DubHaus]

Messes with mine too. If you're that bothered you can fit some sort of ballast resistor to fool the HU into thinking speakers are connected instead of an amp.

Might just have to do that another job added to the list!



[n10n]

Does anyone know the vcds coding to remove checking for speakers?

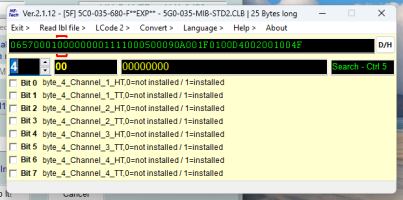

They will not be checked when coded as not installed in byte 4. Still, sound is output at line level (low) at least when byte 11 is 0x05 (sound system external booster).

Disclaimers:

• Mine is Discover Media with 6 speaker setup, no sub - seems different headunit to yours, not sure if settings are the same
• I have 4 channel amp in "low" input mode, ie line level (Focal Impulse 4.320)
• No speaker emulators or any other boxes needed in between headunit and amp
• After installing the amp, I got open circuit faults from all speakers until resolved through clearing byte 4



[n10n]

They will not be checked when coded as not installed in byte 4. Still, sound is output at line level (low) at least when byte 11 is 0x05 (sound system external booster).

Little bit more information from Audi World, I suppose passive crossovers used by VAG change the overall impedance of the speaker the headunit sees and hence there’s separate bits for treble and bass speakers installed.

The post kind of suggests byte 4 bits don’t have anything to do with if sound is actually output. But I haven’t tested this personally except with external amp installed.

Audi Sound System what are my upgrade options? - AudiWorld Forums

Audi A5 / S5 / RS5 (B9) - Audi Sound System what are my upgrade options? - Due the way options are packaged in the UK, I couldn't just tick the B&O option without being forced into the Comfort and Sound package - which I absolutely didn't want. So first of all, where are these 10 speakers on an...

www.audiworld.com



[DubHaus]

Little bit more information from Audi World, I suppose passive crossovers used by VAG change the overall impedance of the speaker the headunit sees and hence there’s separate bits for treble and bass speakers installed.

The post kind of suggests byte 4 bits don’t have anything to do with if sound is actually output. But I haven’t tested this personally except with external amp installed.

Audi Sound System what are my upgrade options? - AudiWorld Forums

Audi A5 / S5 / RS5 (B9) - Audi Sound System what are my upgrade options? - Due the way options are packaged in the UK, I couldn't just tick the B&O option without being forced into the Comfort and Sound package - which I absolutely didn't want. So first of all, where are these 10 speakers on an...

www.audiworld.com

Thanks @n10n That's sorted the fault code perfect @Deaky resolution for OCD



[Deaky]

Thanks @n10n That's sorted the fault code perfect @Deaky resolution for OCD

I took a more drastic route and spent a grand on a new HU



[MK2Golf24v]

just ignore it.

Or fit a USS4 device inline
