ACC & City Braking - How Its Done -

[Robert]

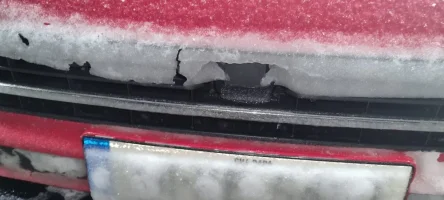

Up here the uncovered one works remarkably better than the covered ones. Thanks to the heater snow and icy conditions are not a problem as for the vehicles having sensor hidden behind cover/emblem.
View attachment 97213
View attachment 97276

My radar heater also works perfectly.
I got a chance to verify this over a very long drive this winter.
It didn't get affected/blinded by the snow nor the ice even once.

Only 7E0 radar (T6 variant) of a 7N0 radar family is equipped with a heater.
Caddy, Sharan, etc. don't get this amazing functionality. Credit goes to @dnoermann



[Robert]

ACC & City Braking - How Its Done -

All DSG equipped T6 with factory ACC are "Follow To Stop" version. Is your ACC retrofit going to work: "Follow To Stop" or "Stop & Go"? I know that supposedly Electronic Parking Brake is required for "Stop & Go" functionality of ACC system but is it really necessary?

www.t6forum.com

Yes, I could and I can

NEED FOR SPEED "T6"



[mmi]

NEED FOR SPEED "T6"

But does it actually work in the upper range ? Perhaps yet another video - with fuel consumption display on
Indeed another amazing retrofit @Robert - I do hope you can resist any temptations of T6.1 for a few more years.



[Robert]

Yes, it does work across the range 30-210km/h.
PQ25 ---> FOREVER
Until I get on German autobahn this video shall be good enough

If anyone wants this upgrade I can help.



[Robert]

BIG THANKS to Dennis

He is the best !!!



[JorgeOli]

Awesome, how did you make that information on cluster about speed, turbo pressure and RPM? Looks great!



[Robert]

Have a look below.

DAKU'S VAG CONTROLLER for PQ25

ADDITIONAL BLUETOOTH ICON Quick demo video. This is demonstration of just one (of many) amazing functions which come with @Daku's controller connected to Instrument Cluster CAN-BUS. Basically when a mobile phone is connected to the vehicle OEM hands free kit the BLUETOOTH ICON is being...

www.t6forum.com



[JorgeOli]

I talked to Daku after Christmas and he sent me a website. I have VCP, can work on it and help improving. I want to buy it, looks awesome and since I'm on 1109, should be able to activate Side Assist LED and maybe in the future if i change one day, 7n0 Front Assist icon. For now I'm keeping 3AA. Thanks to dnoermann for helping.



[big176]

I see hazzy days are offering acc now for 4 grand



[dnoermann]

Very interesting.

1500 for Manual Gearbox
4000 for Automatic

I guess they got something very wrong.
Even if they think that the ABS needs to be chaged for Automatic (what is not the case) than 2500 more is just very very very lot for changing the ABS (which is not needed) ....

When i find time i will write a better guide how to self retrofit, but yes there are people who cant do it or who dont have the time, and they need this service,



[Lez78]

Very interesting.

1500 for Manual Gearbox
4000 for Automatic

I guess they got something very wrong.
Even if they think that the ABS needs to be chaged for Automatic (what is not the case) than 2500 more is just very very very lot for changing the ABS (which is not needed) ....

When i find time i will write a better guide how to self retrofit, but yes there are people who cant do it or who dont have the time, and they need this service,

Nice! I have the T6 ACC radar, loom, mfst, fir my T5.1... just looking for the Airbeg module.
Can I use T6 brake lines to install ABS? Or I will need adapter like you did Dennis?



[dnoermann]

Can I use T6 brake lines to install ABS? Or I will need adapter like you did Dennis?

If you change all brake lines from Start to End than you can use the ones from T6. That would be defenite the better solution.
But i looked under my car and i would say i have to disconnect a lot, like the Engine and the Gearbox to get the brake lines changed .....
So i choose this messy solution:



[Lez78]

If you change all brake lines from Start to End than you can use the ones from T6. That would be defenite the better solution.
But i looked under my car and i would say i have to disconnect a lot, like the Engine and the Gearbox to get the brake lines changed .....
So i choose this messy solution:

View attachment 141223

I go with the messy one then... I did ABS upgrade on Golf 5. That was easier, only two front line.



[Lez78]

If you change all brake lines from Start to End than you can use the ones from T6. That would be defenite the better solution.
But i looked under my car and i would say i have to disconnect a lot, like the Engine and the Gearbox to get the brake lines changed .....
So i choose this messy solution:

View attachment 141223

Right hand drive a bit different...



[Shadow109]

I am also in the middle of changing the ABS pump

This might help you when repining the wires



[Lez78]

I am also in the middle of changing the ABS pump

This might help you when repining the wires View attachment 142472

Thanks, funny to have J500 on the ABS module...



[Shadow109]

Thanks, funny to have J500 on the ABS module...

Its an option for the caddy



[dnoermann]

Thanks, funny to have J500 on the ABS module...

J500 is getting Speed info from ABS via this Data Signal.



[Lez78]

J500 is getting Speed info from ABS via this Data Signal.

Yes, I know The Caddy from 2015 using same ABS as T6, but Caddy before 2015 using 1K0 ABS... I wasn't aware T5.1 ABS in Caddy....



[Shaun Witts]

I’m out in Europe for a ski holiday, and on the drive down I stopped in to see @dnoermann. After I left his place, I had a fully functional ACC facility on my van that has since been tested at various distances at up to 90 mph and all seems to be working well. I’ll probably test it at higher speeds on the way back to Rotterdam in a week. He was a pleasure to deal with and I am very happy with having ACC at long last. Thank you @dnoermann .
I hope he likes the Brewdog IPA that I left him!
