Fridges & Cold Beer -- How I Done It --

Found this on Alibaba, although postage appears more than the actual item.

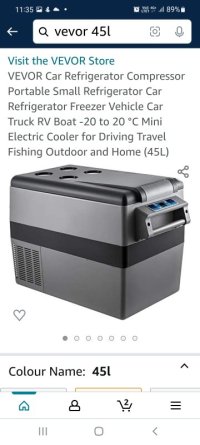

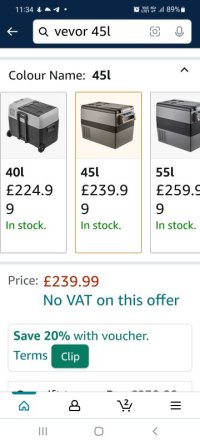

I can’t decide between the Vevor 45L which is a bigger single basket and very small freezer, or the Alpicool T50 with the 2 similar size compartments. I don’t expect to use a freezer much so think T50 would be more useful, anyone had the same thoughts and offer advice?

I can’t decide between the Vevor 45L which is a bigger single basket and very small freezer, or the Alpicool T50 with the 2 similar size compartments. I don’t expect to use a freezer much so think T50 would be more useful, anyone had the same thoughts and offer advice?
the divider can be removed in the T50...

So I’ve just bit the bullet and bought this off Amazon £192 with the 20% off, which is an absolute bargain! Got the 300w inverter to try out too :)

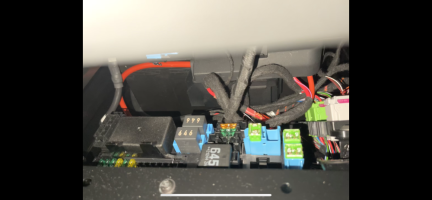

Question: I have a 75Ah leisure battery and CFU terminal block, which was fitted from the factory, as far as I’m aware it was an option needed to run in conjunction with the OEM parking Aux heater.
Would the leisure battery handle both the aux heater fans and the fridge or should I get a portable battery box as a backup?
If it can, would it be a case of running straight from a fuse on the terminal block?

Edit: Had a read back through the thread with it being an AGM battery, half of 75Ah is definitely not going to be enough :confused:



Last edited:
Ding Ding . . . Happy Dayz.

Its new Fridge time . . . . . . . . again. (2022 upgrade)

This time the Awesome - DOMETIC CFX3-35




About this item​

  • The Dometic CFX3 35 is the ultimate powered cool box with impressive cooling
  • Enjoy reliably fresh food and cold drinks thanks to the VMS03 variable-speed compressor cooling tec
  • Its optimised software ensures superior cooling, freezing and energy efficiency
  • The Dometic CFX3 35 cool box features durable and lightweight fender frames to protect the cool bo
  • The strong, spring-loaded aluminium handles make it easy to lift and transport






+++++++

I had my eye on these as soon as they were released the other year. . . . but with a £800+ retail price they were way too rich for me,

in the meantime id kept an eye on Ebay etc for a better priced unit - hoping for a maybe.

Lucky for me T6F come up trumps with a fellow member selling one in the SALE section on T6F . . . .

.

so . . . .

.

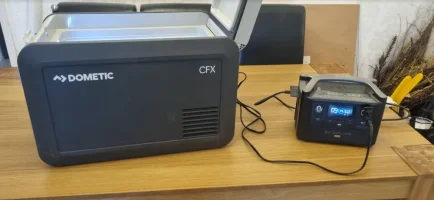

I Purchased from said fellow T6F member recently and had it under test for a while, , ,



size wise its very similar to all the other 35/40/50L fridges, they all normally have the same footprint but get progressively higher as the volume sizer increases.

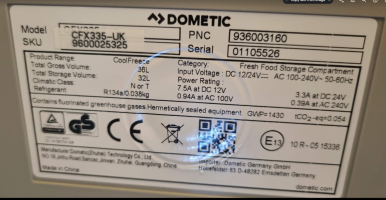

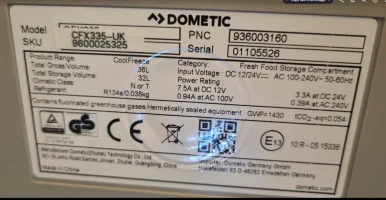

spec plate:

.

They have ALU sprung loaded handles at either end that feel good and chunky.




.




they have continued the power connection method over from the previous generation, with a built in 240v PSU, (so no power brick to drag around)

so you just get a mains cable and a 12/24vdc cable.




this time we get a cracking new display, and the USB charge port too..

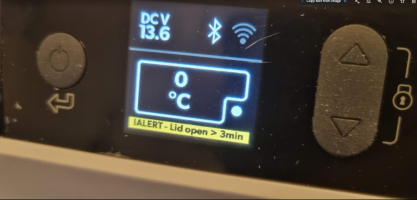

the screen is a massive upgrade form last time.

it shows you the AC/DC connection method and DC voltage.

it give you access to the menu,

it has WIFUI ab BT.

it show you when the compressor is running,

if the lid is open,

and any alarms.

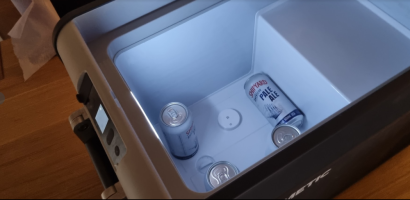

inside we have the standard layout of main section and upper section, plus a nice LED light,

the lid is removable, but not adjustable.



plugging it in we can see it draws around 70w when the compressor is 100% . . . then throttles back to 0w when idle.

this show the same on AC and DC.




The menu system allows various settings as you would expect . .




But this time we have a Decent APP to . . .

over on the Play store we can get . . . DOMETIC CFX3 - a dedicated APP for the new range of CFX3 fridges . .


..

install the APP, Pair the phone - job dome.




The APP sown some useful info . .

current battery voltage or AC modes,

lid open or closed,

compressor on/off

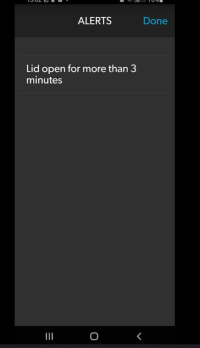

any alarms,

you can change all the settings from the APP to . . . which is nice.

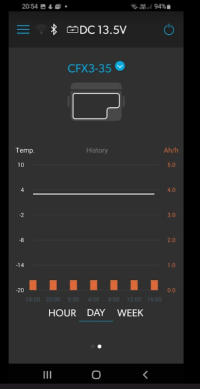

one new feature that i love is the power usage monitor . . .

it shows the hour/day/week power plots. . .

power used in Ah/h & the internal fridge temp in DegC/F



Very High quality . . . . but with a high price tag to match . . .




..........


power wise, I've been keeping the Beers cold for 3days now running of this Ecoflow power pack . . ( well these four Pale Ales & a temp sensor)


The compressor is very quite, but audible when ruining at full blast.

The comptroller ramps the power up/down very gradually . . . so you never notice a hard ON/OFF of the compressor its always very gradual.


.

Conclusion, - a top quality fridge that comes highly recommended. . . (with a useful phone APP )



They do a cover for it thats been ordered, watch this space for that update.





edit:

the only thing i don't like is that the APP history DATA clears when you power off the fridge. . .

The Fridge don't sore any data . . . nor does the APP.

that's a disappointment, but an easy fix with APP programming . . . for example just swapping from AC to DC during testing was enough to loose the whole weeks data . . . . GRRR.

i think they could at least add a calendar feature to the APP and start logging data from the fridge . . . so you have history to review.

instead - you loose everything if the fridge is powered down.

not a deal breaker - just an annoyance and probable oversite from the APP developers.






end

Last edited:
So I’ve just bit the bullet and bought this off Amazon £192 with the 20% off, which is an absolute bargain! Got the 300w inverter to try out too :)
Question: I have a 75Ah leisure battery and CFU terminal block, which was fitted from the factory, as far as I’m aware it was an option needed to run in conjunction with the OEM parking Aux heater.
Would the leisure battery handle both the aux heater fans and the fridge or should I get a portable battery box as a backup?
If it can, would it be a case of running straight from a fuse on the terminal block?

Edit: Had a read back through the thread with it being an AGM battery, half of 75Ah is definitely not going to be enough :confused:

View attachment 150339

View attachment 150340

yes as you see . . . you will only get half of that 75Ah AGM battery.

compressor fridge allone, maybe 3 days. (without charging)

add in the heater. . . . . maybe 1day. (without charging)

..........

do you have a DC-DC charge fitted? - or still using the OEM Split charge relay?

++++


its an easy fix though,

add more batterys,

swap for bigger battery,

swap to a lithium battery ( my preferred choice)

add some solar, either fitted or mobile, ( look at getting 100W per 100ah battery for sizing)

or just add in a mobile power bank for now as a backup.


+++++




.

have a look here for more info: Dellmassive’s "How I Done It" blogs.

.

following on from the above. . .

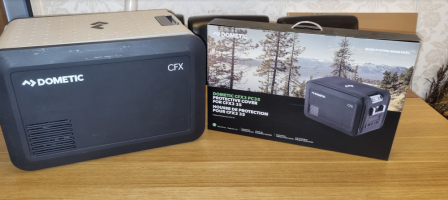

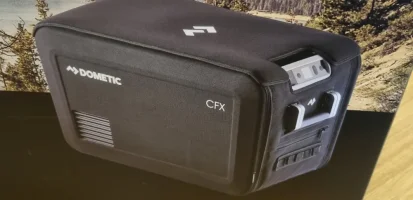

the CFX3-35 Dometic Fridge cover has arrived.




it feels premium, but its more of a soft/hard shell case than a insulation cover . .


well the top and bottom parts have thermo insulation by the looks of it . . .

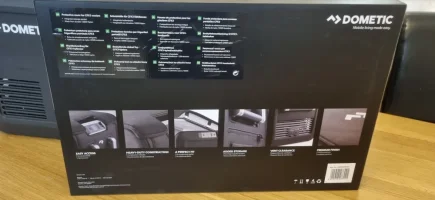

this is what you get . . .



the install guide is supplied - which is nice . . . .

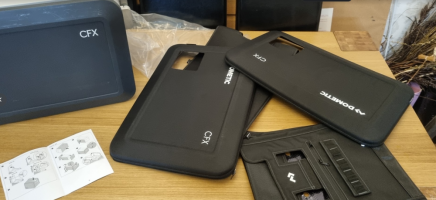

out the box its in four pieces / . . .

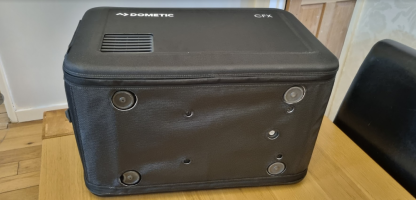

the bottom and two side zip together nice and tightly .


which wraps around the whole unit . . .



the top cover clips in behind the rubber seal . . .

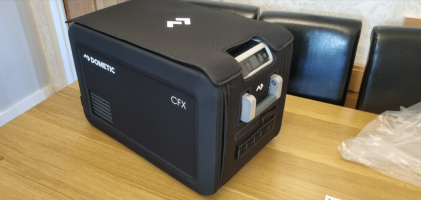

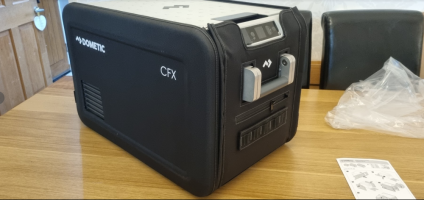

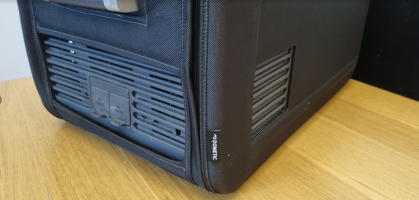

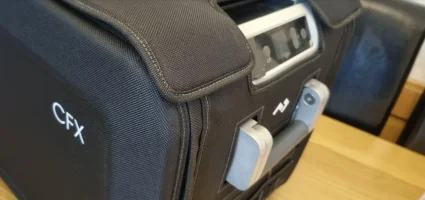

all done we get this . . .







it looks and feels good.

it fits very well . . .

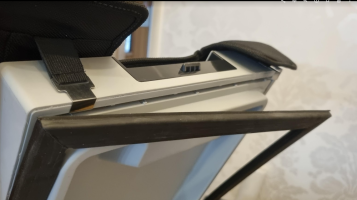

though im not sure about the flappy bit on the hinge side of the lid. . .

we`ll start the real testing when the weather starts to warm up fur summer 2022 camping season.


.





.

-- New Product - 2022 --

it looks like Alpicool is becoming a clear innovator in the compressor fridge sector. Check out the new lines . .


Now even Transporter HQ has taken them on board.

@Tourershine had a demo unit running last year . . . which come with a battery and solar panel.

check them out.

this is a Bad Ass fridge.

12/24/240v powered,
battery backup,
takes solar
wheels and pull handle,
real dual zone,
BT app
USB charge.

what more could you want?

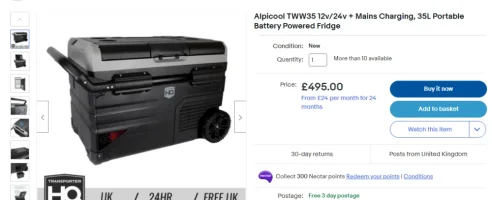

THQ Alpicool TWW35 12v/24v + Mains Charging, 35L Portable Battery Powered Fridge Freezer – with LG Compressor​

First of all we love this fridge. It’s the go anyway, do anything fridge. We’ve been using one of these ourselves for over a year now. It fits perfect in the back of an Ovano bed system, or under a Forty Winks Kombi bed. The 230v and 12v charging options, plus additional solar if required, its a great model, ‘out and about’ fridge. Plus if you need a back up fridge at home or have 230v plugs in your camper, you can charge it direct off that.

The Alpicool TWW35 Portable Battery Powered Fridge Freeze uses a high quality + high performance LG Compressor meaning it runs Quieter and more Efficiently than many other Fridges on the market.

It features a clever door/ lid hinge system, meaning it can open outwards both left and right which is also removable making it a lot easier for cleaning. This lid can be used as a seat, or as a work surface with a location for the chopping board provided, neatly stored on the underside of the fridge lid.

With the Alpicool having the Dual Climate option, you can store a range of different food and drink products at a temperature which suits the whole party. The Mobile APP connectivity is great way to monitor the fridges battery capacity along with making sure the Temperature is set to where you like it. Yep thats right, you can monitor and control the temperature and power usage separately via bluetooth on app on your smart phone (app – “Car Fridge Freezer”).

..

The Durable wheels and telescopic handle make it a lot more practical for transportation which can be used on multiple terrains.

Features:​

  • Digital LED Control Panel
  • Bluetooth app control and monitoring via smart phone
  • Dual Temperature
  • Fast Cooling
  • High Performance LG Compressor (quiet operation)
  • Removable Lithium Battery
  • USB Output for Phone Charging
  • Black in Colour
  • Reversible Opening Lid (opening left or right + removable)
  • Secure Door Catch preventing opening while moving
  • Easily Removable baskets for removing all contents food and drink at once
  • Water draining system/ Drain Plug in both compartments which aids easy cleaning
  • Chargeable via 12v in car socket or standard household mains (chargers included) or via Solar (solar panels available separately)
  • 2 Year Warranty

Technical Speciation:​

  • Model: TWW35 – with Uprated LG Compressor
  • Capacity: 35 Litres
  • Outer Dimensions: L600mm x W400mm x H440mm
  • Fridge Internal Dimensions: L200mm x W309mm x H154mm
  • Freezer Internal Dimensions: L269mm x W309mm x H330mm
  • N.W: 17.5kg
  • Operation: AC100-240v, DC12/24v
  • Rated Power Unit: 60w
  • Chilling Temperatures: -20 – +20°c









..

take a look at the 75L version.

Double Bass-Ass.











The perfect Camping, Car, Vehicle, Truck, RV, Boat TWW75 Fridge/Freezer which cools its contents to -20C.

The TWW75 Compressor Portable Fridge/Freezer is a new Alpicool model with the latest two temperature control system function. It is great portable fridge to meet a variety of refrigeration needs. Whether you're off to the park for a picnic, or on the road, camping for months, the New Alpicool TWW75 Portable Fridge/Freezer has the best portable design for outdoor travel. The Alpicool TWW75 Fridge/Freezer is invaluable for keeping your food fresh and your drinks cold, the whole day, with the two temperature zones.

The Alpicool TWW75 Fridge/Freezer is powered from the inbuilt lithium battery, which is rechargeable at home with an AC wall charger or in the field with a folding solar panel, car cigarette lighter, or the 12V or 24V leisure battery. Ready for hitting the road and having a wonderful time on your adventure? No doubt Alpicool TWW75 Fridge/Freezer is your best choice!

Main Features:

    • Two compartments with individual temperature control.
    • LCD display panel, built-in LED light and internal baskets.
    • With durable handle, wheels and draw bar, easy for moving.
    • Suitable for car, home, outdoor, camping, RV, boat, truck, caravan, using work on 12/24V DC.
    • 3 stage car battery protection system to prevent the car battery run off.
    • Inbuilt lithium battery 15600mAh (173Wh). Real-time battery power and battery voltage is displayed on the control panel. Unique battery design can cool outdoors for up to 20 hours*.
    • Battery solar charging with 100W or 200W solar panel (requires DC5521 plug cord).
    • Vibration resistant design to protect the device safety while driving on road.
    • Digital control panel with electronic temperature control.
    • High efficiency LG compressor with adjustable ECO and MAX modes.
    • Mobile application Bluetooth remote control refrigerator temperature (iOS / Android). Bluetooth 5.0 version, signal range is up to 20 m.
  • * Data from Alpicool experiment: Keeps a 50L fridge cool at 5°C for 20 hours when the ambient temperature at 25°C


  • In the Box:
    TWW75 Fridge/Freezer with 173Wh Battery installed X 1
    Car DC Adaptor X 1
    AC to DC Adaptor X 1
    3.5m DC Cable X 1
    User Manual X 1





.

here is the 50L version,

OUTSUNNY branded,

its cheaper as it doesnt had the battery and solar input.













....


Outsunny 50L Car Refrigerator 12V Portable Freezer w/ Inner LED Light, Wheels

Descriptions
  • Keep food, drinks, and snacks ice cold or frozen with this compressor refrigerator from Outsunny, whether you're spending the day at the beach, going camping with friends, or enjoying a nice picnic outside. The 12v fridge for campervan that can be plugged in and taken with you wherever you go to maintain an ice cold down to -20℃. And with a digital temperature display that lets you dial in the electric thermostat on the go, you can use it to match your specific needs quickly and easily.
Features
  • • EFFICIENT COOLING: With a powerful compressor, -20℃ deep chilling down performance ,can be a fridge and freezer. 50L large capacity, this 12v fridge allows you to store a variety of foods while keeping fresh
    • LED PANEL: Equipped with LED panel allows you to adjust the temperature range at any time. And you would choose max mode for fast cooling or ECO mode for energy saving. And our portable camping fridge average energy consumption is only 60W
    • SMART BATTERY PROTECTION & DUAL USE: Equipped with
  • 110/240V AC and 12/24V DC adapters, which can be used independently or in the car. When the measured DC voltage is below the cut-off value, the 12v compressor fridge for car will shut off to prevent battery depletion
    • USER FRIENDLY & PORTABLE: Featuring 2 large wheels and a pull-up handle, this portable car fridge is convenient for you to take anywhere. The removable basket is convenient for you to store or take out the food. Built-in LED light is convenient to find the food you want in a dim environment. Drain outlet design makes it easier to clean the portable camping fridge
    • DIMENSIONS: Portable Freezer Overall Dimensions: 71.1L x 46W x 50.6Hcm. Lowest Temperature: -20°C. Accessories: wire basket, drain plug, cutting board
Specifications
  • ● Colour: Grey and Black
    ● Material: PP, HDPE
    ● Overall Dimension: 71.1L x 46W x 50.6Hcm

  • ● Volume: 50L
    ● Lowest Temperature: -20°C
    ● Voltage: DC12V/24V(for car use), 110V-240V(independent use)
    ● Car Cigarette Lighter Extension Cord: 2.5m
    ● AC Power Cord: 2m
    ● Compressor Power: 60W
    ● Weight Capacity: 150kg
    ● Certification: UKCA, CE(EMC, ROHS, LVD, ERP)
    ● Item label: C00-034V72
    ● Note: It is recommended that before use resting put about eight hours, usually use do not put side, inverted
    can be tilted 30° briefly
    do not put very strong irritating items





.





@Dellmassive Surely must be space in your set-up for another fridge.....
im so, soo, , , ,sooooo, , , soooooo.

sooooooooooooooooooo

Tempted.

:mexican wave:


but, I've only just got that second Domectic one.:whistle:


maybe ill have to sell of a couple of fridges? - to make room for one of those. ( i have 5 around me at the min , the missus is NOT HAPPY !! )

its the battery and built in solar controller that does it for me. - thats an awesome feature.

I have the Alpicool 65ltr unit, which has a 12v supply and 240 volt suplly leads. I have also rigged up a spare solar controller via an Allpower solar panel for added redundancy.

Does anyone want to swap a Vevor 45L for my 55L. I need a 45l now so it can fit on the tray and under the multi board. I bought the 55l just before Bala weekend and used for the 2 days so it is as new. A4599B32-8AF8-4348-AC96-64C958FFB05B.jpeg8E85C98C-4996-4C5C-B706-75DB39B81C8D.jpeg
