@Pauly it wouldn't be cheating.
With 5 button key fob you will be simply ready for your next 2 retrofits( tailgate & RHS sliding door
).
Just a few thoughts...
Just checked an old sheet (2017) of available sliding door combinations that were available here - though basic set is LHD. However, could have ordered even a RHD with sliding door only on left.
So, electric sliders were available only either only on right or both left and right. On that combination chart sliding door only left was not available with electric drives. Again, the RHD as factory order is rare up here so the combination list might not have been complete.
Anyways, the fact that you got the remote which sends command for right door and that the remote is specified also for left door a kind of suggests about a possibility that the BCM could be coded to pass the command (right door) to left door module - especially if in the UK exists vans with electric slider only on left. So either should find one for VCDS scan - or by trial and error reversing all the unknown coding/adaptation bits
- would be an excellent opportunity to verify that VCDS's adaptations backup/restore function actually works .PS. Just updated the coding/adaptations/blockmap Excel sheets in https://www.t6forum.com/threads/vcds-codes-list.4851/post-234830
The changes incorporated:
- recent VCDS updates for T6
- accepted by BCM adaptation values (for still unknowns)
- the results of electric sliding remote experiments - credit @Robert @Pauly
Did you get the files I sent over to paul, there’s some extra coding/adaption descriptions that aren’t in your spreadsheet.Just a few thoughts...
Just checked an old sheet (2017) of available sliding door combinations that were available here - though basic set is LHD. However, could have ordered even a RHD with sliding door only on left.
So, electric sliders were available only either only on right or both left and right. On that combination chart sliding door only left was not available with electric drives. Again, the RHD as factory order is rare up here so the combination list might not have been complete.
Anyways, the fact that you got the remote which sends command for right door and that the remote is specified also for left door a kind of suggests about a possibility that the BCM could be coded to pass the command (right door) to left door module - especially if in the UK exists vans with electric slider only on left. So either should find one for VCDS scan - or by trial and error reversing all the unknown coding/adaptation bits
PS. Just updated the coding/adaptations/blockmap Excel sheets in https://www.t6forum.com/threads/vcds-codes-list.4851/post-234830
The changes incorporated:
- recent VCDS updates for T6
- accepted by BCM adaptation values (for still unknowns)
- the results of electric sliding remote experiments - credit @Robert @Pauly
I’ve read through most of it and I understand most of it, I’ve got some extra adaption channels wrote down that just need confirming but I think are correct alsoYes i did mate thanks for that, will see what info we can get from them and add to the knowledge pool
Yes. Thanks, appreciated - looking forward to studying what's in there
Just for reference purposes, (unedited) details of my original BCM below.And below is my current (onboard) BCM(second hand from unknown T6 most likely LHD
EDIT: FATIGUE DETECTION was already included.
Code:Sunday,31,January,2021,16:35:24:50413 VCDS Version: Release 20.12.0 (x64) Address 09: Cent. Elect. Control Module Part Number: 7E0 937 090 B Component and/or Version: BCM PQ25 Max4 H81 0744 Software Coding: B8DA7DBF48E3348393288FC4FE8B9EF490A473F160CD79D0330403BF0840 Work Shop Code: WSC 02737 VCID: 2A0CFB4F0CF3678B0D6-807E Advanced Identification Serial number: 0982 154161731 Identification: SME-RBG Revision: B9081001 Date: 08.08.16 Manufacturer number: 0005 Test stand number: 1688 Flash Status Programming Attempts(application): 0 Successful Attempts(application): 0 Successful Attempts(data): 0 Programming Status: 00000000 Flash Date: 0000.00.00 Flash Tool Code: 00000 000 00000 Software HiSpd Net: 01.01.00 Misc. Hardware number: 7E0 937 090 Workshop System Name: J519 Equipment/PR Code: 0000000000000000 Dataset Number: ----------- Dataset Version: ---- End of Line Equipment Level: -------------------- VCDS Info: VCID: 2A0CFB4F0CF3678B0D6-807E Labels: 7E0-937-BCM-V1.clb
Code:
Sunday,14,February,2021,00:41:21:50413
VCDS Version: Release 20.12.0
Address 09: Cent. Elect.
Control Module Part Number: 7E0 937 090
Component and/or Version: BCM PQ25 Max4 H80 0736
Software Coding: B8FE79BE4AE3349393288FC4FE8A9EF4F0A473F960CD79D0330403BF0840
Work Shop Code: WSC 61389
VCID: 68884147D27F959BDB2-803C
Advanced Identification
Serial number: 0771 267150423
Identification: SME-RBG
Revision: B9080001
Date: 02.10.15
Manufacturer number: 0005
Test stand number: 1539
Flash Status
Programming Attempts(application): 1
Successful Attempts(application): 1
Successful Attempts(data): 4
Programming Status: 00000000
Flash Date: 2013.14.13
Flash Tool Code: 1048576 001 61389
Software
HiSpd Net: 01.01.00
Misc.
Hardware number: 7E0 937 090
Workshop System Name: J519
Equipment/PR Code: 0000000000000000
Dataset Number:
Dataset Version:
End of Line Equipment Level: --------------------
VCDS Info:
VCID: 68884147D27F959BDB2-803C
Labels: 7E0-937-BCM-V1.clbHave you got it sorted yet?Key options for single sliders are
7E0837202AJ
7E0837202BS
7E0837202AG
7E0837202BR
and of course no google images for any of these other key numbers
my guess is they all look like mine ?
Just curious
.
My vehicle is exactly the same as above but the fob is 202K
View attachment 71198
View attachment 71199
Mine is exactly the same
.
Any plans for demonstration video?

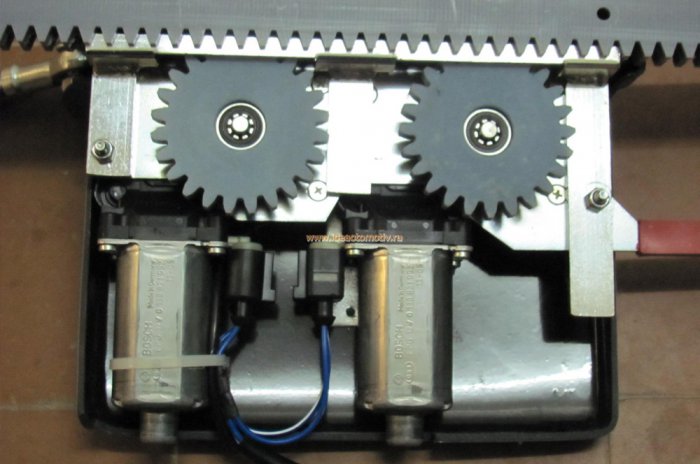

And eventually interesting AFTERMARKET approach to electric sliding doors.
ideaotomotiv-ru.translate.goog
And original link below.
ideaotomotiv.ru
Priced at €200
Наши статьи: Электропривод сдвижной двери для микроавтобусов. Автобусные решения IDEA
Электропривод сдвижной двери для микроавтобусов. Публикации компании Автобусные решения ИДЕА
And original link below.
Наши статьи: Электропривод сдвижной двери для микроавтобусов. Автобусные решения IDEA
Электропривод сдвижной двери для микроавтобусов. Публикации компании Автобусные решения ИДЕА
Priced at €200
@Pauly
Hi,
Just curious as to how you're getting on with your install now it's a few months in. Have you had any issues?
I'm thinking of giving this a go in the new year. I haven't dived into VCDS yet but I'm not bad at coding. I also wondered if the parts list you published was comprehensive? Would I be able to use that and the key fob info to go hunting for parts?
Cheers
Hi,
Just curious as to how you're getting on with your install now it's a few months in. Have you had any issues?
I'm thinking of giving this a go in the new year. I haven't dived into VCDS yet but I'm not bad at coding. I also wondered if the parts list you published was comprehensive? Would I be able to use that and the key fob info to go hunting for parts?
Cheers
