T6 OEM LED-headlight retrofit

[BIgben]

Ok. So I’ve fitted , wired and coded in the lights .. but it looks like my lights are lhd as they kick up to the right. Is there a way to switch this in coding or a mechanism on the actual light ??
So bloody close

Should be written on them, if not, the part number on them will enable you to decipher if they're the right ones. They can't be coded to work the other way around. @Robert has written so many helpful posts that should help you out. T6 OEM LED-headlight retrofit



[Deandubya]

a lot of pages here to read... calling time out i think
I've been looking at a set of Caravelle lights to replace my low beam el standardo's... bit conscious of getting lights & they're not plug & play as such. There's always the THQ lights i know but really like the Caravelle lights. Would these be any good? or would they need all the doobies to set them up..?

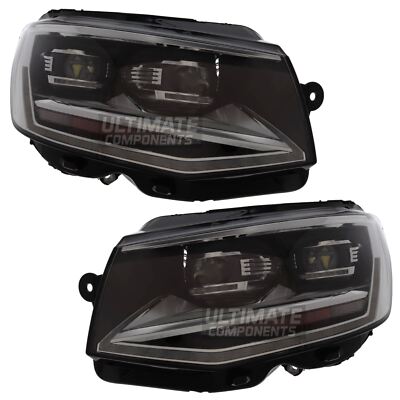

VW Transporter T6 Van 2015-2020 LED Headlights With DRL Lamps Pair Left & Right | eBay

Year: 07/2015-12/2020. Model: Transporter T6 Chassis Cab, MPV & Van. Internal Colour (Bezel): Black Inner. Indicator Colour Bulb Type(s): H21W x 2 LED x 6. RHD Or Neutral Drive: Right Hand Drive Only.

www.ebay.co.uk



[MarksT6]

Hi guys, I have all the parts now to attempt my headlight retrofit but just wondering if anyone can tell me what size connectors I need to go it numbers 56 , 5, 28, 6 on the bcm as they look different sizes. Thanks.



[Robert]

000979009E & 000979025E



[Limalex]

As promised, full list of parts required for a complete LED headlight retrofit including automatic headlight range.

1 x 7E2941773 LHS LED headlamp - Valeo 46718
1 x 7E2941774 RHS LED headlamp - Valeo 46719
2 x 4G0907697G - power module for sides/DRLs (4G0907697F could be also used)
2 x 7PP941571A - power module for low/high beam (7PP941571AE should be used)
2 x 1J0973737 - 14 pin headlamp plug including rubber seals & terminals
1 x 000979025E - pre-crimped wire(with terminal at each end) for side lights connection to the BCM / CEM
10 x 000979009E - pre-crimped wire(with terminal at each end) for PWM connection to the BCM / CEM & headlight range module plug
1 x 6R0907357C - headlight range control module
1 x 7M3 972 726 - plug for headlight range control module
1 x 6Q0941334 - illumination adjuster
1 x N10585602 - stretch-bolt for front suspension arm
1 x N10240304 - nut for stretch-bolt.
1 x 7E0941273 - front level sensor
1 x 7E0941274 - rear level sensor
2 x 4B0973712A - plug for level sensor including rubber seals & terminals
15m x cable 6 x 0.5mm2

To be clear, this is what I bought separately and it worked for me.

For LHD the same stuff is needed except headlamps and level sensors.
1 x (7E1941036 or 7E1941774)
1 x (7E1941035 or 7E1941773)
1 x 7E0941273A
1 x 7E0941274A

This video shows how to remove front bumper and how to replace headlights.

This one shows how to remove terminals from 10 pin plug.

I have reused the following wires & terminals from 10 pin plug: number(3, 5, 6, 9)
and on the existing wires for DRL and high beam I crimped small terminals of the 14 pin plug.
View attachment 19066
View attachment 18380
View attachment 19063
View attachment 19064

In the above photo terminal for DRL PIN10 is not plugged in yet.
For terminals (1, 2, 3, 4, 10 & 14) of the new 14 pin plug I have used my new 6 core cable and I ran it to the BCM area under the dashboard.
View attachment 18385

In order to reuse the existing wiring for the LHS headlamp I had to change slightly its route.
Basically on LED lamps socket is higher than on halogen lamps and I had to gain somehow on cable length.
View attachment 18381

How to access BCM.

And this is my night test drive.

And this is how I will be replacing faulty components.

Frame 4m39s is my favourite one.

Awesome info. Thank you Sir. That is what I would needed.
I am about to face lift my T6.
Is this mod shoukd work with T6.1 LED lights?



[Limalex]

Yes i have made up looms for people and supplied complete kits to retro fit LED headlights but have gone about it in a different way by making full plug and play looms so everything connects around existing wiring and is fully removable, all our parts come direct from VW UK so works out more expensive than sourcing parts from different places online

Hi @Pauly. Does your loom supports the T6.1 LED lights too?



[BIgben]

Hi @Pauly. Does your loom supports the T6.1 LED lights too?

Pretty sure I’m right in saying that the t6 lights aren’t easily compatible with t6.1.



[F-roger]

Потрясающая информация. Спасибо, сэр. Это то, что мне было нужно.
Я собираюсь сделать подтяжку лица своему T6.
Должен ли этот мод работать со светодиодными лампами T6.1?

T6 to T6.1 facelift: LED Headlights

Good evening, Im hoping someone could help me with an issue, I haven recently changed the front end of my transporter T6 to the new T6.1 facelift including the LED Headlights which I had in my T6 only the shape is different. I Bought the led headlights from TPS genuine parts also t6.1 wiring...

www.t6forum.com



[BIgben]

T6 to T6.1 facelift: LED Headlights

Good evening, Im hoping someone could help me with an issue, I haven recently changed the front end of my transporter T6 to the new T6.1 facelift including the LED Headlights which I had in my T6 only the shape is different. I Bought the led headlights from TPS genuine parts also t6.1 wiring...

www.t6forum.com

That’s the thread I was thinking of.
Possible. But not completely simple.



[Limalex]

Pretty sure I’m right in saying that the t6 lights aren’t easily compatible with t6.1.

Halogen ones exchangeable without any mod. I assume not much changed on the wiring. I will look at the post below



[Limalex]

@F-roger PM-ed you



[Pauly]

Hi @Pauly. Does your loom supports the T6.1 LED lights too?

I have retrofitted LED headlights to T6 and T6.1 and they are completely different beasts, I have only ever made looms for T6 vans

6.1 is much trickier coding them in !



[BIgben]

I have retrofitted LED headlights to T6 and T6.1 and they are completely different beasts, I have only ever made looms for T6 vans

6.1 is much trickier coding them in !

Can you still make a loom for the t6?
I’ve had the lights for a while now and keep putting them off.



[Limalex]

I have retrofitted LED headlights to T6 and T6.1 and they are completely different beasts, I have only ever made looms for T6 vans

6.1 is much trickier coding them in !

I contacted @F-roger . I hope his loom available and works. I am not sure wether he offers support with coding. If not would you be able to help me with that? I got VCDS and Odis too.

By the way I PM-ed you for my build data



[Pauly]

Can you still make a loom for the t6?
I’ve had the lights for a while now and keep putting them off.

Yeah I guess, haven’t done one for a while, send me a pm if your interested and we can discuss



[F-roger]

I contacted @F-roger . I hope his loom available and works. I am not sure wether he offers support with coding. If not would you be able to help me with that? I got VCDS and Odis too.

By the way I PM-ed you for my build data

I have not refused to help any client!



[brettwuk]

Hi, could anyone sell me the 10-14pin looms already re pinned I have a light kit and wanting to retrofit it's a panel van so no bcm thanks



[BIgben]

Hi, could anyone sell me the 10-14pin looms already re pinned I have a light kit and wanting to retrofit it's a panel van so no bcm thanks

I think @Pauly has some in stock.



[Pauly]

Depends what van you are trying to fit it to

it's a panel van so no bcm thanks

What does that mean ?



[brettwuk]

Depends what van you are trying to fit it to



What does that mean ?

Sorry might be quoting wrong name or part. It's a T5 2008 panel van with t6 facelift I have been told they can be wired up with correct wires re-pinning 10-14 plug it won't have the auto leveling being coded in as I don't think this is possible on my spec van?

Thanks
