As far as I know it's the same wiring that I was using, and have since moved away from
T6/T6.1 Sequential LED tail lamps "retrofit"
- Thread starter Robert
- Start date
Here you go...
From top to bottom:
- Full span 2 seconds - PWM sweeps 0...100% in 1.34 seconds (starts here at 0.322 sec, reaches 100% at 1.663 seconds)
- Startup - depicted 0.2 seconds (timeline 0.3...0.5 s)
- A sample from 1.0 - 1.2 seconds
- Reaches 100% DC 12 Volts, - depicted timeline 1.5 - 1.7 seconds
Measured across the "LOAD" thus effectively depicted only the PWM of Switched negative.
Last edited:
Love this @mmi - great PWM data.Here you go...
From top to bottom:
Enjoy
- Full span 2 seconds - PWM sweeps 0...100% in 1.34 seconds (starts here at 0.322 sec, reaches 100% at 1.663 seconds)
- Startup - depicted 0.2 seconds (timeline 0.3...0.5 s)
- A sample from 1.0 - 1.2 seconds
- Reaches 100% DC 12 Volts, - depicted timeline 1.5 - 1.7 seconds
View attachment 113850
View attachment 113851
View attachment 113858
View attachment 113854
what did you use to capture?
A new toy - pretty impressive capabilities nowadays... even at reasonable price
Rigol MSO5074 70MHz, 4CH Digital Oscilloscope
Rigol MSO5074 Digital Oscilloscope The MSO5074 is a 70MHz, 4CH high-performance Digital Oscilloscope mode...
www.rigol-uk.co.uk
PS. Added yet another level of spoilers.
wow - a proper decent scope - im very jealous of your new toy.A new toy - pretty impressive capabilities nowadays... even at reasonable price
Rigol MSO5074 70MHz, 4CH Digital Oscilloscope
Rigol MSO5074 Digital Oscilloscope The MSO5074 is a 70MHz, 4CH high-performance Digital Oscilloscope mode...
PS. Added yet another level of spoilers.
have fun with it.
Sadly, I can report that this mod is nigh on impossible on the T6.1 LED rear clusters. There is no easy access inside. I have a spare cluster that I’ve been experimenting on. The only easy way inside would be to cut the lens off but there would be little hope of re attaching it so it looked OEM. It’s not one flat PCB inside with all the LEDs on
I am lazy and I have simply purchased a pair of tail lamps with all the bells and whistles included.
It is an aftermarket product but the quality is seriously good.
They look exactly like OEM but there is slight difference in their functionality (apart from the obvious animations).
The OEM ones illuminate only 3 areas(shown below) when the brake light is on without the side lights.
And these illuminate all 4.

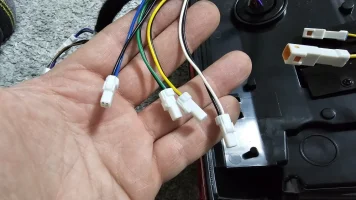

The side light and indicator animation/sequence can be activated/deactivated by connecting/disconnecting external jumper wire.
Additionally all tail lights are equipped with a provision to connect resistor(each lamp come with 3 of them already installed externally).
These resistors can be added as required by simply plugging in provided connector.
I had to use only one of these resistors(indicator).
And finally the lamps come with 2 sets of connecting adaptors so all combinations of plugs and pining are covered and the whole installation process is literally PLUG & PLAY.
It is an aftermarket product but the quality is seriously good.
They look exactly like OEM but there is slight difference in their functionality (apart from the obvious animations).
The OEM ones illuminate only 3 areas(shown below) when the brake light is on without the side lights.
And these illuminate all 4.
The side light and indicator animation/sequence can be activated/deactivated by connecting/disconnecting external jumper wire.
Additionally all tail lights are equipped with a provision to connect resistor(each lamp come with 3 of them already installed externally).
These resistors can be added as required by simply plugging in provided connector.
I had to use only one of these resistors(indicator).
And finally the lamps come with 2 sets of connecting adaptors so all combinations of plugs and pining are covered and the whole installation process is literally PLUG & PLAY.
Awesome. Are they these ones;
www.aliexpress.com
I saw them but wasn't sure if they'd be any good.
Upgrade Full LED Rear Lamp Rear Light for VW Transporter T6 Caravelle Multivan 2015-2019 Taillight Tail Light Accessories - AliExpress 34
Smarter Shopping, Better Living! Aliexpress.com
www.aliexpress.com
I saw them but wasn't sure if they'd be any good.
Yes, I got them from the same seller.
I paid $302.75 ≈ £239 ≈ €287
After the purchase the seller offer me the option to pay extra
$69.63 ≈ £55 ≈ €66 to cover VAT and duties.
I refused and effectively had to pay extra
€19 ≈ £16 on delivery.
Overall total of €306 ≈ £255
I paid $302.75 ≈ £239 ≈ €287
After the purchase the seller offer me the option to pay extra
$69.63 ≈ £55 ≈ €66 to cover VAT and duties.
I refused and effectively had to pay extra
€19 ≈ £16 on delivery.
Overall total of €306 ≈ £255
Visiting this site regularly costs me a fortune.... First the digital dash... now these....
btw I've ordered here: Voll LED Rückleuchten für VW T6 2015-2019 rot T6.1-Look sequentieller Start Laufblinker fast EU shippment, no need to wait I'm only wondering, if stop light illuminates 3 or 4 areas

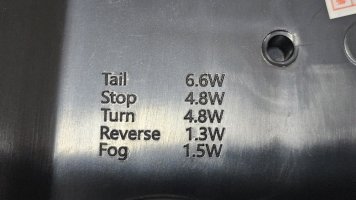

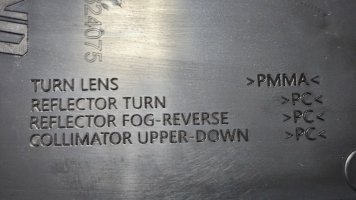

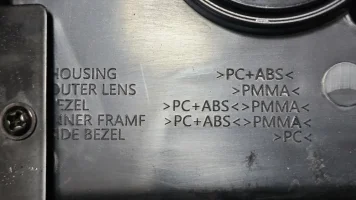

I'm only wondering, if stop light illuminates 3 or 4 areasOk, so I've mounted. Previously had version with dynamic indicator but it required extra boxes with led controllers outside. New version has it built in, only has longer cable. Fitting is not as good as previous version but still acceptable and it has brighter indicator leds
