This underbody part section arrived & it looks correct when I offer it up. It's for a T6 2019 Kombi section of the plastic underbody bits. But I don't have all the fixings for it & it didn't come with new fixings.

I want to make sure it's as solidly attached as it can be this time. I see star washers in my future because there's one star washer left on where the old plastic part used to be.

Does anybody have all the part numbers for the fixings/fittings to attach this plastic part to the underside?



[twotone2]

I've just had the very same part arrived today, from Estonia, I would also be interested in the part numbers for the fixings



[SlothBurger]

I've just had the very same part arrived today, from Estonia, I would also be interested in the part numbers for the fixings

This one is from VW. I thought the fixings would come with it but alas. Seems fairly flimsy so I was thinking of adding a layer of sound deadening to the inside of it before I attach it - not for any sound deadening but just to make the plastic less likely to go crispy like the previous one.



[drinfinity]

Guessing here based on various undertrays I have pulled off/put back

The oval recess& hole along the outside edge will have a 10mm hex head self-tapping screw, and a similar one will bolt through another panel into the white circular hole.

I guess the circular recess will have a threaded spike sticking out of the van to take a star washer. Or another white plastic insert on whatever is above it to take a screw



[drinfinity]

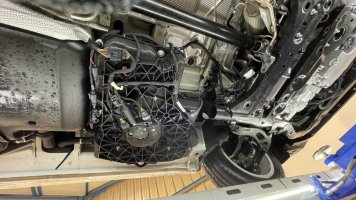

Ok, I’ve found my underbody video on my 6.1. I’m guessing under the ad-blue tank, behind left front wheel, but as yours is T6 it looks a little different. On mine there is an aluminium heat shield which fits on those little studs, and the studs are then melted over to rivet the heat shield on. You can just see these in the first photo.

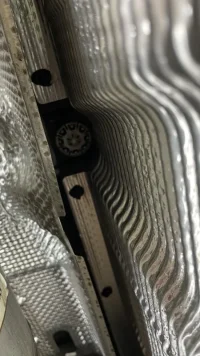

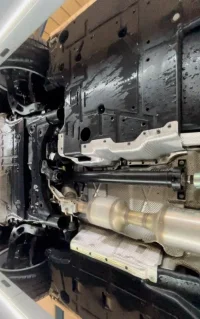

There are several spikes under the van to take the star washers. (Second pic, zoom in) In some points on mine the star washers are captive on the plastic, to make it easier to get them in.



[SlothBurger]

Ok, I’ve found my underbody video on my 6.1. I’m guessing under the ad-blue tank, behind left front wheel, but as yours is T6 it looks a little different. On mine there is an aluminium heat shield which fits on those little studs, and the studs are then melted over to rivet the heat shield on. You can just see these in the first photo.

There are several spikes under the van to take the star washers. (Second pic, zoom in) In some points on mine the star washers are captive on the plastic, to make it easier to get them in.

View attachment 276190

View attachment 276191

View attachment 276192

Yeh mine is T6 Kombi (2019 model) and doesn't have any of the heat mesh on it.
