touch detection T6.1 steering wheel

[Rems]

Hi all,
I retrofited A5 camera on my T6.1, it works correctly for lane guidance, but snooze every 10 seconds

I swaped the steering wheel with a "passat relifted" one, including touch sensors, paddles and travel assit buttons. (thank to @Pauly thread )

MFSW buttons work correctly, in gateway I can see a sub module:

that can't be "long coded", if I corrrectly understood, it is only the detected coded of the gateway:

I was thinking that it should be straight forward to swap it, but in gateway I got this Fault code:

and, without surprises, it doesn't work

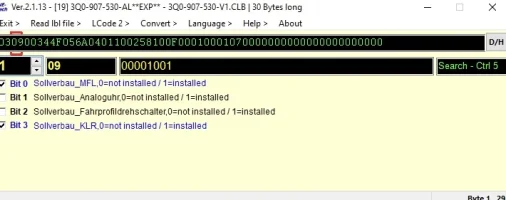

I checked the KLR option in gateway


And I changed the control unit for touch steering wheel, with a « controled one by a professional »

any idea?



[nemesis03]

And I changed the control unit for touch steering wheel, with a « controled one by a professional »

I do not undertand this sentence.

Have you already told the control unit A5 (Driver Assistance) that there is a steering wheel with touch sensors? „Klar“ to „coded“ (activate Byte 05, Bit 2)



[Rems]

I do not undertand this sentence.

Have you already told the control unit A5 (Driver Assistance) that there is a steering wheel with touch sensors? „Klar“ to „coded“ (activate Byte 05, Bit 2)

I tell the A5 front camera that I’ve got a KLR, setting “coded” on it. But it doesn’t work due to the error with the gateway.

And I changed the control unit for touch steering wheel, with a « controled one by a professional »

=> I bought a new KLR controller for Passat B8, that was tested by a professional.
I based this choice on Bentley official docs:
Fit a new Control Unit for Steering Wheel Contact Detection control unit (J1158) when fault code B17B804 is present.



[nemesis03]

I also have the submodule "JIEEHOD1ZONE" in the gateway which has the hardware part number 3G0959542A and Coding 02FFFF. Can you see this submodule?
And in the live data of the gateway I have a parameter "Steering wheel touch recognition, status" which shows whether a touch is recognized. Do you have this live data and does it respond to a touch to the steering wheel?



[Rems]

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:| 3Q0-907-530-V1.clb
Part No SW: 3Q0 907 530 AL HW: 3Q0 907 530 E
Component: GW MQB High 524 5463
Serial number: 05032210802483 Dataset Number: V03935364EJ 0001
Coding: 030900344F056A0401100258100F00010001070000000000000000000000
Shop #: WSC 00012 790 00156
GVL: 01C43C0000100000C0C090008004C80000000000000000000000000000000000
ASAM Dataset: EV_GatewNF 013026
ROD: EV_GatewNF_VN46.rod
VCID: 79A480AE09592C9218D-802C

Generator:
Component: 5-00-11-00-04

Multifunction steering wheel control module:
Subsystem 2 - Part No SW: 3G0 959 442 R HW: 3G0 959 442 R Labels: 3C8-959-537.CLB
Component: E221__MFL-PR6 H07 0110
Serial number: PR6-0440066309203752
Coding: 2D0B00

Battery Monitoring Control Module:
Subsystem 3 - Part No SW: 7E0 915 181 L HW: 7E0 915 181 L
Component: J367-BDMConti H03 1051
Serial number: 77197201002202010158

1 Fault Found:
229950 - Control Module for Steering Wheel Touch Detection
B17B8 04 [00001001] - Internal System Fault
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 2
Fault Frequency: 8
Reset counter: 72
Mileage: 35532 km
Date: 2024.09.21
Time: 16:11:55

Terminal 30 power supply: 12.8 V

Here is the subsystems I have.
No “HOD”



[Rems]

and here is the touch detection status.



[nemesis03]

Hm, that is strange
I looked at the live data of an old backup from before fitting the new steering wheel (so without the touch recognition module) and I have the following status:
Touch intensity sensor 1: 254
Touch intensity sensor 2: 254
Touch intensity sensor 3: 254
Touch status: Initializing
Malfunction status: No malfunction detected

I'm currently out of ideas
