Audi RS4 Seat Upgrade
- Thread starter Mickhar
- Start date
-
- Tags
- audi seat upgrade
That would be great. Appreciate it thank you
Hi Fletch here are some photos of heated seat wiring
On my van driver’s side original loom has 3 wires grey brown and yellow Audi has 4 wires brown/white red green and green/brown connected as follows:
Green and Red join grey .
Brown joins brown/white.
Yellow joins green/brown.
Passenger side is similar but green wire instead of yellow.
Hope this helps mate .
On my van driver’s side original loom has 3 wires grey brown and yellow Audi has 4 wires brown/white red green and green/brown connected as follows:
Green and Red join grey .
Brown joins brown/white.
Yellow joins green/brown.
Passenger side is similar but green wire instead of yellow.
Hope this helps mate .
These are fab
Thanks for your kind comment and thanks again for the help with seat heater wiring
Hi guys I just get 2 Audi q7 seats and plan to install them and wonder if someone can show me how you guys wire electrics as mine its a bit botched by previous owner and wonder what to do lol
To be honest not sure what exactly model or year they come from only as Q7 rs seats as guy who i purchased from he buy them for his t4 but then he get Porsche seats instead and only what he know it was fitted in t5 before but wires are cut in a lot places and not sure if I should put them together as originally should be or try work out. Its look like each movements of seat been done separately as plus minus conection but this way you cant use side buttons to operate.. ffs buy cheap and ends with headaches
To be honest not sure what exactly model or year they come from only as Q7 rs seats as guy who i purchased from he buy them for his t4 but then he get Porsche seats instead and only what he know it was fitted in t5 before but wires are cut in a lot places and not sure if I should put them together as originally should be or try work out. Its look like each movements of seat been done separately as plus minus conection but this way you cant use side buttons to operate.. ffs buy cheap and ends with headaches
Hmm anyone can help?
How you guys connected any photos would be helpful
How you guys connected any photos would be helpful
It would help to get better pics of what you have to be honest
Looks like Freddy Krueger went at them.
Looks like electrical side is butchered and heating side too
Looks like Freddy Krueger went at them.
Looks like electrical side is butchered and heating side too
I will do better shoots then other seat even worst
I did better images of connection blocks if that what you mean.
This one its a bit better then other side and I would just put all together as was originally
From what I read on forum yellow one it’s airbag and red most likly heating there black one and green one
This one its a bit better then other side and I would just put all together as was originally
From what I read on forum yellow one it’s airbag and red most likly heating there black one and green one
Hi Snakelimit I fitted a pair of Audi r/s 4 seat in my 2015 t5.1 late last year from a 2022 car . Stan the man told me how to do the wiring but the electrics on my seats were fully intact with coloured block connectors. I had to remove the block connectors from my van and the Audi seats also I did not need the seat airbags loom as my van only has airbags in the steering wheel and passenger dash . If it’s any help I could send you some photos.
Sure would help thank you
Ok mate this is how my wiring looks on the drivers side all functions are working including seat heaters but not the massage function which I’m not bothered about. As a safety feature I wired mine through a fused circuit under the passenger seat with a fuse tap (15amp works fine but I found 10 amp would blow ) I also used a relay wired to ignition so you can only adjust the seats with ignition on.
Nice thank you Mickhar
Few questions which one for heating which for rest.
With heating will be hard as mine dint have originally but not bother about right now most important it’s to sort rest 1st.
I noticed there few wires coming together like 2 brown 2 reds on 1st photo are they from 2 different conection blocks?
Few questions which one for heating which for rest.
With heating will be hard as mine dint have originally but not bother about right now most important it’s to sort rest 1st.
I noticed there few wires coming together like 2 brown 2 reds on 1st photo are they from 2 different conection blocks?
I would love to see the wiring diagram or where the wires go and come from. Have these exact seats myself but not wired
Hi as I remember the red wires ( live) can join together as can the browns ( earth) I tested the motorised functions by connecting it to a 12v psu but you could use a 12v battery. Also have a look on google at ‘ Audi seats wiring diagrams there are some good pictures and diagrams which are very helpful. Regarding seat heaters you can buy retrofit kits with switches and looms etc .

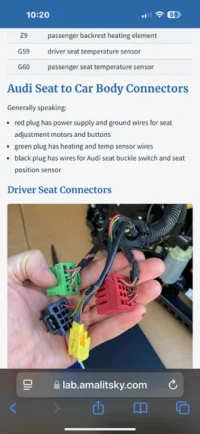

Have a look at this.
I would love to see the wiring diagram or where the wires go and come from. Have these exact seats myself but not wire
