Please forgive me, I have read the two main threads on aux heaters (Link1, Link2). I have the same questions as most.

How to get my aux coolant heater to heat the engine \ cabin without the engine running.

My vehicle, Caravelle Exec build date July 2020, has factory fitted Aux heater (Standard fitment), and Air parking heater (optional extra) with remote control and second battery.

According to the owners manual (Multivan edition 11.2019), I can control either heater via roof top control or remote. The van remembers the last selected mode, Aux heat, Ventilation or rear air heater? and switches that on or off.

My installed equipment is different to that shown in the other threads, the overhead controller seems to be updated and the heater units have different SW \ HW - numbers in VCDS.

My remote is the square type and branded VW. It looks like a Webasto one but only turns air heater or heater fan (normal dash fan) on or off.

These are the controller scans for each. Unfortunately neither has a label file associated with them.
-------------------------------------------------------------------------------
Address 18: Aux. Heat (J364) Labels:* None
Part No SW: 5WA 963 271 A HW: 5WA 963 271 A
Component: STH-VW37x 006 0010
Serial number: 000000000000015
Coding: 7143221854121512DCE519
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_AuxilHeateWOSVW38X 001009
ROD: EV_AuxilHeateWOSVW38X_VW27.rod
VCID: 4ACD67C2CC33823BCC7-801E

No fault code found.

-------------------------------------------------------------------------------
Address 810B: Aux. Air Heat. 2 (J604) Labels:* None
Part No SW: 7C0 963 273 B HW: 7C0 963 273 B
Component: LSH_DIESEL 006 0026
Coding: 3200
Shop #: WSC 00012 790 00075
ASAM Dataset: EV_LSHECCSMNB 002018
ROD: EV_LSHECCSMNB_002.rod
VCID: 2A0D07426C73A23B2C7-807E

Remote Control Auxiliary Heater:
Subsystem 1 - Part No SW: 3Q0 963 513 HW: 3Q0 963 513
Component: R64 D208L 004 0402
Serial number: 00000000000001021196

No fault code found.

-------------------------------------------------------------------------------

The coolant heater (Webasto) has a very similar SW No. 5WA 963 271 A to the customising thread but starts with 5WA.
The eber is also a M2, which I believe is can bus control only.

From the long coding option in VCDS each controller has 7 check boxes.
I can't tell what the options are though.
If I change each check box one at a time would the adaptations or measurement scan show what changes have been made?



Any thoughts or recommendations appreciated.
Regards The old goat.

Why are you trying to use the coolant heater rather than the air heater? It is so much simpler to just press the button on the air heater remote. Any particular reason for wanting to warm up the engine and coolant as opposed to directly heating the air in the van?

Yes that's true, the air heater is perfect for the job. If the coolant one could be configured to work from remote it might help the overall fuel economy?
on short 10 mile runs I'm getting 25mpg, when engine is warm I get around 28 ~ 30. 199 ps bi-turbo engine.
I realise the heater might use even more fuel to pre heat the engine!

Also just wondering what the other VCDS options might be.

Don't forget that your fuel usage is affected by whichever heater is used so as I see it the fuel consumption figures do not mean much anyway. I am only getting 24ish mpg on my 204 on local running but mine isn't run in yet after two years! I don't worry about fuel consumption - I might think about it more in 3 or 4 years time when the engine has fully loosened up. :) ( Full camper, LWB, high top ) I have fitted a 4Kw Webasto to mine so consumption will be roughly the same as yours and I haven't really noticed any great effect on mpg although it isn't getting as much use as it should be.

yes and to be fair I would think the coolant heater would use more, 5kw output vs 3.5kw for the air heater.

It was partly because the user manual claims both are switchable.
I also have some other minor faults stored in the ECU so was planning to question the dealer regards operation.

I've only covered 1000 miles!

I also confirm my previous bus, T5.1 180 achieved best fuel performance after 6000 ~ 8000 miles.
33 on a run at 77MPH indicated on speedo. Cruise control makes a massive difference.


Attachments

  • UserManual.pdf
    591.5 KB · Views: 41
I cannot add more to this application of VCDS etc. Have you asked Ross-Tech if they can help, if you are a registered VCDS user they will help in any way that they can and may be interested in details of the modules on your Caravelle if they don't already have a channel map for them.

Hi Rod, I have sent a copy of my scan with the pre-label files to Ross-tech. Out of 29 controllers, 16 have no label files and 2 have redirect failed.

I've not asked directly to Ross-tech for help at the moment.

I ac not help with any tech but I do think that using the water heater to pre heat the engine is a good idea regardless of having an air heater. I will help reduce engine ware. Cold starts and running do the most damage to an engine. It may possibly assist in fuel use but your heater will also use fuel. That may be swings and round-a bouts. A thermostatic block heater, would help as it does not use fuel on electricity. If you have night storage heaters or something like that it would be even cheaper over night because of the economy setting on the electric meter.:)

One used to be able to buy Engine block heaters in the UK. I have not looked recently. They are quite popular in the Northern United states and Canada. Perhaps they might be available in northern Europe.




I have not read the above to check them but there are others .

Anyway good luck with your endeavour.

@Kind of Blue That's interesting, never knew such things existed. I agree though a preheated engine should reduce cold start wear and warm up times.

I do wonder now had I not specified an air heater (for overnight use), if the standard fit coolant heater would operate as a pre heater without the engine running.

I will have a try to program a start time with the overhead control unit and see if there is an option for coolant or air.

Has anyone here got just a coolant heater with overhead control?

Regards The old goat.

If coolant heater software implementation logic of T6.1 is similar to T6 then below are details of preheat capable (without engine running). This is the software+coding installed up here in T6.1. Controlled either from overhead panel or from remote.
Code:
-------------------------------------------------------------------------------
Address 18: Aux. Heat (J364)       Labels:* None
   Part No SW: 5WA 963 272 A    HW: 5WA 963 272 A
   Component: STH-VW37x     006 0010
   Serial number: 000000000000923
   Coding: 3543223854121512DCE519
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_AuxilHeateWOSVW38X 001009
   ROD: EV_AuxilHeateWOSVW38X_VW27.rod
   VCID: 4BC06D9D734C6EB94CE9-801E

   Remote Control Auxiliary Heater:

No fault code found.
-------------------------------------------------------------------------------

@mmi Now that looks really promising, fantastic! I had hoped that some of the check boxes on the VCDS scan might allow this.

I will try the same coding today and report back.
Many thanks The old goat.

Below links to electric engine preheaters available up here for T6 and T6.1. However, as all Transporters up here nowadays come with Webasto heater, the electric ones are not used/installed so often any more. Would make sense though as electricity is generally cheaper than diesel.

T6, T6.1 Electric coolant heater --> http://old.defa.com/vfp/eh/413708.pdf
T6 Electric oilpan heater --> http://old.defa.com/vfp/eh/421805.pdf

Connection kit --> https://www.defa.com/content/upload...information/Electrical-preheating/1920254.pdf


Another well known brand is Calix.

I had hoped that some of the check boxes on the VCDS scan might allow this.
Unfortunately it will take some time before the check boxes get filled by Ross-Tech as the codings are not generally documented. Nowadays even ODIS (VW Tools) doesn't have codings as such available.

Anyways, some tweaking data is still/already documented in adaptation maps of T6.1 Webasto.
How-to --> Adpmap

For those like me, that do not have an elcto scanner thingummy jig or not know what to do with one :confused:, friendless :cry: and does not know anyone with such a weapon. There are outlets around the country that will do it for you. Such as


@Kind of Blue I have a remote key fob and reciever already installed. Webasto I think. This controls the Eber air heater but not the Webasto coolant jobbie!
I also have the latest Ross-tech cable (v2) and have had a play today. Oh, and I don't have many friends:(

@mmi I've tried he coding as shown in your controller scan. Not made any difference to options available in overhead control panel.

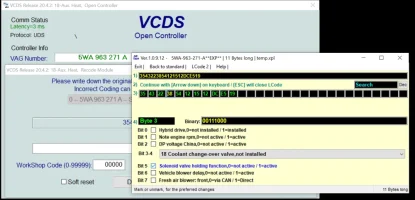

After using VCDS again I accepted suggested long coding and got some more info.
It seems byte 0 is related to the remote control and byte 3 is for the coolant valve.


** One other minor difference is my HW No. ends in 271 not 272** Does that make all the difference?

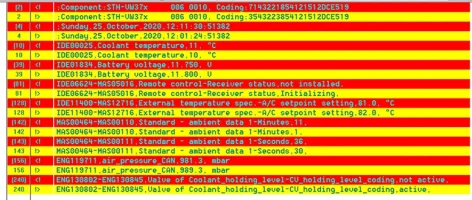

So... comparing the before and after block files this is the difference

The controller doesn't seem to initialise the remote receiver, and has changed the coolant valve to active.

From previous threads is it possible I need a wire on the lin bus from reciever to webasto heater?

Last edited:
** One other minor difference is my HW No. ends in 271 not 272** Does that make all the difference?
Probably not - more likely it's the software version (5WA 963 271 A vs. 5WA 963 272 A).
I have a remote key fob and reciever already installed.
It's obviously connected to the Air heater (Subsystem 1 - Part No SW: 3Q0 963 513 HW: 3Q0 963 513).
From previous threads is it possible I need a wire on the lin bus from reciever to webasto heater?
I'd guess that would work. Wiring diagram would help... seems that they are not (yet) in downloads.

PS. Some related T6 stuff:

Very useful this VCDS thingy. I will have to enquire on these pages about such Wizardry. The language people use when following process. looks very much like the DARK ARTS or occult spells.:devil::cool:. thank you for such a detailed post.

@mmi I've read the thread above and it seems earlier vans have a dedicated controller for the roof display.

My vehicle has the following controllers: -

Chassis Type: 7H-VN46 (3Q0)
Scan: 01 02 03 08 09 10 13 15 17 18 19 22 3D 44 55 5F 65 69 6D 75
A5 BB BC BE BF D6 D7 810B

VIN: WV2ZZZ7HZLH07**** Mileage: 1429km-887miles

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: OK 0000
13-Auto Dist. Reg -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: Malfunction 0010
18-Aux. Heat -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
22-AWD -- Status: OK 0000
3D-Special Function -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
55-Headlight Range -- Status: OK 0000
5F-Information Electr. -- Status: Malfunction 0010
65-Tire Pressure -- Status: OK 0000
69-Trailer -- Status: OK 0000
6D-Trunk Elect. -- Status: OK 0000
75-Telematics -- Status: Malfunction 0010
A5-Frt Sens. Drv. Assist -- Status: OK 0000
BB-Door Rear Drv -- Status: OK 0000
BC-Door Rear Pass -- Status: OK 0000
BE-Slid. Door Rear Left -- Status: OK 0000
BF-Slid. Door Rear Right -- Status: OK 0000
D6-Light Ctrl Left 2 -- Status: OK 0000
D7-Light Ctrl Right 2 -- Status: OK 0000
810B-Aux. Air Heat. 2 -- Status: OK 0000
-------------------------------------------------------------------------------

Unfortunately no 6E controller.
My roof controller looks like this

In this instance Aux heater means Air heater.

it seems earlier vans have a dedicated controller for the roof display.
True - actually VW fully changed "electrical architecture" from T6 to T6.1. T6.1 is based on modern MQB platform thus sharing a lot of components from other VAG cars. So there are not many electrical components which are interchangeable between T6.1 and T6 (or T5.1).

Perhaps you already noticed that e.g. in the central electrics (09) of T6.1 there are no codings - all is done under adaptations - 1478 channels to tweak :eek:.
So the T6 BCM codings shown here is a kind of obsolete for you.

PS. Any chance to share full scan (all the listed control modules) of your van please?

Full scan.....not sure what the faults are in various controllers but none related to the heaters I don't think.

I will contact dealer Monday and book it in for fault clearing and see if we can work out how the heater control in the roof really works!

I've got an issue with the media pro head unit forgetting the "S pin" no. I might have to start a new thread if it continues.

Just hope the faults aren't a sign of things to come!

Oh and yes I did have a look in 09 Cent-Elec and thought it was strange, having said that the last time I used VCDS properly was 9 years ago to code factory tow bar and sat nav in a T5.1

Code:
Friday,23,October,2020,14:28:56:51382
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 20.4.2.0 (x64)  HEX-V2 CB: 0.4526.4
Data version: 20200730 DS317.0
www.Ross-Tech.com


VIN: WV2ZZZ7HZLH07****   License Plate:
Mileage: 1429km-887mi   Repair Order:



--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: 7H-VN46 (3Q0)
Scan: 01 02 03 08 09 10 13 15 17 18 19 22 3D 44 55 5F 65 69 6D 75
          A5 BB BC BE BF D6 D7 810B

VIN: WV2ZZZ7HZLH07****   Mileage: 1429km-887miles

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: OK 0000
13-Auto Dist. Reg -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: Malfunction 0010
18-Aux. Heat -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
22-AWD -- Status: OK 0000
3D-Special Function -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
55-Headlight Range -- Status: OK 0000
5F-Information Electr. -- Status: Malfunction 0010
65-Tire Pressure -- Status: OK 0000
69-Trailer -- Status: OK 0000
6D-Trunk Elect. -- Status: OK 0000
75-Telematics -- Status: Malfunction 0010
A5-Frt Sens. Drv. Assist -- Status: OK 0000
BB-Door Rear Drv -- Status: OK 0000
BC-Door Rear Pass -- Status: OK 0000
BE-Slid. Door Rear Left -- Status: OK 0000
BF-Slid. Door Rear Right -- Status: OK 0000
D6-Light Ctrl Left 2 -- Status: OK 0000
D7-Light Ctrl Right 2 -- Status: OK 0000
810B-Aux. Air Heat. 2 -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CXEC)       Labels: None
   Part No SW: 04L 906 056 AL    HW: 04L 907 445 N
   Component: R4 2.0l BTD   H01 9970
   Revision: 23401001
   Coding: 0025401C4376050800000000000000000000000000000000
   Shop #: WSC 00012 790 00060
   ASAM Dataset: EV_ECM20BTD03004L906056AL 004005
   ROD: EV_ECM20BTD03004L906056AG.rod
   VCID: 77ABEE36EF41CFD3639-8022

1 Fault Found:
38427 - Sensor Reference Voltage 1
          P06A6 00 [032] - Implausible Signal
          Intermittent - Not Confirmed - Tested Since Memory Clear

Readiness: N/A

-------------------------------------------------------------------------------
Address 02: Auto Trans (J743)       Labels:. 0BH-927-711.clb
   Part No SW: 0BT 300 012 E    HW: 0GC 927 711 H
   Component: GSG DQ500     H06 3106
   Revision: 00H06V11
   Coding: 0014
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_TCMDQ500021 001001
   ROD: EV_TCMDQ500021_VN46.rod
   VCID: 313F102E41A5D1E3EDD-8064

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels: Redir Fail!
   Part No SW: 7LA 614 517 A    HW: 7LA 614 517
   Component: ESC_high      H01 0700
   Serial number: 08509359200506
   Coding: 10554452C84EE68A085C22A8136E6726392720B8
   Shop #: WSC 00012 790 00060
   ASAM Dataset: EV_Brake1ESP90iBOSCHVN46X 002010
   ROD: EV_Brake1ESP90iBOSCHVN46X_002.rod
   VCID: 3D273C1E8DFD2583795-8068

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255)       Labels:* None
   Part No SW: 7LA 907 040 A    HW: 7LA 907 040 A
   Component: Climatronic   H01 0502
   Coding: 0031100008102100010009005040010500000000000B1501A08000000000
   Shop #: WSC 00012 790 00060
   ASAM Dataset: EV_AirCondiBHTCT6PA 001004
   ROD: EV_AirCondiBHTCT6PA.rod
   VCID: 392F280E99D519A355D-806C

   Operating and display unit 1 for air conditioning:
   Subsystem 1 - Part No SW: 7LA 907 049 B    HW: 7LA 907 049 B
   Component: E857  H02 0301
   Serial number: 00004060222120210512

   Rear Climatronic Operating And Display Unit:
   Subsystem 2 - Part No SW: 7LA 907 049 F    HW: 7LA 907 049 F
   Component: E857  H02 0301
   Serial number: 00002120220170017604
   Coding: 000000

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels: None
   Part No SW: 2Q5 937 090     HW: 2Q5 937 090
   Component: BCM T6PA Std+ H10 0936
   Serial number: 01102016900513
   Shop #: WSC 00012 790 00075
   ASAM Dataset: EV_BCMA0 205001
   ROD: EV_BCMA0_205.rod
   VCID: 74B1D93AFE37A4CB46B-8020

   Rain Light Recognition Sensor:
   Subsystem 1 - Part No SW: 5Q0 955 559 B    HW: 5Q0 955 559 B  Labels: 5Q0-955-547.CLB
   Component: RLS  050 0105
   Serial number: SBY20M05D07H08M29S20
   Coding: 02B8EE

   Drivers Door Control Module:
   Subsystem 2 - Part No SW: 7L1 959 405 B    HW: 7L1 959 163 B
   Component: FHSG_DRV  001 0002
   Serial number: 00000000000038022621
   Coding: 1F0007

   Front Passengers Door Control Module:
   Subsystem 3 - Part No SW: 7L1 959 406 B    HW: 7L1 959 164 B
   Component: FHSG_PSG  001 0002
   Serial number: 00000000000038916282
   Coding: 050007

   Sensor For Anti Theft Alarm System:
   Subsystem 4 - Part No SW: 2N0 951 173     HW: 2N0 951 173
   Component: Sensor, DWA  015 0316
   Serial number: 000000000ZY201151ZHV

   Alarm horn:
   Subsystem 5 - Part No SW: 5Q0 951 605 A    HW: 5Q0 951 605 A
   Component: Sirene, DWA  005 0314
   Serial number: 00000000000048382236

2 Faults Found:
608524 - Unknown Error Code
          B1A72 F0 [009] - Unknown Error Elaboration
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 4
                    Fault Frequency: 7
                    Reset counter: 64
                    Date: 2000.00.00
                    Time: 00:00:00

                    Zusaetzliche Umgebungsdaten-Terminal 15 status: OFF
                    Zusaetzliche Umgebungsdaten-Terminal 50 status: OFF
                    Zusaetzliche Umgebungsdaten-Low beam: not activated
                    Zusaetzliche Umgebungsdaten-OFF: not activated
                    Zusaetzliche Umgebungsdaten-Outside air temperature: -50.0 °C
                    Zusaetzliche Umgebungsdaten-Automatic high beam assist: operated
                    Zusaetzliche Umgebungsdaten-Parking light: not activated
                    Zusaetzliche Umgebungsdaten-Parking light left: not activated
                    Zusaetzliche Umgebungsdaten-Parking light right: not activated
                    Zusaetzliche Umgebungsdaten-CAN-Bus_aktiv: On
                    Zusaetzliche Umgebungsdaten-last wakeup: keine Stoerschutzursache
                    Zusaetzliche Umgebungsdaten-Status Bremslichtschalter (CAN): OFF
                    Zusaetzliche Umgebungsdaten-Status Bremslichtschalter (HW): OFF
                    Zusaetzliche Umgebungsdaten-voltage measurement: 12.8 V

608780 - Unknown Error Code
          B1A73 F0 [008] - Unknown Error Elaboration
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 4
                    Fault Frequency: 8
                    Reset counter: 105
                    Mileage: 138 km
                    Date: 2020.09.09
                    Time: 09:27:00

                    Zusaetzliche Umgebungsdaten-Terminal 15 status: On
                    Zusaetzliche Umgebungsdaten-Terminal 50 status: OFF
                    Zusaetzliche Umgebungsdaten-Low beam: not activated
                    Zusaetzliche Umgebungsdaten-OFF: not activated
                    Zusaetzliche Umgebungsdaten-Outside air temperature: -50.0 °C
                    Zusaetzliche Umgebungsdaten-Automatic high beam assist: operated
                    Zusaetzliche Umgebungsdaten-Parking light: not activated
                    Zusaetzliche Umgebungsdaten-Parking light left: not activated
                    Zusaetzliche Umgebungsdaten-Parking light right: not activated
                    Zusaetzliche Umgebungsdaten-CAN-Bus_aktiv: On
                    Zusaetzliche Umgebungsdaten-last wakeup: keine Stoerschutzursache
                    Zusaetzliche Umgebungsdaten-Status Bremslichtschalter (CAN): OFF
                    Zusaetzliche Umgebungsdaten-Status Bremslichtschalter (HW): OFF
                    Zusaetzliche Umgebungsdaten-voltage measurement: 12.0 V


-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J791)       Labels:| 5Q0-919-298.clb
   Part No SW: 5QA 919 298 H    HW: 5QA 919 298 A
   Component: PLA 3.0 12K   H08 0061
   Serial number: 000150057220161
   Coding: 0379161951
   Shop #: WSC 00012 790 00060
   ASAM Dataset: EV_EPHVA2CAU3700000 009048
   ROD: EV_EPHVA2CAU3700000_VW27.rod
   VCID: 55F784BE158DDDC3515-8000

No fault code found.

-------------------------------------------------------------------------------
Address 13: Auto Dist. Reg (J428)       Labels:| 2Q0-907-572.clb
   Part No SW: 2Q0 907 572 R    HW: 2Q0 907 572 B
   Component: ACCCONTIMQB   H03 0372
   Coding: 3200670B49FF8748949C815580508700000000000000000004
   Shop #: WSC 00012 790 00075
   ASAM Dataset: EV_ACCMRRCONTIVW376 003016
   ROD: EV_ACCMRRCONTIVW376_003_VW27.rod
   VCID: 43D34AE6EB1953730F1-8016

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:* None
   Part No SW: 2Q0 959 655 AE    HW: 2Q0 959 655 AE
   Component: VW22Airbag    016 0506
   Revision: --------
   Coding: 88CCC00000000000800000CF008C40000065
   Shop #: WSC 00012 790 00060
   ASAM Dataset: EV_AirbaVW22BPAVW27X 001022
   ROD: EV_AirbaVW22BPAVW27X_VW27.rod
   VCID: 005985EABA8F886B523-8054

   Side Sensor Driver Front:
   Subsystem 1 - Part No SW: -----------    HW: 442 062 005 20
   Component: SideSensor_Df  1E2 0887
   Serial number: 3577Y509B34D34A4D29H
   Coding: 2D2D2D

   Side Sensor Passenger Front:
   Subsystem 2 - Part No SW: -----------    HW: 442 062 005 20
   Component: SideSensor_Pf  1E2 0887
   Serial number: 3587Y50A934B0844F337
   Coding: 2D2D2D

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:* None-SRI3
   Part No SW: 7LA 920 320     HW: 7LA 920 320
   Component: KOMBI         503 4193
   Coding: 24A408882C840600018862051001000800601E02
   Shop #: WSC 00012 790 00060
   ASAM Dataset: EV_DashBoardVDDMQBA0 001042
   ROD: EV_DashBoardVDDMQBA0_VW27.rod
   VCID: 74B1D93AFE37A4CB46B-8020

2 Faults Found:
16777018 - Function Restricted due to Interrupted Communications
          U1110 00 [008] - -
          [BAP_Audio_0x31 keine Kommunikation]
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 3
                    Reset counter: 103
                    Mileage: 736 km
                    Date: 2020.09.20
                    Time: 18:07:48

9456681 - Key
          B104C 29 [008] - Implausible Signal
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Mileage: 582 km
                    Date: 2020.09.16
                    Time: 08:56:27


-------------------------------------------------------------------------------
Address 18: Aux. Heat (J364)       Labels:* None
   Part No SW: 5WA 963 271 A    HW: 5WA 963 271 A
   Component: STH-VW37x     006 0010
   Serial number: 000000000000015
   Coding: 7143221854121512DCE519
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_AuxilHeateWOSVW38X 001009
   ROD: EV_AuxilHeateWOSVW38X_VW27.rod
   VCID: 4ACD67C2CC33823BCC7-801E

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:| 3Q0-907-530-V1.clb
   Part No SW: 3Q0 907 530 AC    HW: 3Q0 907 530 C
   Component: GW MQB High   521 5388
   Serial number: 13062011600684
   Coding: 030100544F05730401100218100F00010001070000000000000000000000
   Shop #: WSC 00012 790 00075
   ASAM Dataset: EV_GatewNF 013026
   ROD: EV_GatewNF_VW27.rod
   VCID: 70B9D52A8A2F98EBA23-8024

   Alternator:
   Component: 4-00-11-01-04

   Multi Function Steering Wheel Control Module:
   Subsystem 2 - Part No SW: 3G0 959 442 F    HW: 3G0 959 442 F
   Component: E221__MFL-PR6  H06 0110
   Serial number: PR6-0440036119203109
   Coding: 2C1D00

   Battery Monitoring Control Module:
   Subsystem 3 - Part No SW: 7E0 915 181 L    HW: 7E0 915 181 L
   Component: J367-BDMConti  H03 1051
   Serial number: 7719720000200125064B

No fault code found.

-------------------------------------------------------------------------------
Address 22: AWD (J492)       Labels:* 0CQ-907-554.clb
   Part No SW: 0CQ 907 554 L    HW: 0CQ 525 130 C
   Component: Haldex4Motion H56 7822
   Serial number: HA1-00027.02.20
   Coding: 0001
   Shop #: WSC 00012 790 00075
   ASAM Dataset: EV_AllWheelContrHA1VW37X 004013
   ROD: EV_AllWheelContrHA1VW37X.rod
   VCID: 4EC56BD2305BAE1B90F-801A

No fault code found.

-------------------------------------------------------------------------------
Address 3D: Special Function (J608)       Labels:* None
   Part No SW: 2N0 907 427 P    HW: 2N0 907 427 H
   Component: KFG       H24 0306
   Serial number: GB24202238413
   Coding: 00002000000000200200000820B00300B8000000
   Shop #: WSC 00012 790 00060
   ASAM Dataset: EV_SpeciFunctFlextVN54X 007029
   ROD: EV_SpeciFunctFlextVN54X_007_VN46.rod
   VCID: 3D273C1E8DFD2583795-8068

   Subsystem 6 - Part No SW: 7E0 915 181 M    HW: 7E0 915 181 M
   Component: J367-BDMConti  H03 1051
   Serial number: 7719450100200320044E

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist (J500)       Labels:| 2N0-909-143.clb
   Part No SW: 7LA 909 144 F    HW: 7LA 909 144 D
   Component: EPS_MQB_ZFLS  751 7150
   Coding: 0306
   Shop #: WSC 00012 790 00075
   ASAM Dataset: EV_SteerAssisMNB 002012
   ROD: EV_SteerAssisMNB_VN46.rod
   VCID: 45D754FEE52D6D43215-8010

No fault code found.

-------------------------------------------------------------------------------
Address 55: Headlight Range (J745)       Labels:| 7P6-907-357.clb
   Part No SW: 7P6 907 357 E    HW: 7P6 907 357 A
   Component: AFS-ECU       H07 0080
   Revision: --------    Serial number: --------------
   Coding: 0C8E020009210003
   Shop #: WSC 00012 790 00032
   ASAM Dataset: EV_HeadlRegulAFSMQBMAX 001001
   ROD: EV_HeadlRegulAFSMQBMAX_VW27.rod
   VCID: 41DF40EEF10541631DD-8014

No fault code found.

-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794)       Labels:* Redir Fail!
   Part No SW: 3G5 035 816     HW: 3G5 035 816
   Component: MU-O-ND-EU    H12 0156
   Serial number: VWZAZ2X0582103
   Coding: 64600000000020000000000000000000000000000000000000
   ASAM Dataset: EV_MUOIMQB 001001
   ROD: EV_MUOIMQB_SE27.rod
   VCID: 6695B372B8EB465BC8F-8032

1 Fault Found:
12291 - Ethernet Databus Branch 4
          U11BE 00 [008] - Electrical Malfunction
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 4
                    Fault Frequency: 1
                    Reset counter: 31
                    Mileage: 1168 km
                    Date: 2020.10.09
                    Time: 10:37:00

                    Ethernet counter checksum error: branch 4: 0
                    Ethernet counter connection interruptions: branch 4: 0


-------------------------------------------------------------------------------
Address 65: Tire Pressure (J502)       Labels: 3AA-907-273.clb
   Part No SW: 5Q0 907 273 D    HW: 5Q0 907 273
   Component: RDKBERU30     H05 0010
   Serial number: 30000000395580
   ASAM Dataset: EV_RDKBERU30 006001
   ROD: EV_RDKBERU30_VW41.rod
   VCID: 36352332A8CBF6DBB8F-8062

No fault code found.

-------------------------------------------------------------------------------
Address 69: Trailer (J345)       Labels:* None
   Part No SW: 5H0 907 383     HW: 5H0 907 383
   Component: Anhaenger     H09 0040
   Serial number: 000000000005490
   Coding: 0100000202001300
   ASAM Dataset: EV_TrailFunctGener3Hella 001009
   ROD: EV_TrailFunctGener3Hella_VW27.rod
   VCID: 6B83C246A3097B33971-803E

No fault code found.

-------------------------------------------------------------------------------
Address 6D: Trunk Elect. (J605)       Labels:* None
   Part No SW: 7LA 959 107     HW: 4M0 959 107 C
   Component: HDSG-Modul    H14 0672
   Revision: --------    Serial number: A2-C769-9790-2
   Coding: 4180
   Shop #: WSC 00012 790 00017
   ASAM Dataset: EV_DeckLidCONTIVN46T 001017
   ROD: EV_DeckLidCONTIVN46T.rod
   VCID: 03538AE6AB9993734F1-8056

No fault code found.

-------------------------------------------------------------------------------
Address 75: Telematics (J949)       Labels:* None
   Part No SW: 5WA 035 284     HW: 5WA 035 284
   Component: OCUGen3High   H20 0088
   Serial number: 0000000002VINV5
   Coding: 06462000196898209005460160400607
   ASAM Dataset: EV_OCUGen3High 002115
   ROD: EV_OCUGen3High_002_AU27.rod
   VCID: 03538AE6AB9993734F1-8056

2 Faults Found:
0081 - Databus
          U1121 00 [008] - Missing Message
          [Ethernet Databus missing message - Infotainment Unit]
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 7
                    Reset counter: 40
                    Mileage: 183 km
                    Date: 2020.09.10
                    Time: 09:21:28

                    Voltage terminal 30: 12.2 V

2566 - GPS Antenna
          B1054 13 [008] - Open Circuit
          [GPS-Antenna - Interruption]
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 4
                    Fault Frequency: 1
                    Reset counter: 31
                    Mileage: 0 km
                    Date: 2000.00.00
                    Time: 00:00:00

                    Voltage terminal 30: 12.4 V


-------------------------------------------------------------------------------
Address A5: Frt Sens. Drv. Assist (R242)       Labels:* None
   Part No SW: 2Q0 980 653     HW: 2Q0 980 653
   Component: MQB MFK 3.0   H11 1030
   Serial number: E33417011201680
   Coding: 000108082158C020401F00001030002006000000000000000000000000000000
   ASAM Dataset: EV_MFK3ValeoMQB 005035
   ROD: EV_MFK3ValeoMQB_005_VW27.rod
   VCID: 72BDDF228423AAFB547-8026

No fault code found.

-------------------------------------------------------------------------------
Address BB: Door Rear Drv (J1093)       Labels: None
   Part No SW: 7LA 035 593 A    HW: 7LA 035 593 A
   Component: SLD_Rx-Unit_d H07 0031
   Serial number: 19005315
   Coding: 00
   ASAM Dataset: EV_ReceiRearDriveSideHuf 002002
   ROD: EV_ReceiRearDriveSideHuf.rod
   VCID: 3E253B1280FB3E9B60F-806A

No fault code found.

-------------------------------------------------------------------------------
Address BC: Door Rear Pass (J1094)       Labels: None
   Part No SW: 7LA 035 593 A    HW: 7LA 035 593 A
   Component: SLD_Rx-Unit_p H07 0031
   Serial number: 19005313
   Coding: 00
   ASAM Dataset: EV_ReceiRearPasseSideHuf 002002
   ROD: EV_ReceiRearDriveSideHuf.rod
   VCID: 3E253B1280FB3E9B60F-806A

No fault code found.

-------------------------------------------------------------------------------
Address BE: Slid. Door Rear Left (J926)       Labels:* None
   Part No SW: 7LA 959 244 E    HW: 7LA 959 244 E
   Component: Slidingdoor_d H09 0034
   Serial number: 17001F4C
   Coding: 10
   ASAM Dataset: EV_SlideDoorDriveHufT6PA 001010
   ROD: EV_SlideDoorDriveHufT6PA.rod
   VCID: 4ACD67C2CC33823BCC7-801E

No fault code found.

-------------------------------------------------------------------------------
Address BF: Slid. Door Rear Right (J927)       Labels:* None
   Part No SW: 7LA 959 244 E    HW: 7LA 959 244 E
   Component: Slidingdoor_p H09 0034
   Serial number: 17002194
   Coding: 10
   ASAM Dataset: EV_SlideDoorPasseHufT6PA 001010
   ROD: EV_SlideDoorPasseHufT6PA.rod
   VCID: 4ACD67C2CC33823BCC7-801E

No fault code found.

-------------------------------------------------------------------------------
Address D6: Light Ctrl Left 2 (A31)       Labels: 7PP-941-572.clb
   Part No SW: 992 941 571 AA    HW: 992 941 571 A
   Component: LED1L         H08 9002
   ASAM Dataset: EV_LLPGen3LKEBODPO68X 001003
   ROD: EV_LLPGen3LKEBODPO68X_SK25.rod
   VCID: 619FA06E51C521633DD-8034

No fault code found.

-------------------------------------------------------------------------------
Address D7: Light Ctrl Right 2 (A27)       Labels: 7PP-941-572.clb
   Part No SW: 992 941 571 AA    HW: 992 941 571 A
   Component: LED1R         H08 9002
   ASAM Dataset: EV_LLPGen3RKEBODPO68X 001003
   ROD: EV_LLPGen3LKEBODPO68X_SK25.rod
   VCID: 619FA06E51C521633DD-8034

No fault code found.

-------------------------------------------------------------------------------
Address 810B: Aux. Air Heat. 2 (J604)       Labels:* None
   Part No SW: 7C0 963 273 B    HW: 7C0 963 273 B
   Component: LSH_DIESEL    006 0026
   Coding: 3200
   Shop #: WSC 00012 790 00075
   ASAM Dataset: EV_LSHECCSMNB 002018
   ROD: EV_LSHECCSMNB_002.rod
   VCID: 2A0D07426C73A23B2C7-807E

   Remote Control Auxiliary Heater:
   Subsystem 1 - Part No SW: 3Q0 963 513     HW: 3Q0 963 513
   Component: R64 D208L  004 0402
   Serial number: 00000000000001021196

No fault code found.

End----(Elapsed Time: 01:53, VBatt start/end: 12.0V/11.9V. VIgn 11.9V)-----

Last edited by a moderator:
Back
Top
