I know this is a T6 forum but my other car is a Seat Ateca, so asking in the pub!
I've got a DSG 4drive and got this error message today - Gearbox in emergency mode, reverse gear not available.
Any suggestions on things to check for, or is it an expensive trip to the garage?
VCDS scan -
I've got a DSG 4drive and got this error message today - Gearbox in emergency mode, reverse gear not available.
Any suggestions on things to check for, or is it an expensive trip to the garage?
VCDS scan -
Code:
Chassis Type: 5F-SE37 (3Q0)
Scan: 01 02 03 05 08 09 10 13 15 16 17 19 22 2B 42 44 4B 52 5F 69
6C 6D D6 D7
VIN: Mileage: 118016km-73331miles
01-Engine -- Status: OK 0000
02-Auto Trans -- Status: Malfunction 0010
03-ABS Brakes -- Status: Malfunction 0010
05-Acc/Start Auth. -- Status: Malfunction 0010
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
13-Auto Dist. Reg -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
22-AWD -- Status: OK 0000
2B-Steer. Col. Lock -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
4B-Multifunc. Module -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
5F-Information Electr. -- Status: Malfunction 0010
69-Trailer -- Status: OK 0000
6C-Back-up Cam. -- Status: OK 0000
6D-Trunk Elect. -- Status: OK 0000
D6-Light Ctrl Left 2 -- Status: OK 0000
D7-Light Ctrl Right 2 -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-DFHA) Labels:. 04L-907-309-V1.clb
Part No SW: 04L 906 026 NQ HW: 04L 907 309 P
Component: R4 2.0l TDI H25 3614
Revision: B4H25--- CVN: 77A1EADEB866C2AD
Coding: 01250032032605083000
Shop #: WSC 33361 790 00121
ASAM Dataset: EV_ECM20TDI01104L906026NQ 004001
ROD: EV_ECM20TDI01104L906026NQ.rod
VCID: 0655978C78AB445A65F-8052
VINID: 9A38EAAAA156A981851420481CFA8E8237
No fault code found.
Readiness: 0 0 0 0 0
-------------------------------------------------------------------------------
Address 02: Auto Trans (J743) Labels:. 0BH-927-711.clb
Part No SW: 0GC 300 011 Q HW: 0GC 927 711 G
Component: GSG DQ381 H06 0706
Revision: 00H06V07 CVN: 93A8AD8B
Coding: 0014
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_TCMDQ381061 001
ROD: EV_TCMDQ381061.rod
VCID: 30391154AAAF3AEAEF3-8064
No subsystems:
1 Fault Found:

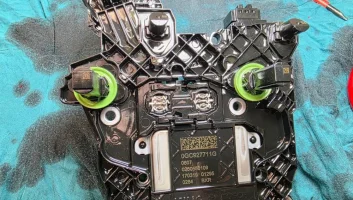

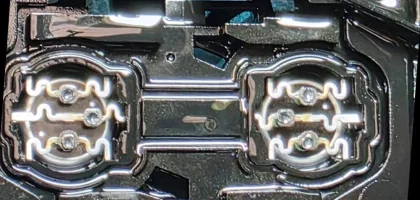

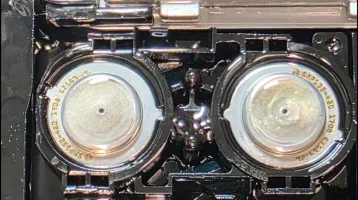

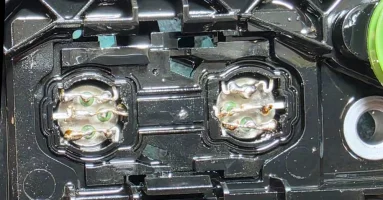

10668 - Position Sensor for Clutch 2
P1736 00 [10101100] - Electrical Malfunction
MIL ON - Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 0
Fault Frequency: 3
Mileage: 118016 km
Date: 2024.09.01
Time: 16:46:01
Engine RPM: 0.00 /min
Vehicle speed: 0 km/h
Coolant temperature: 91 C
Clutch: primary stat: Neutral
selected gear: GANG_1
Driving position: d
Engine torque: -32 Nm
Control Module temperature: 96 C
Accelerator pedal position: 14.5 %
DTC memory status: 38
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels: 5Q0-907-379-IPB-V1.clb
Part No SW: 5Q0 614 517 CE HW: 5Q0 614 517 AC
Component: ESC H25 0413
Revision: 00000000 Serial number: 60607000001920
Coding: 22EE8A9234250C6E8778070862CA2844512C30E1E046147D30625074E203430000100212121212A635351919323200
Shop #: WSC 33361 790 00121
ASAM Dataset: EV_Brake1UDSContiMK100IPB 036010
ROD: EV_Brake1UDSContiMK100IPB_036_VW37.rod
VCID: 76B5E74C084B54DA75F-8022
1 Fault Found:
16401 - Tire Pressure Warning
C102D 00 [00001001] - -
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 2
Fault Frequency: 2
Reset counter: 8
Mileage: 116885 km
Date: 2024.08.05
Time: 08:39:01
-------------------------------------------------------------------------------
Address 05: Acc/Start Auth. (J518) Labels:| 5Q0-959-435.clb
Part No SW: 3Q0 959 435 E HW: 3Q0 959 435 E
Component: VWKESSYMQB 036 0811
Revision: 00036000 Serial number: 0433364202 Dataset Number: V03935207KQ 0015
Coding: 032C0C0F03
Shop #: WSC 33361 790 00121
ASAM Dataset: EV_KessyHellaMQBAB 004039
ROD: EV_KessyHellaMQBAB.rod
VCID: 3C21356476E7CE8A43B-8068
Rear lid opener control module:
Subsystem 1 - Part No SW: 3G0 962 243 A HW: 3G0 962 243 A
Component: GEB.F.Heckoef H17 0903
Serial number: 98136362
2 Faults Found:
65794 - Function Restricted due to Insufficient Voltage
U1400 00 [00001000] - -
[Function restriction due to temp low voltage]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 139
Reset counter: 7
Mileage: 101076 km
Date: 2023.06.20
Time: 06:25:38
Terminal_15_Kessy_specified_value: On
Terminal_15_Kessy_actual_value: On
Terminal_15_central electric_actual_value: On
Terminal_15red_Kessy_specified_value: On
Terminal_15red_Kessy_actual_value: On
Terminal_S_Kessy_specified_value: On
Terminal_S_Kessy_actual_value: On
Terminal_S_central electric_actual_value: On
Terminal_50_Kessy_specified_value: OFF
Terminal_50_Kessy_actual_value: OFF
ZAT_pressed: OFF
Park selector lever position: Not engaged and not locked
Request active: Condition not met
Enabling Steering Column Lock: Condition not met
Enabling immobilizer: Condition met
No active error mode: Condition met
Key signature validity: Condition met
Control Module Voltage: 8.211 V
Driver information key position copy workshop: not active
Driver information: roll warning: not active
Driver information: emergency shutdown: not active
Internal_key_position: no_message
Driver information comfort switching: not active
Vehicle speed: 0.0 km/h
Engine RPM: 141.0 /min
Status of vehicle locking: Vehicle unlocked
Approach to the inside: not active
Actuation to the inside: not active
Approach to the outside: not active
Actuation to the outside: not active
Pulling actuation: outside door handle: not active
Coding information: coded
Approach to the inside: not active
Actuation to the inside: not active
Approach to the outside: not active
Actuation to the outside: not active
Pulling actuation: outside door handle: not active
Coding information: coded
Approach to the inside: not active
Actuation to the inside: not active
Approach to the outside: not active
Actuation to the outside: not active
Pulling actuation: outside door handle: not active
Coding information: Not coded
Approach to the inside: not active
Actuation to the inside: not active
Approach to the outside: not active
Actuation to the outside: not active
Pulling actuation: outside door handle: not active
Coding information: Not coded
Driver door: closed
Front Passenger Door: closed
Left rear door: closed
Right rear door: closed
Active_LF_scans: Init
ID-sensor 1 authentication: status: No response
ID-sensor 2 authentication: status: No response
ID-sensor 3 authentication: status: No response
ID-sensor 4 authentication: status: No response
SPN_Byte 0: 00
SPN_Byte 1: 00
SPN_Byte 2: 00
133124 - Databus
U1121 00 [00001000] - Missing Message
[Message Klemmen_status_01 missing]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 4
Fault Frequency: 1
Reset counter: 5
Mileage: 117852 km
Date: 2024.08.22
Time: 17:18:40
Terminal_15_Kessy_specified_value: OFF
Terminal_15_Kessy_actual_value: OFF
Terminal_15_central electric_actual_value: Timeout
Terminal_15red_Kessy_specified_value: OFF
Terminal_15red_Kessy_actual_value: OFF
Terminal_S_Kessy_specified_value: OFF
Terminal_S_Kessy_actual_value: OFF
Terminal_S_central electric_actual_value: Timeout
Terminal_50_Kessy_specified_value: OFF
Terminal_50_Kessy_actual_value: OFF
ZAT_pressed: OFF
Park selector lever position: Engaged and locked
Request active: Condition not met
Enabling Steering Column Lock: Condition not met
Enabling immobilizer: Condition not met
No active error mode: Condition met
Key signature validity: Condition met
Control Module Voltage: 12.065 V
Driver information key position copy workshop: not active
Driver information: roll warning: not active
Driver information: emergency shutdown: not active
Internal_key_position: no_message
Driver information comfort switching: not active
Vehicle speed: 0.0 km/h
Engine RPM: 0.0 /min
Status of vehicle locking: Vehicle unlocked
Approach to the inside: not active
Actuation to the inside: not active
Approach to the outside: not active
Actuation to the outside: not active
Pulling actuation: outside door handle: not active
Coding information: coded
Approach to the inside: not active
Actuation to the inside: not active
Approach to the outside: not active
Actuation to the outside: not active
Pulling actuation: outside door handle: not active
Coding information: coded
Approach to the inside: not active
Actuation to the inside: not active
Approach to the outside: not active
Actuation to the outside: not active
Pulling actuation: outside door handle: not active
Coding information: Not coded
Approach to the inside: not active
Actuation to the inside: not active
Approach to the outside: not active
Actuation to the outside: not active
Pulling actuation: outside door handle: not active
Coding information: Not coded
Driver door: closed
Front Passenger Door: closed
Left rear door: closed
Right rear door: closed
Active_LF_scans: Keyminder_Scan
ID-sensor 1 authentication: status: No response
ID-sensor 2 authentication: status: No response
ID-sensor 3 authentication: status: No response
ID-sensor 4 authentication: status: No response
SPN_Byte 0: 00
SPN_Byte 1: 00
SPN_Byte 2: 00
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
Address 13: Auto Dist. Reg (J428) Labels:| 2Q0-907-572.clb
Part No SW: 2Q0 907 572 J HW: 2Q0 907 572 B
Component: ACCCONTIMQB H01 0156
Dataset Number: V03935254KX 0001
Coding: 3200408B50FF8728749C8065004083
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_ACCMRRCONTIVW376 001011
ROD: EV_ACCMRRCONTIVW376_001_VW37.rod
VCID: 3B23367873E9C9B24A1-806E
1 Fault Found:
1389 - Function Restricted due to Insufficient Voltage
U1400 00 [00001000] - -
[FAULT_VBAT_BUSMON_LOW]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 252
Mileage: 117643 km
Date: 2024.08.19
Time: 08:06:11
Voltage terminal 15: 9.5 V
Control Module temperature: 14 C
Velocity_vehicle_reference: 0.00 m/s
Longitudinal_acceleration_vehicle_reference: 0.13 m/s
Status_ACC_System: ACC_reversible_error
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5Q0-959-655.clb
Part No SW: 3Q0 959 655 AK HW: 3Q0 959 655 AK
Component: Airbag VW21 004 0306
Revision: -------- Serial number: 003R6P396XP8 Dataset Number: V03935204AR 0009
Coding: 98CCC0C0000000005C5400CC008800000065
Shop #: WSC 33361 790 00121
ASAM Dataset: EV_AirbaVW21TS6VW48X 001010
ROD: EV_AirbaVW21TS6VW48X_VW37.rod
VCID: 074B9A887FA15D521E9-8052
Crash sensor for side airbag: driver side:
Subsystem 1 - Part No SW: ----------- HW: 454 000 602 17
Component: SideSensor_Df 008 0887
Serial number: 357000000009D961522J
Coding: 2D2D2D
Front Passenger's Side Airbag Crash Sensor:
Subsystem 2 - Part No SW: ----------- HW: 454 000 602 17
Component: SideSensor_Pf 008 0887
Serial number: 358000000003BCB8A22W
Coding: 2D2D2D
Rear Side Airbag Crash Sensor (on driver's side):
Subsystem 3 - Part No SW: ----------- HW: 454 800 202 17
Component: SideSensor_Dr 301 0148
Serial number: 35100D90E130F000000L
Coding: 2D2D2D
Passenger side rear thorax airbag crash sensor:
Subsystem 4 - Part No SW: ----------- HW: 454 800 802 17
Component: SideSensor_Pr 301 0148
Serial number: 352003539100F0000003
Coding: 2D2D2D
Crash sensor for front airbag: driver side:
Subsystem 5 - Part No SW: ----------- HW: 454 801 701 17
Component: FrontSensor_D 304 0149
Serial number: 355009C9C920D000000-
Coding: 2D2D2D
No fault code found.
-------------------------------------------------------------------------------
Address 16: Steering wheel (J524) Labels:| 5Q0-953-549.clb
Part No SW: 3Q0 953 521 DQ HW: 5Q0 953 569 A
Component: Lenks.Modul 075 0235
Revision: FF035035 Serial number: 20170223500563
Coding: 1414
Shop #: WSC 33361 790 00121
ASAM Dataset: EV_SMLSVALEOMQB 001015
ROD: EV_SMLSVALEOMQB.rod
VCID: 025D8B9C5483787A497-8056
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5G0-920-XXX-17.clb-SRI3
Part No SW: 5F0 920 951 D HW: 5F0 920 951 D
Component: KOMBI 306 8311
Coding: 27A4201AAB80260001886A011001000000000000
Shop #: WSC 73430 031 00121
ASAM Dataset: EV_DashBoardVDDMQBAB 009051
ROD: EV_DashBoardVDDMQBAB_009_VW26.rod
VCID: 290FFC3089754B2228D-807C
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:| 3Q0-907-530-V1.clb
Part No SW: 3Q0 907 530 C HW: 3Q0 907 530 C
Component: GW MQB High 515 5286
Serial number: 28021710522348 Dataset Number: V03935232PC 0009
Coding: 030500F40F086A00EB0022481E0F00010001050000000000000000000000
Shop #: WSC 33361 790 00114
GVL: 01D63C0008000600C00C80000002C80000000000000200000000000000000000
ASAM Dataset: EV_GatewNF 013020
ROD: EV_GatewNF_VW37.rod
VCID: 2F3B1228B7912512F69-807A
Generator:
Multifunction steering wheel control module:
Subsystem 2 - Part No SW: 5F0 959 537 A HW: 5F0 959 537 A
Component: E221__MFL-PR6 H04 0130
Serial number: 000000000A0250250117
Coding: 012000
Battery Monitoring Control Module:
Subsystem 3 - Part No SW: 5Q0 915 181 J HW: 5Q0 915 181 J
Component: J367-BDMConti H03 1050
Serial number: 75886000001702142C3E
No fault code found.
-------------------------------------------------------------------------------
Address 22: AWD (J492) Labels:| 0CQ-907-554-V1.clb
Part No SW: 0CQ 907 554 H HW: 0CQ 525 130
Component: Haldex4Motion H52 7083
Serial number: HA1-00031.01.17 Dataset Number: v1260x015G0 0000
Coding: 0001
Shop #: WSC 33361 790 00121
ASAM Dataset: EV_AllWheelContrHA1VW37X 004013
ROD: EV_AllWheelContrHA1VW37X_004_VW37.rod
VCID: 4ACD63BC2C33603AC17-801E
No fault code found.
-------------------------------------------------------------------------------
Address 2B: Steer. Col. Lock (J764) Labels:| 1EA-905-861.clb
Part No SW: 3Q0 905 861 HW: 3Q0 905 861
Component: ELV-MQBB H05 0032
Serial number: 17000043751018
Coding: 0800000000000000
Shop #: WSC 33361 790 00121
ASAM Dataset: EV_ELVMarquMQBB 001007
ROD: EV_ELVMarquMQBB_VW37.rod
VCID: 71BFD450612573E2A0D-8024
No fault code found.
-------------------------------------------------------------------------------
Address 42: Door Elect, Driver (J386) Labels:| 5QX-959-X93-42.clb
Part No SW: 5Q4 959 593 E HW: 5Q4 959 593 B
Component: TSG FS 010 0032
Serial number: 0000243346823 Dataset Number: V03935204AG 0011
Coding: 00311220D001040000001000
Shop #: WSC 33361 790 00121
ASAM Dataset: EV_DCUDriveSideEWMAXCONT 006001
ROD: EV_DCUDriveSideEWMAXKLO.rod
VCID: 47CB5A883F219D52DE9-8012
Rear Driver Side Door Control Module:
Subsystem 1 - Part No SW: 5Q0 959 812 A HW: 5Q0 959 812 A Labels: 5QX-959-81X-V1.CLB
Component: FOND_FHSG_DRV 005 0005
Serial number: 00000000000013572231
Coding: 3D0000
No fault code found.
-------------------------------------------------------------------------------
Address 44: Steering Assist (J500) Labels:| 5Q0-909-144.clb
Part No SW: 5Q0 909 144 T HW: 5Q0 909 144 R
Component: EPS_MQB_ZFLS 128 1072
Dataset Number: V03935232BZ 0004
Coding: 8307
Shop #: WSC 33361 790 00121
ASAM Dataset: EV_SteerAssisMQB 013144
ROD: EV_SteerAssisMQB_013.rod
VCID: 45D75080052D8F422C5-8010
No fault code found.
-------------------------------------------------------------------------------
Address 4B: Multifunc. Module (J745) Labels:| 3Q0-907-338-V1.clb
Part No SW: 3Q0 907 338 HW: 3Q0 907 338
Component: FCM MQB Low 001 0285
Serial number: 02031710800812 Dataset Number: V03935229GF 0008
Coding: 000000070100065600000900000000000000000000000000000000000000
Shop #: WSC 73430 790 00063
ASAM Dataset: EV_MultiModulContiVW48X 001010
ROD: EV_MultiModulContiVW48X_001.rod
VCID: 72BDDB5C642348FA597-8026
No fault code found.
-------------------------------------------------------------------------------
Address 52: Door Elect, Pass. (J387) Labels:| 5QX-959-X92-52.clb
Part No SW: 5Q4 959 592 E HW: 5Q4 959 592 B
Component: TSG BFS 010 0032
Serial number: 0000240937049 Dataset Number: V03935204AJ 0011
Coding: 00311220D001040000001000
Shop #: WSC 33361 790 00121
ASAM Dataset: EV_DCUPasseSideEWMAXCONT 006001
ROD: EV_DCUPasseSideEWMAXKLO.rod
VCID: 46D5578C382B845A25F-8012
Rear Passenger Door Control Module:
Subsystem 1 - Part No SW: 5Q0 959 811 A HW: 5Q0 959 811 A Labels: 5QX-959-81X-V1.CLB
Component: FOND_FHSG_PSG 005 0005
Serial number: 00000000000013491716
Coding: 250000
No fault code found.
-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794) Labels:| 5F0-035-MIB-STD2.clb
Part No SW: 5QA 035 858 A HW: 5QA 035 858 A
Component: MU-S-ND-ER H30 0369
Serial number: SEZAZ2T1040625 Dataset Number: V03935233XC 0003
Coding: 04230601D70A000011111101008808232F0100C601200100C6
Shop #: WSC 73430 790 00063
ASAM Dataset: EV_MUStd6C1TSAT 001015
ROD: EV_MUStd6C1TSAT_SE37.rod
VCID: 45D75080052D8F422C5-8010
Display and control head 1 for information electronics:
Subsystem 1 - Part No SW: 575 919 606 HW: 575 919 606
Component: ABT_High-2_N H41 1041
Serial number: SEZ8Z9TCB00VJJ
Data carrier:
Subsystem 2 - Part No SW: V03 825 254 Q HW: -----------
Component: ECE DL3 2021 --- 1520
Serial number: --------------------
3 Faults Found:
1555 - Check Software Version Management
B201A 00 [00001001] - -
[Check software version management]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 198
Mileage: 92808 km
Date: 2022.12.01
Time: 13:29:10
Voltage terminal 30: 13.3 V
Status_Software_Version_Management-module_name: S
2571 - Navigation System
B126C F2 [00001000] - Navigation Database not Enabled
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 254
Reset counter: 8
Mileage: 64663 km
Date: 2021.05.04
Time: 15:50:11
Voltage terminal 30: 12.2 V
0532 - Front Right Bass Speaker
B1062 13 [00001000] - Open Circuit
[Tieftonlautsprecher Kanal 5: Unterbrechung (DC-Diagnose)]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 16
Reset counter: 8
Mileage: 113906 km
Date: 2024.05.15
Time: 06:54:29
Voltage terminal 30: 12.2 V
-------------------------------------------------------------------------------
Address 69: Trailer (J345) Labels:| 5Q0-907-383.clb
Part No SW: 5Q0 907 383 G HW: 5Q0 907 383 D
Component: Anheanger H21 0203
Serial number: 00006789831368 Dataset Number: v12400160G0 0016
Coding: 0100000202000000
Shop #: WSC 131071 1023 2097151
ASAM Dataset: EV_TrailFunctGener2Hella 001008
ROD: EV_TrailFunctGener2Hella_VW26.rod
VCID: 3B23367873E9C9B24A1-806E
No fault code found.
-------------------------------------------------------------------------------
Address 6C: Back-up Cam. (J928) Labels:* None
Part No SW: 5Q0 907 556 B HW: 5Q0 907 556
Component: Areaview 2 H13 0607
Serial number: C854707JG011000 Dataset Number: V03935237TJ 0003
Coding: 06230601270FA0000060608C
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_CamSysRVAV2ARCE2MQBAB 006017
ROD: EV_CamSysRVAV2ARCE2MQBAB_006_SK37.rod
VCID: 3829297442DFE2AAA73-806C
No fault code found.
-------------------------------------------------------------------------------
Address 6D: Trunk Elect. (J605) Labels:| 5Q0-959-107.clb
Part No SW: 5Q0 959 107 L HW: 5Q0 959 107 J
Component: HDSG-Modul H13 0261
Revision: -------- Serial number: 31233788000000 Dataset Number: V03935245M0003
Coding: 1988
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_DeckLidCONTIAU736 001014
ROD: EV_DeckLidCONTIAU736_VW37.rod
VCID: 41DF44901105A36210D-8014
No fault code found.
-------------------------------------------------------------------------------
Address D6: Light Ctrl Left 2 (A31) Labels: 7P5-941-591.clb
Part No SW: 7P5 941 591 A HW: 7P5 941 591 A
Component: LED1L H06 0002
ASAM Dataset: EV_LED_PLUS_L_KEBODAVW416 001003
ROD: EV_LED_PLUS_L_KEBODAVW416.rod
VCID: 3A2D337C7CD3F0BA517-806E
No fault code found.
-------------------------------------------------------------------------------
Address D7: Light Ctrl Right 2 (A27) Labels: 7P5-941-591.clb
Part No SW: 7P5 941 591 A HW: 7P5 941 591 A
Component: LED1R H06 0002
ASAM Dataset: EV_LED_PLUS_R_KEBODAVW416 001003
ROD: EV_LEDPLUSRightKEBODVW416.rod
VCID: 3A2D337C7CD3F0BA517-806E
No fault code found.
End----------(Elapsed Time: 01:52, VBatt start/end: 13.2V/13.2V)-----------
