Cruise Control Retrofit Euro6
- Thread starter Allan Smith
- Start date
Dusankooo
New Member
Hello. I do auto scan. I try coding. I have problem.
Now i have instaled mfsw. Volume, next, etc work great. Only css dont work.
When coding In byte is “nothing” =00 works mfsw. When i get
Byte 29 i set 6. = 40
Mfsw stop working.
Can you tell me where is problém ?
Thank you.
Now i have instaled mfsw. Volume, next, etc work great. Only css dont work.
When coding In byte is “nothing” =00 works mfsw. When i get
Byte 29 i set 6. = 40
Mfsw stop working.
Can you tell me where is problém ?
Thank you.
Code:
Thursday,30,March,2023,14:26:00:39744
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 17.1.3.0 (x64)
Data version: 20170220 DS267.3
www.Ross-Tech.com
VIN: WV1ZZZ7HZHH002258 License Plate:
Chassis Type: 7H (7E0)
Scan: 01 03 04 08 09 10 15 17 19 25 56 61 69 0B
VIN: WV1ZZZ7HZHH002258
01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
25-Immobilizer -- Status: OK 0000
56-Radio -- Status: Cannot be reached 1100
61-Battery Regul. -- Status: OK 0000
69-Trailer -- Status: Malfunction 0010
-------------------------------------------------------------------------------
Address 01: Engine (2D2D2-CXGB) Labels: 04L-907-309-V2.clb
Part No SW: 04L 906 056 KA HW: 04L 907 445
Component: R4 2.0l TDI H02 4047
Revision: 23002001
Coding: 00114014433401090000
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_EC2M0TDI03004L906056KA 004003
ROD: N/A
VCID: 76E43D9AC95C7DF1C3-8022
No ASAM data for: "EV_EC2M0TDI03004L906056KA" (VN75)
1 Fault Found:
25111 - ROD - Unknown Error Code
- 00 [047]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 10
Mileage: 139172 km
Date: 2076.01.13
Time: 15:49:57
Readiness: N/A
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels: Redir Fail!
Part No SW: 7E0 907 379 P HW: 7E0 907 379 M
Component: ESC H05 0132
Revision: 00000000 Serial number: 41296000002775
Coding: 517E4098256284808A77027BA48A21E6780000
Shop #: WSC 02739 790 50316
ASAM Dataset: EV_Brake1ESCCNOTIVN75XGP2 011001
ROD: N/A
VCID: 3F8A98BEA6E6FCB9D0-806A
No ASAM data for: "EV_Brake1ESCCNOTIVN75XGP2" (VN75)
No fault code found.
-------------------------------------------------------------------------------
Address 04: Steering Angle (G085) Labels: 6R0-959-654.clb
Part No SW: 6R0 959 654 HW: 6R0 959 654
Component: LENKW.SENSOR H07 0070
Serial number: 03051613470240
Coding: 01
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LWSKLOVW25X 005001
ROD: EV_LWSKLOVW25X.rod
VCID: 7EF425BAE16C35B19B-802A
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301) Labels: 7E5-907-047.clb
Part No SW: 7E0 907 047 AJ HW: 7E0 907 047 AJ
Component: Climatic-T5 H22 0708
Revision: 00001002
Coding: 0000000003
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_ClimaticT5 A01003
ROD: EV_ClimaticT5.rod
VCID: 72EC018AA53461D1EF-8026
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels: 7E0-937-BCM-V1.clb
Part No SW: 7E0 937 090 B HW: 7E0 937 090
Component: BCM PQ25 Max4 H81 0744
Revision: B9081001 Serial number: 0982 138160620
Coding: 7AA8393A0A212012002809742C2B8CD50F80710F60464D60320400230800
Shop #: WSC 02737 022 744100
VCID: 2A5CD9EA4564691197-807E
Subsystem 1 - Part No SW: 7E0 959 801 M HW: 7E0 959 801 M
Component: J386__TSG_FT 003 0653
Serial number: KU0KU009051661305718
Coding: 0400A0
Subsystem 2 - Part No SW: 7E0 959 802 M HW: 7E0 959 802 M
Component: J387__TSG_BT 003 0653
Serial number: KU0KU019051661406149
Coding: 1400A0
Subsystem 3 - Part No SW: 7E0 959 442 HW: 7E0 959 442 Labels: 3C8-959-537.CLB
Component: E221__MFL-DC1 H02 0103
Serial number: 29160002065900016474
Coding: B0FFFF
No fault code found.
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels: 1Z0-919-475-V2.clb
Part No SW: 1Z0 919 475 G HW: 7N0 919 475
Component: PARKHILFE 8K H06 0011
Revision: --H06--- Serial number: 28201429400380
Coding: 118006
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_EPHVA18SKxxx0000 002001
ROD: EV_EPHVA18SKxxx0000.rod
VCID: 45868A56C43AA6699A-8010
3 Faults Found:
1112596 - Front Right Parking Aid Sensor
B10FA 14 [008] - Open or Short to Ground
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 3
Fault Frequency: 4
Reset counter: 250
Mileage: 138993 km
Date: 2076.14.10
Time: 11:40:59
1112625 - Front Right Parking Aid Sensor
B10FA 31 [008] - No Signal
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 3
Fault Frequency: 1
Reset counter: 250
Mileage: 138999 km
Date: 2076.14.10
Time: 16:33:21
1112580 - Front Right Parking Aid Sensor
B10FA 04 [008] - Internal System Fault
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 3
Fault Frequency: 3
Reset counter: 251
Mileage: 138999 km
Date: 2076.14.10
Time: 16:32:38
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels: 5K0-959-655.clb
Part No SW: 7E0 959 655 G HW: 7E0 959 655 G
Component: VW10Airbag00C H08 0018
Revision: -------- Serial number: 003V3000UR6E
Coding: 000000000000000000000000000000003043
Shop #: WSC 02734 790 50316
ASAM Dataset: EV_IarbaVW10BPAVW12X 001028
ROD: N/A
VCID: 3A7CE9AABDC4D991E7-806E
No ASAM data for: "EV_IarbaVW10BPAVW12X" (VN75)
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels: 5K0-920-xxx-17.clb
Part No SW: 7E0 920 870 S HW: 7E0 920 870 S
Component: KOMBI H03 1104
Serial number: 00000000000000
Coding: 140B010300
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_Kobmi_UDS_VDD_RM09 A05733
ROD: N/A
VCID: 397EF6A6B8C2D289EE-806C
No ASAM data for: "EV_Kobmi_UDS_VDD_RM09" (VW36 *)
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels: None
Part No SW: 7E0 909 901 HW: 7E0 937 090
Component: GW-K-CAN TP20 H81 0744
Revision: B9081001
Coding: 042205
Shop #: WSC 02737 022 744100
VCID: 68D863E29BE89B0141-803C
1 Fault Found:
01304 - Radio
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 2
Fault Frequency: 1
Reset counter: 157
Mileage: 93723 km
Time Indication: 0
Date: 2045.14.03
Time: 15:02:20
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels: 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H03 1104
Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
VCID: 6ADC19EA8DE4A91157-803E
No fault code found.
-------------------------------------------------------------------------------
Address 56: Radio
Cannot be reached
-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840) Labels: 1K0-907-534.clb
Part No SW: 7E0 907 534 HW: 7E0 937 090
Component: Batt.regelung H81 0744
Serial number: 0982 138160620
Coding: 330B1A73
Shop #: WSC 12345 123 12345
VCID: 68D863E29BE89B0141-803C
Subsystem 1 - Part No SW: 7E0 915 181 K HW: 7E0 915 181 K
Component: J367-BDMConti H03 1050
Serial number: 75410903001605040460
No fault code found.
-------------------------------------------------------------------------------
Address 69: Trailer (J345) Labels: 1K0-907-383-V2.clb
Part No SW: 1K0 907 383 H HW: 1K0 907 383 G
Component: Anhaenger H12 0130
Revision: 3B001001 Serial number: 00000403173457
Coding: 410D000103000000
Shop #: WSC 02739 790 00000
VCID: 326CC18A6DB421D12F-8066
2 Faults Found:
02565 - Trailer; Right Turn Signals (M63)
010 - Open or Short to Plus - MIL ON
Freeze Frame:
Fault Status: 11101010
Fault Priority: 3
Fault Frequency: 1
Reset counter: 136
Mileage: 132926 km
Time Indication: 0
Date: 2008.14.10
Time: 13:32:16
02566 - Trailer; Left Turn Signals (M62)
010 - Open or Short to Plus - MIL ON
Freeze Frame:
Fault Status: 11101010
Fault Priority: 3
Fault Frequency: 1
Reset counter: 136
Mileage: 132926 km
Time Indication: 0
Date: 2008.14.10
Time: 13:32:16
End-------------------------(Elapsed Time: 02:47)--------------------------
Last edited by a moderator:
Well, try to set BCM byte 17 bit 2 => 1
Thus the byte 17 current coding 80 will change to 84.
This defines CC controls to be on MFSW.
Dusankooo
New Member
i do it but problem...
- byte 17 i get 2 (84)
- ok
MFSW - ok (only volume, next song, maxi dot) cc nothing
then i get 29 byte to "40" = MFSW dont work, do nothing, not CCS, not volume
can you resend me good wiring? i try chceck wiring, but i dont have "schema" and i dont good understand english
Just double-checking - your van did not have cruise control before?
Did you connect from coil connector T41_pin_10 to BCM connector T73b_pin_36 (white connector)?
www.t6forum.com
Did you connect from coil connector T41_pin_10 to BCM connector T73b_pin_36 (white connector)?

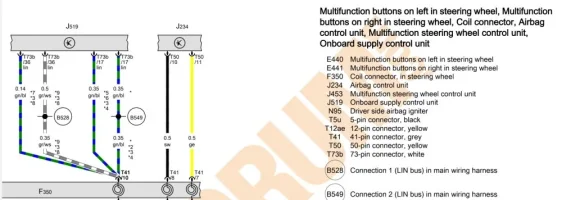

T6 - MFSW Multifunction Steering Wheel Wiring Diagram
MFSW Circuit Diagram Covers both types of button setups with (EU6) and without (EU5) cruise control on the wheel VIP Membership is required to download this document
Dusankooo
New Member
dont have CCSJust double-checking - your van did not have cruise control before?
Did you connect from coil connector T41_pin_10 to BCM connector T73b_pin_36 (white connector)?
T6 - MFSW Multifunction Steering Wheel Wiring Diagram
MFSW Circuit Diagram Covers both types of button setups with (EU6) and without (EU5) cruise control on the wheel VIP Membership is required to download this document
original have only plastic SW
i try it check
Dusankooo
New Member
i dont have VIP member, i can not download itJust double-checking - your van did not have cruise control before?
Did you connect from coil connector T41_pin_10 to BCM connector T73b_pin_36 (white connector)?
T6 - MFSW Multifunction Steering Wheel Wiring Diagram
MFSW Circuit Diagram Covers both types of button setups with (EU6) and without (EU5) cruise control on the wheel VIP Membership is required to download this document
You should consider to become a VIP member
Then also a wire from T41_pin_11 to connector T10_pin_1 (E-box under battery) is needed - to the ECU itself.
VCDS > 09-Central electrics > Measurement blocks > Group 004
- Any change in the values when you press CC on/off button?
- Any change in the values when you press Cancel, SET, RESET buttons?

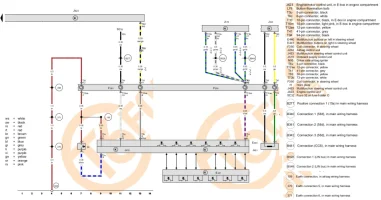

This combined wiring diagram should be helpful and should eliminate any potential confusion.
@Dusankooo can you clear all of your old faults and do another fresh Autoscan and post it here?
That's excellent! Congrats! What was the problem?
I'm afraid the +/- buttons give only 10 km/h step.
Dusankooo
New Member
Bad wiring. My friend get cable to pin 17. Cable must go to 36 b In bcm.
I cut new wire. Get In the 36. New coding In byte 29. Everything go perfect.
Now In pin 17 is originál blue/green wire.
New wire is In 36.
Than mfsw dont work. Then i coding byte. 29. Everything now go perfect.
I am so happy. Very Easy work. Only 5h to do.
I cut new wire. Get In the 36. New coding In byte 29. Everything go perfect.
Now In pin 17 is originál blue/green wire.
New wire is In 36.
Than mfsw dont work. Then i coding byte. 29. Everything now go perfect.
I am so happy. Very Easy work. Only 5h to do.
