[Guide] How To Retrofit MFSW And Cruise Control To T6 Eu6 2019 Startline - Also Hacking DSG Paddles For CCS

Not saying it's an issue but he does specifically mention there could be extra coding using DSG with manual
Selecting the Parts Needed



Also to consider is the buttons are lit up red on T6s and Polos whereas Golfs are white. If you have a DSG then flappy paddles would also be nice and simple upgrade but for a manual they are not used but OK to fit (with an extra bit of coding).

Section 6 has some information on how to remove the buttons if needed and coding for the flappy paddles.

Please post full current VCDS Auto-Scan.
Code:
Saturday,15,January,2022,13:01:04:05012
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 21.9.0.2 (x64)
Data version: 20210903 DS330.0
www.Ross-Tech.com


VIN: WV1ZZZ7HZHH055263   License Plate:


Chassis Type: 7H-VN75 (7E0)
Scan: 01 03 04 08 09 10 13 15 17 18 19 20 25 5F 61 69 6E

VIN: WV1ZZZ7HZHH055263   Mileage: 60960km-37878miles

01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
13-Auto Dist. Reg -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
18-Aux. Heat -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
20-High Beam Assist. -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
5F-Information Electr. -- Status: OK 0000
61-Battery Regul. -- Status: OK 0000
69-Trailer -- Status: OK 0000
6E-Ctrl Head Roof -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine (2D2D2-CXGB)       Labels:. 04L-907-309-V2.clb
   Part No SW: 04L 906 056 KA    HW: 04L 907 445
   Component: R4 2.0l TDI   H02 4047
   Revision: 23002001
   Coding: 0011401C432401090000
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_ECM20TDI03004L906056KA 004003
   ROD: EV_ECM20TDI03004L906056KA.rod
   VCID: 76E9DC8BC9D4A9396B-8022
   VINID: 9E606AAAA1D8A986001450860C36B0FBD6

1 Fault Found:
25797 - No Communication with Diagnostic Gateway
          U0146 00 [039] - -
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 7
                    Mileage: 60965 km
                    Date: 2060.01.14
                    Time: 03:27:16

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 7 °C
                    Intake air temperature: 0 °C
                    Ambient air pressure: 1010 mbar
                    Voltage terminal 30: 11.820 V
                    Unlearning counter according OBD: 40
                    Accelerator pedal travel: raw value: 0.00 %
                    CAN status - engine control module: 0
                    Cruise Control System (CCS): status: Initialization
                    selected gear: Shifting process active

Readiness: N/A

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels: 7E0-907-37x-MK100ESC.clb
   Part No SW: 7E0 907 379 P    HW: 7E0 907 379 M
   Component: ESC           H06 0133
   Revision: 00000000    Serial number: 42526000000325
   Coding: 517E4098256784838A77027CA485219378F100
   Shop #: WSC 02739 790 50316
   ASAM Dataset: EV_Brake1ESCCONTIVN75XGP2 011001
   ROD: EV_Brake1ESCCONTIVN75XGP2_011.rod
   VCID: 3F8779AFA66E287178-806A

No fault code found.

-------------------------------------------------------------------------------
Address 04: Steering Angle (G085)       Labels:* 6R0-959-654.clb
   Part No SW: 6R0 959 654     HW: 6R0 959 654
   Component: LENKW.SENSOR  H07 0070
   Serial number: 26081613470606
   Coding: 01
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_LWSKLOVW25X 005001
   ROD: EV_LWSKLOVW25X.rod
   VCID: 7EF9C4ABE1E4E17933-802A

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301)       Labels:| 7E5-907-047.clb
   Part No SW: 7E0 907 047 AF    HW: 7E0 907 047 AF
   Component: Climatic-T5   H22 0708
   Revision: 00001002
   Coding: 0000000003
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_ClimaticT5 A01003
   ROD: EV_ClimaT5Basis.rod
   VCID: 6ED9F4EBB18491F9A3-803A

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 7E0-937-BCM-V1.clb
   Part No SW: 7E0 937 090 B    HW: 7E0 937 090
   Component: BCM PQ25 Max4 H81 0744
   Revision: B9081001    Serial number: 0982 259160688
   Coding: 62A8393A0A21201301280F746CEB8ED50F90690F60CE6960320400A30840
   Shop #: WSC 02737 022 587180
   VCID: 2A5138FB45ECBDD93F-807E

   Subsystem 1 - Part No: 5K7 955 559 C  Labels: 5K7-955-559.CLB
   Component: RLS 260816 04  42  0106
   Coding: 0228DD

   Subsystem 2 - Part No SW: 7E0 959 801 M    HW: 7E0 959 801 M
   Component: J386__TSG_FT  003 0653
   Serial number: KU0KU008091662522553
   Coding: 0400A0

   Subsystem 3 - Part No SW: 7E0 959 802 M    HW: 7E0 959 802 M
   Component: J387__TSG_BT  003 0653
   Serial number: KU0KU007091662515206
   Coding: 1400A0

No fault code found.

-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446)       Labels:| 7E0-919-475.clb
   Part No SW: 7E0 919 475 T    HW: 1Q0 919 475
   Component: PARKHILFE 4K  H03 0212
   Revision: --------    Serial number: 32961620000710
   Coding: 118008
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_VW75XParkAssis4K 001013
   ROD: EV_VW75XParkAssis4K_001.rod
   VCID: 438F755FCA864C911C-8016

No fault code found.

-------------------------------------------------------------------------------
Address 13: Auto Dist. Reg (J428)       Labels:| 7N0-907-572.clb
   Part No SW: 7N0 907 572 C    HW: 7E0 907 572
   Component: ACC Bosch PQx H03 0210
   Serial number: 29081604394349
   Coding: 00004000FE0779
   Shop #: WSC 01383 790 50316
   ASAM Dataset: EV_ACCBEGVW361 001006
   ROD: EV_ACCBEGVW361.rod
   VCID: 36691C8B8954E939AB-8062

2 Faults Found:
1039 - Databus
          U1123 00 [009] - Received Error Message
          [New feature! Extended UDS fault detail is only supported by current gen. interfaces]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 239
                    Mileage: 60965 km
                    Date: 2022.01.15
                    Time: 03:27:33

                    Control Module temperature: 11 °C
                    Voltage terminal 15: 11.3 V
                    Vehicle speed: 0.00 m/s
                    Acceleration: 0.00 m/s²

0273 - Databus
          U1121 00 [009] - Missing Message
          [New feature! Extended UDS fault detail is only supported by current gen. interfaces]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 4
                    Fault Frequency: 1
                    Reset counter: 239
                    Mileage: 60965 km
                    Date: 2022.01.15
                    Time: 03:27:16

                    Control Module temperature: 11 °C
                    Voltage terminal 15: 12.0 V
                    Vehicle speed: 0.00 m/s
                    Acceleration: 0.00 m/s²


-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:| 5K0-959-655.clb
   Part No SW: 7E0 959 655 H    HW: 7E0 959 655 H
   Component: VW10Airbag01R H08 0018
   Revision: --------    Serial number: 003V400168DN
   Coding: 000000000000000000000000000000003152
   Shop #: WSC 02734 790 50316
   ASAM Dataset: EV_AirbaVW10BPAVW12X 001028
   ROD: EV_AirbaVW10BPAVN750.rod
   VCID: 3B7F0DBFB276345154-806E

   Crash sensor for side airbag: driver side:
   Serial number: 3495ZRB40553V6TC91H1

   Front Passenger's Side Airbag Crash Sensor:
   Serial number: 3505ZRB401C579DAN1GF

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
   Part No SW: 7E0 920 870 S    HW: 7E0 920 870 S
   Component: KOMBI         H03 1104
   Serial number: 00000000000000
   Coding: 1509010300
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A05733
   ROD: EV_Kombi_UDS_VDD_RM09_005_VW25.rod
   VCID: 397317B7B84A064146-806C

No fault code found.

-------------------------------------------------------------------------------
Address 18: Aux. Heat (J364)       Labels:| 7E0-963-27X-18.clb
   Part No SW: 7E0 963 272 B    HW: 7E0 963 272 B
   Component: STH-T5GP2     003 0009
   Coding: 5C01
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_AuxilParkiHeateWOST5G2 001013
   ROD: EV_AuxilParkiHeateWOST5G2.rod
   VCID: 2B5F3DFF4216A4D1C4-807E

   Auxiliary heating remote control:
   Subsystem 1 - Part No SW: 3Q0 963 513     HW: 3Q0 963 513
   Component: R64 D208L  004 0401
   Serial number: 00000000000000080569

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 7E0-909-901.clb
   Part No SW: 7E0 909 901     HW: 7E0 937 090
   Component: GW-K-CAN TP20 H81 0744
   Revision: B9081001
   Coding: 042205
   Shop #: WSC 02737 022 587180
   VCID: 68D582F39B604FC9E9-803C

No fault code found.

-------------------------------------------------------------------------------
Address 20: High Beam Assist. (J844)       Labels:| 8S0-857-511.clb
   Part No SW: 7E0 857 511 F    HW: 7E0 857 511 C
   Component: FLA           H10 0003
   Revision: AA001001
   Coding: 010100E200000000000000
   Shop #: WSC 02739 790 50316
   ASAM Dataset: EV_HighBeamAssisAU316 001004
   ROD: EV_HighBeamAssisAU316.rod
   VCID: 2D5B33E77C02AAE1DA-8078

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H03 1104
   Serial number:
   Coding: 000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
   ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
   VCID: 6AD1F8FB8D6C7DD9FF-803E

No fault code found.

-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794)       Labels:| 5G0-035-MIB-ENT2.clb
   Part No SW: 1K8 035 150 L    HW: 1K8 035 150 L
   Component: MU-E-D-ER     055 7067
   Serial number: 27081600011052
   Coding: 065700003C00000041111101008000001F0000C40000010000
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_MUEnt4CGen2LGE 001032
   ROD: EV_MUEnt4CGen2LGE_VW32.rod
   VCID: 2E5934EB7104D1F9E3-807A

No fault code found.

-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840)       Labels:. 1K0-907-534.clb
   Part No SW: 7E0 907 534     HW: 7E0 937 090
   Component: Batt.regelung H81 0744
   Serial number: 0982 259160688
   Coding: 330B1A73
   Shop #: WSC 02739 790 00000
   VCID: 68D582F39B604FC9E9-803C

   Subsystem 1 - Part No SW: 7E0 915 181 K    HW: 7E0 915 181 K
   Component: J367-BDMConti  H03 1050
   Serial number: 75410903001608272610

No fault code found.

-------------------------------------------------------------------------------
Address 69: Trailer (J345)       Labels:. 1K0-907-383-V2.clb
   Part No SW: 1K0 907 383 H    HW: 1K0 907 383 G
   Component: Anhaenger     H12 0130
   Revision: 3B001001    Serial number: 00000413855619
   Coding: 410D000103000000
   Shop #: WSC 02739 790 00000
   VCID: 3261209B6D3CF51987-8066

No fault code found.

-------------------------------------------------------------------------------
Address 6E: Ctrl Head Roof (J702)       Labels:. 7E5-919-037-W2.clb
   Part No SW: 7E5 919 037 G    HW: 7E5 919 037 G
   Component: Dachdisplay   H15 0200
   Revision: 10100012    Serial number: 447859
   Coding: 000103
   Shop #: WSC 02759 790 00000
   VCID: 356B1B879C52E221A2-8060

No fault code found.

End-------------------------(Elapsed Time: 03:19)--------------------------

Last edited by a moderator:

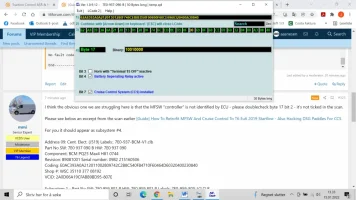

I think the obvious one we are struggling here is that the MFSW "controller" is not identified by ECU - please doublecheck byte 17 bit 2 - it's not ticked in the scan.

Please see below an excerpt from the scan earlier [Guide] How To Retrofit MFSW And Cruise Control To T6 Eu6 2019 Startline - Also Hacking DSG Paddles For CCS

For you it should appear as subsystem #4.

Address 09: Cent. Elect. (J519) Labels:. 7E0-937-BCM-V1.clb
Part No SW: 7E0 937 090 B HW: 7E0 937 090
Component: BCM PQ25 Max4 H81 0744
Revision: B9081001 Serial number: 0982 215160506
Coding: E0AC393A0A212011002809742C2B8C540F84710F60464D60320400230840
Shop #: WSC 35110 377 08192
VCID: 2A0D06A19CFABB9BD95-807E

Subsystem 1 - Part No SW: 7E0 959 801 P HW: 7E0 959 801 P Labels: 7E0-959-80X-V2.CLB
Component: J386__TSG_FT 003 0653
Serial number: KU0KU004081662176139
Coding: 1400B0

Subsystem 2 - Part No SW: 7E0 959 802 P HW: 7E0 959 802 P Labels: 7E0-959-80X-V2.CLB
Component: J387__TSG_BT 003 0653
Serial number: KU0KU005081662184819
Coding: 0400A0

Subsystem 3 - Part No SW: 7E0 959 442 HW: 7E0 959 442 Labels: 3C8-959-537.CLB
Component: E221__MFL-DC1 H02 0103
Serial number: 29150002354440015492
Coding: B0FFFF

I think the obvious one we are struggling here is that the MFSW "controller" is not identified by ECU - please doublecheck byte 17 bit 2 - it's not ticked in the scan.

Please see below an excerpt from the scan earlier [Guide] How To Retrofit MFSW And Cruise Control To T6 Eu6 2019 Startline - Also Hacking DSG Paddles For CCS

For you it should appear as subsystem #4.

Address 09: Cent. Elect. (J519) Labels:. 7E0-937-BCM-V1.clb
Part No SW: 7E0 937 090 B HW: 7E0 937 090
Component: BCM PQ25 Max4 H81 0744
Revision: B9081001 Serial number: 0982 215160506
Coding: E0AC393A0A212011002809742C2B8C540F84710F60464D60320400230840
Shop #: WSC 35110 377 08192
VCID: 2A0D06A19CFABB9BD95-807E

Subsystem 1 - Part No SW: 7E0 959 801 P HW: 7E0 959 801 P Labels: 7E0-959-80X-V2.CLB
Component: J386__TSG_FT 003 0653
Serial number: KU0KU004081662176139
Coding: 1400B0

Subsystem 2 - Part No SW: 7E0 959 802 P HW: 7E0 959 802 P Labels: 7E0-959-80X-V2.CLB
Component: J387__TSG_BT 003 0653
Serial number: KU0KU005081662184819
Coding: 0400A0

Subsystem 3 - Part No SW: 7E0 959 442 HW: 7E0 959 442 Labels: 3C8-959-537.CLB
Component: E221__MFL-DC1 H02 0103
Serial number: 29150002354440015492
Coding: B0FFFF

Code:
Saturday,15,January,2022,13:52:56:05012
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 21.9.0.2 (x64)
Data version: 20210903 DS330.0
www.Ross-Tech.com


VIN: WV1ZZZ7HZHH055263   License Plate:


Chassis Type: 7H-VN75 (7E0)
Scan: 01 03 04 08 09 10 13 15 17 18 19 20 25 5F 61 69 6E 0B

VIN: WV1ZZZ7HZHH055263   Mileage: 60960km-37878miles

01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
13-Auto Dist. Reg -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
18-Aux. Heat -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
20-High Beam Assist. -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
5F-Information Electr. -- Status: OK 0000
61-Battery Regul. -- Status: OK 0000
69-Trailer -- Status: OK 0000
6E-Ctrl Head Roof -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine (2D2D2-CXGB)       Labels:. 04L-907-309-V2.clb
   Part No SW: 04L 906 056 KA    HW: 04L 907 445
   Component: R4 2.0l TDI   H02 4047
   Revision: 23002001
   Coding: 0011401C432401090000
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_ECM20TDI03004L906056KA 004003
   ROD: EV_ECM20TDI03004L906056KA.rod
   VCID: 76E9DC8BC9D4A9396B-8022
   VINID: 9E606AAAA1D8A986001450860C36B0FBD6

1 Fault Found:
25797 - No Communication with Diagnostic Gateway
          U0146 00 [035] - -
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 3
                    Mileage: 60965 km
                    Date: 2060.01.14
                    Time: 18:33:04

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 10 °C
                    Intake air temperature: 9 °C
                    Ambient air pressure: 1000 mbar
                    Voltage terminal 30: 11.312 V
                    Unlearning counter according OBD: 40
                    Accelerator pedal travel: raw value: 0.00 %
                    CAN status - engine control module: 0
                    Cruise Control System (CCS): status: Initialization
                    selected gear: Shifting process active

Readiness: N/A

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels: 7E0-907-37x-MK100ESC.clb
   Part No SW: 7E0 907 379 P    HW: 7E0 907 379 M
   Component: ESC           H06 0133
   Revision: 00000000    Serial number: 42526000000325
   Coding: 517E4098256784838A77027CA485219378F100
   Shop #: WSC 02739 790 50316
   ASAM Dataset: EV_Brake1ESCCONTIVN75XGP2 011001
   ROD: EV_Brake1ESCCONTIVN75XGP2_011.rod
   VCID: 3F8779AFA66E287178-806A

No fault code found.

-------------------------------------------------------------------------------
Address 04: Steering Angle (G085)       Labels:* 6R0-959-654.clb
   Part No SW: 6R0 959 654     HW: 6R0 959 654
   Component: LENKW.SENSOR  H07 0070
   Serial number: 26081613470606
   Coding: 01
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_LWSKLOVW25X 005001
   ROD: EV_LWSKLOVW25X.rod
   VCID: 7EF9C4ABE1E4E17933-802A

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301)       Labels:| 7E5-907-047.clb
   Part No SW: 7E0 907 047 AF    HW: 7E0 907 047 AF
   Component: Climatic-T5   H22 0708
   Revision: 00001002
   Coding: 0000000003
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_ClimaticT5 A01003
   ROD: EV_ClimaT5Basis.rod
   VCID: 6ED9F4EBB18491F9A3-803A

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 7E0-937-BCM-V1.clb
   Part No SW: 7E0 937 090 B    HW: 7E0 937 090
   Component: BCM PQ25 Max4 H81 0744
   Revision: B9081001    Serial number: 0982 259160688
   Coding: 62A8393A0A21201301280F746CEB8ED50F94690F60CE6960320400A30840
   Shop #: WSC 02737 022 587180
   VCID: 2A5138FB45ECBDD93F-807E

   Subsystem 1 - Part No: 5K7 955 559 C  Labels: 5K7-955-559.CLB
   Component: RLS 260816 04  42  0106
   Coding: 0228DD

   Subsystem 2 - Part No SW: 7E0 959 801 M    HW: 7E0 959 801 M
   Component: J386__TSG_FT  003 0653
   Serial number: KU0KU008091662522553
   Coding: 0400A0

   Subsystem 3 - Part No SW: 7E0 959 802 M    HW: 7E0 959 802 M
   Component: J387__TSG_BT  003 0653
   Serial number: KU0KU007091662515206
   Coding: 1400A0

No fault code found.

-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446)       Labels:| 7E0-919-475.clb
   Part No SW: 7E0 919 475 T    HW: 1Q0 919 475
   Component: PARKHILFE 4K  H03 0212
   Revision: --------    Serial number: 32961620000710
   Coding: 118008
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_VW75XParkAssis4K 001013
   ROD: EV_VW75XParkAssis4K_001.rod
   VCID: 438F755FCA864C911C-8016

No fault code found.

-------------------------------------------------------------------------------
Address 13: Auto Dist. Reg (J428)       Labels:| 7N0-907-572.clb
   Part No SW: 7N0 907 572 C    HW: 7E0 907 572
   Component: ACC Bosch PQx H03 0210
   Serial number: 29081604394349
   Coding: 00004000FE0779
   Shop #: WSC 01383 790 50316
   ASAM Dataset: EV_ACCBEGVW361 001006
   ROD: EV_ACCBEGVW361.rod
   VCID: 36691C8B8954E939AB-8062

2 Faults Found:
1039 - Databus
          U1123 00 [009] - Received Error Message
          [New feature! Extended UDS fault detail is only supported by current gen. interfaces]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 239
                    Mileage: 60965 km
                    Date: 2022.01.15
                    Time: 18:33:04

                    Control Module temperature: 23 °C
                    Voltage terminal 15: 12.1 V
                    Vehicle speed: 0.00 m/s
                    Acceleration: 0.00 m/s²

0273 - Databus
          U1121 00 [009] - Missing Message
          [New feature! Extended UDS fault detail is only supported by current gen. interfaces]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 4
                    Fault Frequency: 1
                    Reset counter: 239
                    Mileage: 60965 km
                    Date: 2022.01.15
                    Time: 18:33:04

                    Control Module temperature: 23 °C
                    Voltage terminal 15: 12.1 V
                    Vehicle speed: 0.00 m/s
                    Acceleration: 0.00 m/s²


-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:| 5K0-959-655.clb
   Part No SW: 7E0 959 655 H    HW: 7E0 959 655 H
   Component: VW10Airbag01R H08 0018
   Revision: --------    Serial number: 003V400168DN
   Coding: 000000000000000000000000000000003152
   Shop #: WSC 02734 790 50316
   ASAM Dataset: EV_AirbaVW10BPAVW12X 001028
   ROD: EV_AirbaVW10BPAVN750.rod
   VCID: 3B7F0DBFB276345154-806E

   Crash sensor for side airbag: driver side:
   Serial number: 3495ZRB40553V6TC91H1

   Front Passenger's Side Airbag Crash Sensor:
   Serial number: 3505ZRB401C579DAN1GF

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
   Part No SW: 7E0 920 870 S    HW: 7E0 920 870 S
   Component: KOMBI         H03 1104
   Serial number: 00000000000000
   Coding: 1509010300
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A05733
   ROD: EV_Kombi_UDS_VDD_RM09_005_VW25.rod
   VCID: 397317B7B84A064146-806C

No fault code found.

-------------------------------------------------------------------------------
Address 18: Aux. Heat (J364)       Labels:| 7E0-963-27X-18.clb
   Part No SW: 7E0 963 272 B    HW: 7E0 963 272 B
   Component: STH-T5GP2     003 0009
   Coding: 5C01
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_AuxilParkiHeateWOST5G2 001013
   ROD: EV_AuxilParkiHeateWOST5G2.rod
   VCID: 2B5F3DFF4216A4D1C4-807E

   Auxiliary heating remote control:
   Subsystem 1 - Part No SW: 3Q0 963 513     HW: 3Q0 963 513
   Component: R64 D208L  004 0401
   Serial number: 00000000000000080569

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 7E0-909-901.clb
   Part No SW: 7E0 909 901     HW: 7E0 937 090
   Component: GW-K-CAN TP20 H81 0744
   Revision: B9081001
   Coding: 042205
   Shop #: WSC 02737 022 587180
   VCID: 68D582F39B604FC9E9-803C

No fault code found.

-------------------------------------------------------------------------------
Address 20: High Beam Assist. (J844)       Labels:| 8S0-857-511.clb
   Part No SW: 7E0 857 511 F    HW: 7E0 857 511 C
   Component: FLA           H10 0003
   Revision: AA001001
   Coding: 010100E200000000000000
   Shop #: WSC 02739 790 50316
   ASAM Dataset: EV_HighBeamAssisAU316 001004
   ROD: EV_HighBeamAssisAU316.rod
   VCID: 2D5B33E77C02AAE1DA-8078

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H03 1104
   Serial number:
   Coding: 000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
   ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
   VCID: 6AD1F8FB8D6C7DD9FF-803E

No fault code found.

-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794)       Labels:| 5G0-035-MIB-ENT2.clb
   Part No SW: 1K8 035 150 L    HW: 1K8 035 150 L
   Component: MU-E-D-ER     055 7067
   Serial number: 27081600011052
   Coding: 065700003C00000041111101008000001F0000C40000010000
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_MUEnt4CGen2LGE 001032
   ROD: EV_MUEnt4CGen2LGE_VW32.rod
   VCID: 2E5934EB7104D1F9E3-807A

No fault code found.

-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840)       Labels:. 1K0-907-534.clb
   Part No SW: 7E0 907 534     HW: 7E0 937 090
   Component: Batt.regelung H81 0744
   Serial number: 0982 259160688
   Coding: 330B1A73
   Shop #: WSC 02739 790 00000
   VCID: 68D582F39B604FC9E9-803C

   Subsystem 1 - Part No SW: 7E0 915 181 K    HW: 7E0 915 181 K
   Component: J367-BDMConti  H03 1050
   Serial number: 75410903001608272610

No fault code found.

-------------------------------------------------------------------------------
Address 69: Trailer (J345)       Labels:. 1K0-907-383-V2.clb
   Part No SW: 1K0 907 383 H    HW: 1K0 907 383 G
   Component: Anhaenger     H12 0130
   Revision: 3B001001    Serial number: 00000413855619
   Coding: 410D000103000000
   Shop #: WSC 02739 790 00000
   VCID: 3261209B6D3CF51987-8066

No fault code found.

-------------------------------------------------------------------------------
Address 6E: Ctrl Head Roof (J702)       Labels:. 7E5-919-037-W2.clb
   Part No SW: 7E5 919 037 G    HW: 7E5 919 037 G
   Component: Dachdisplay   H15 0200
   Revision: 10100012    Serial number: 447859
   Coding: 000103
   Shop #: WSC 02759 790 00000
   VCID: 356B1B879C52E221A2-8060

No fault code found.

End-------------------------(Elapsed Time: 03:21)--------------------------

Last edited by a moderator:
The bcm isn't seeing the wheel at all looking at the sub-system @mmi.

@T6_FunBus good news! I have got hold of a scabby wheel with believed to be working buttons. Obd11 should arrive tomorrow. I'll ship both together for you to carry out testing.

Good - now the codings are correct (engine&BCM) in the scan in post #327. Hopefully the picture in post #327 is just a "typo",

Indeed as @Dav-Tec mentioned, the BCM doesn't see the MFSW button "controller".
It should be in the scan under

Address 09: Cent. Elect. (J519)
as
Subsystem 4 - Part No SW: 7E0 959 442 HW: 7E0 959 442
Component: E221__MFL-DC1 H02 0103
Serial number: 29150002354440015492
Coding: B0FFFF

1) Before installing the MFSW did you have in engine the fault?
25797 - No Communication with Diagnostic Gateway - U0146 00 [035]​
2) Do the MFSW buttons now illuminate when ignition on and lights on?

3) Per coding you do not have instrument light brightness adjustment roller (by light switch)?

4) Could you please post the BCM adaptation map
VCDS -> Applications -> Controller Channel Map ->
Tick/fill boxes as above and hit Go
VCDS Flashes screens for a moment (when finished hit "Done, Go Back") and in folder C:\Ross-Tech\VCDS\Logs\.... there will be a file​
adpmap-09-xxxxxxx....CSV

Good - now the codings are correct (engine&BCM) in the scan in post #327. Hopefully the picture in post #327 is just a "typo",

Indeed as @Dav-Tec mentioned, the BCM doesn't see the MFSW button "controller".
It should be in the scan under

Address 09: Cent. Elect. (J519)
as
Subsystem 4 - Part No SW: 7E0 959 442 HW: 7E0 959 442
Component: E221__MFL-DC1 H02 0103
Serial number: 29150002354440015492
Coding: B0FFFF

1) Before installing the MFSW did you have in engine the fault?
25797 - No Communication with Diagnostic Gateway - U0146 00 [035]​
2) Do the MFSW buttons now illuminate when ignition on and lights on?

3) Per coding you do not have instrument light brightness adjustment roller (by light switch)?

4) Could you please post the BCM adaptation map
VCDS -> Applications -> Controller Channel Map ->
Tick/fill boxes as above and hit Go
VCDS Flashes screens for a moment (when finished hit "Done, Go Back") and in folder C:\Ross-Tech\VCDS\Logs\.... there will be a file​
adpmap-09-xxxxxxx....CSV
1.No
2.No
3.No

Not quite sure how to switch to these values:

Address 09: Cent. Elect. (J519)
as
Subsystem 4 - Part No SW: 7E0 959 442 HW: 7E0 959 442
Component: E221__MFL-DC1 H02 0103
Serial number: 29150002354440015492
Coding: B0FFFF


Attachments

  • adpmap-09-7E0-937-090-B-20220115-1623.CSV
    9.1 KB · Views: 11
Last edited:
On that drop down list it should show 4 - 7E0 959 442 which would be your steering wheel. Until the BCM see's it as a sub-system you can't change the coding for it

Not quite sure how to switch to these values:

Address 09: Cent. Elect. (J519)
as
Subsystem 4 - Part No SW: 7E0 959 442 HW: 7E0 959 442
Component: E221__MFL-DC1 H02 0103
Serial number: 29150002354440015492
Coding: B0FFFF
The subsystem will automatically appear when the BCM (09) recognizes it.
Because it's not listed means "it is not there". But why not - it is either a) wiring problem b) wrong subsystem in the MFSW c) faulty subsystem.
Could you please post a picture of the left MFSW buttons (CC controls).

If this correct module I still don’t how to change to B0FFFF

View attachment 141923
No, not that. It would have identifier "7E0 959 442 "

No. I'd check all connections again, triple check coding again, check continuity of wires if all that proves ok then it would suggest the buttons are at fault

As above - the wheel does not talk to BCM.

Just another question - do the CC controls in the stalk still work? Do you get the "CC on" symbol on the bottom line of instrument cluster when switching CC on from stalk?

As above - the wheel does not talk to BCM.

Just another question - do the CC controls in the stalk still work? Do you get the "CC on" symbol on the bottom line of instrument cluster when switching CC on from stalk?
CC dont work. No CC symbol in dash

CC dont work. No CC symbol in dash
Thanks. The last Auto-Scan has correct codings both in BCM and engine. Anyways, I'm more than happy to verify a new Auto-Scan if you think you have messed something.

PS. The adaptations seem to be the normal ones.

Back
Top
