you cant do that unfortunately.

The EHU port is 240vac mains voltage.

most solar setups are 12v dc voltage and need connecting to the vans battery.


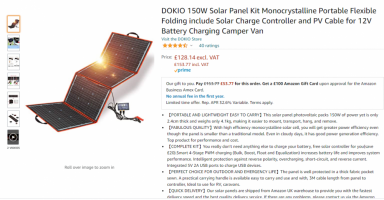

as an example have a look at this, you put it out in the sun and clip it to you battery :


EDIT 2021 : - The RED battery connection MUST be FUSED - (all battery connections must be fused.)

you will need to add an inline 5/10/20A fuse to the RED battery connection !

Also be warned that the PWM controller has battery voltage at the SAE PV connection !!

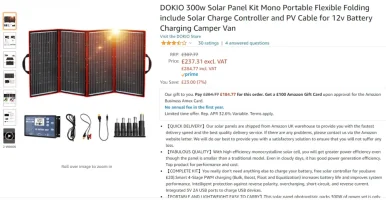

and 300w kit . . .





Last edited:
Just been wild camping with ACF, and my phone needed a charger, however mid Wales countryside unfortunately doesn't offer any mobile device/phone charging points. @Dellmassive do you know of any reliable mini solar PV systems which could assist in mobile phone charging while on the go and wild camping. Packable styles that one perhaps could attach on the top of bergen while on the move or prop it against the tent if stationary. Or are these mobile/mini one's waste of money?

@EdH unfortunately I've found them to be a waist of time.

you are better off getting a USB power bank and charging your devices from that.

The power Bank can be recharged charged from your 12v system later.

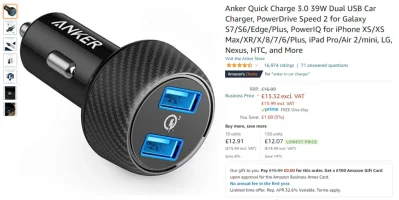

The Anker Brand are very good as is RAVPOWER . . .

Example . . .








++++++++++


use this to recharge it . . .








..

  • Like
Reactions: EdH
Just been wild camping with ACF, and my phone needed a charger, however mid Wales countryside unfortunately doesn't offer any mobile device/phone charging points. @Dellmassive do you know of any reliable mini solar PV systems which could assist in mobile phone charging while on the go and wild camping. Packable styles that one perhaps could attach on the top of bergen while on the move or prop it against the tent if stationary. Or are these mobile/mini one's waste of money?
Good write up here:

  • Like
Reactions: EdH
Remember People . .

"ALL BATERY CONNECTIONS MUST BE FUSED !"

...


@osman had trouble with a shorted solar setup with an unfused battery connection - be warned.








...



Thanks all quick Q, likely a stupid one (perhaps @Dellmassive can help?), just thinking through my mobile solar setup. I have a fixed panel on the roof (100w) attached to a victron MPPT 100v/30a. Can I run a set of mobile panels (2x100w panels) to the same victron MPPT thereby massively expanded my solar capacity for when I need it? or do I need a sperate MPPT controller?

Thanks all quick Q, likely a stupid one (perhaps @Dellmassive can help?), just thinking through my mobile solar setup. I have a fixed panel on the roof (100w) attached to a victron MPPT 100v/30a. Can I run a set of mobile panels (2x100w panels) to the same victron MPPT thereby massively expanded my solar capacity for when I need it? or do I need a sperate MPPT controller?
yes you can add multiple panels . . . up to the 100/30 max

so up to 100v VOC for the panels in series.

or

up to 30A with the panels in parallel.

the average is around 6A per 100W at around 18ish volts.

+++++++++


that means whatever way you connect them that Victron will deal with it . .

fyi:







.

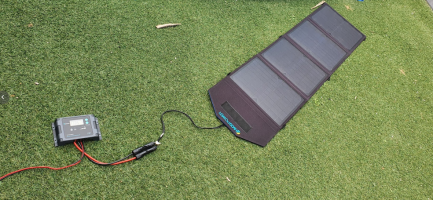

I am really pleased with my Lensun 100w foldable panels.20210616_143504.jpg20210616_143513.jpg20210616_143504.jpg Topped my leisure battery nicely when camping the other weekend, they folded nicely and stored under the bed. Like I said I used Victron controler which is great. The panel's once folded are not that heavy at all and easily movable around the van to track sun. Thanks to Lensun and helpful advice from @Dellmassive always regarding my cable setup and yes all battery connector cables are double fused. Some photos before we went camping when I was testing them.

Last edited:
Yep . . . i know. I've done it again.


Say hello to the newest edition to the solar family.

100w Renogy Solar Suitcase kit. ( i did have one before, and sold it. . . so this is the latest version to replace it)

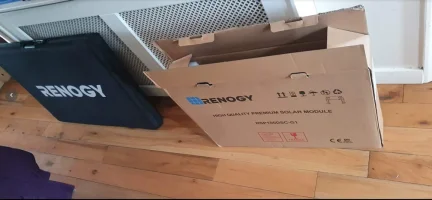

The box . .

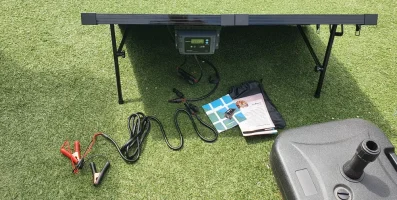

the kit . . same setup at the 200w kit . . . just smaller.

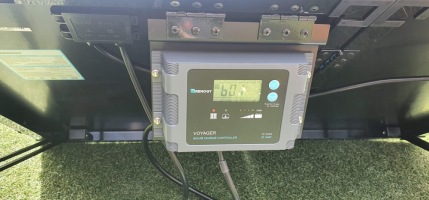

the new Voyager 20A PWM controller.... (i already have one of these - they very good (Lifepo4 profile too))



shiny and new . .

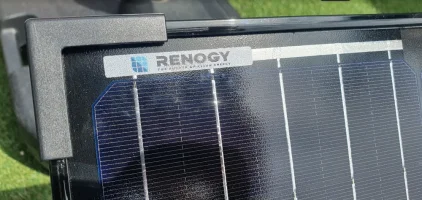

High quality frame and panel . .

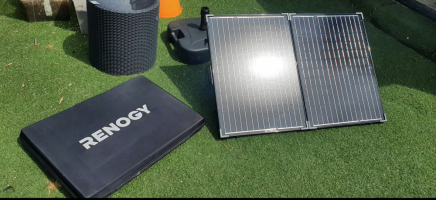

a quick test . . .



the spec . . .



..

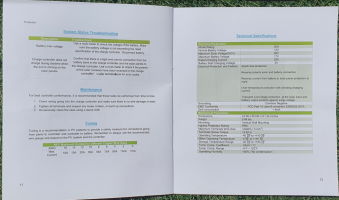

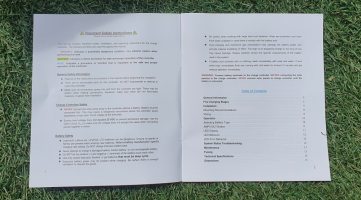

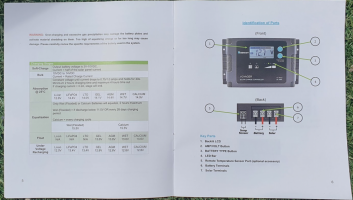

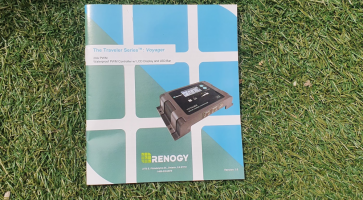

the book . .


1625137600013.png1625137608471.png1625137618552.png1625137626793.png1625137637053.png1625137646004.png1625137655185.png1625137663826.png


.

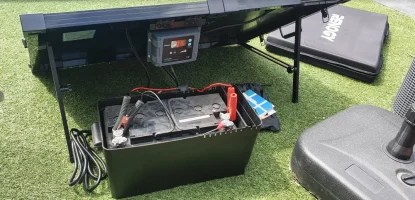

ready to go kit . .

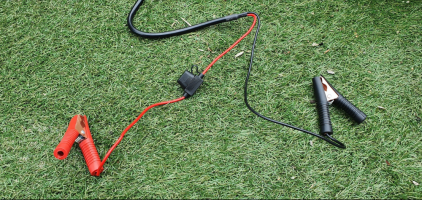

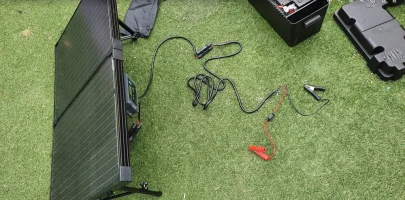

fused clamps for temp connections . . .

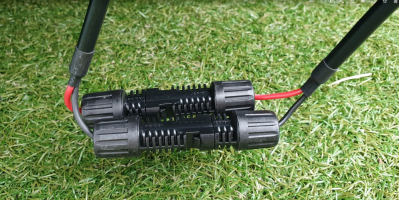

PV MC4 connectors for easy connecting to other / multiple panels . .




im not keen on this MC4 battery conection . . . so im swapping it out for a Anderson battery connector.



.

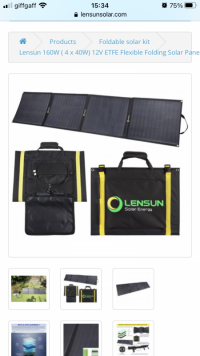

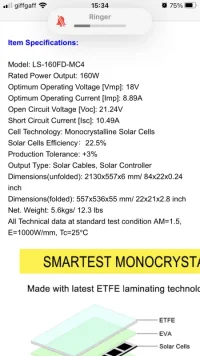

@Dellmassive (or anyone) I've tested my new lensun panel today- 160W - connecting to my CTEK. The correct lights have come on and my BM2 shows the leisure battery charging nicely - happy days. When I charge the leisure battery using my Victron charger the Bluetooth readout shows me the amps/charge going in. Is there something similar to the BM2 I could connect into my system that would show me the charge going in when on solar or is that a daft question- cheers in advance, Jim

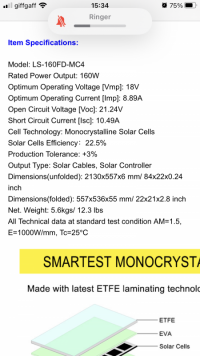

Some screen shots of what I have


6A3C2C60-17FA-494A-B38A-6E005E18B246.pngC00599E0-75EF-48EC-AA61-9B1AD09E0A10.jpeg36B74180-2CD3-4E48-8D3A-32FEE40E8809.pngBEFCD966-9E39-42FE-8F0D-44DC08726206.png

@jimc91

Sure..

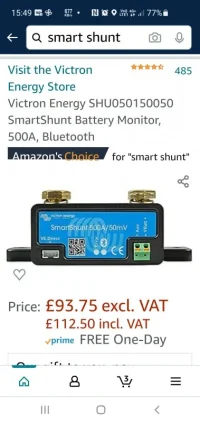

Victron do the Smart shunt,

The goes on the Leisure battery NEG post and will give you all that data...

It uses the same vicrtron APP.

You can play with it using the victron demo on the app.

The BMV712 is the same, but with a small screen and relay outputs.

See here...



.

Screenshot_20210701-155000_Amazon Shopping.jpg

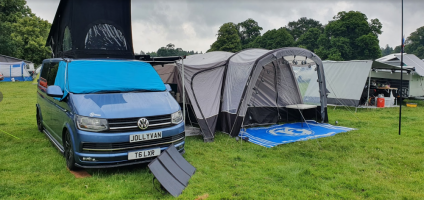

we took the 200w Renogy suitcase to Camper Site 2021.





it done a grand job keeping the battery box above 13.0v - even in the rain =]

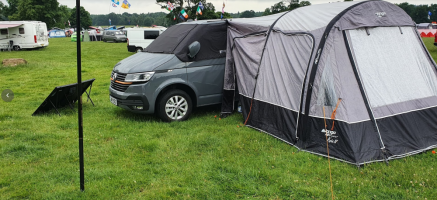

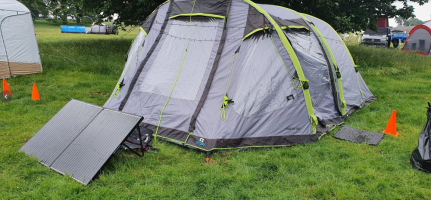

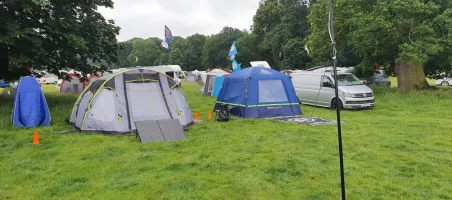

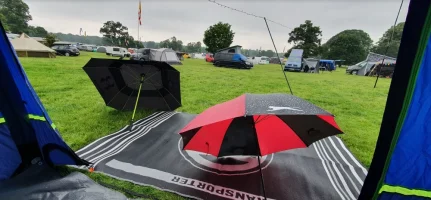

we had the panel sitting out the front of the tent, facing in particular direction.

And kept the included PWM controller.



.

here is another member with the 200W Renogy.



and another setup with the Lensun panel.



as you can see the weather was a bit iffy . .



.

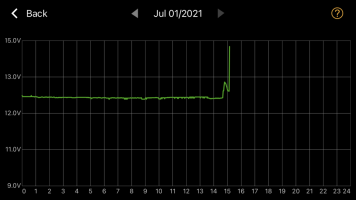

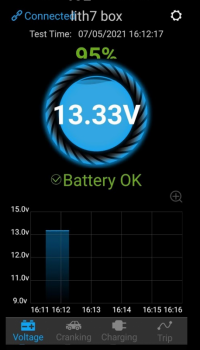

here is the BM2 readout for the weekend.


some sunny spells this day. . . .


mostly rain this day . .



and rainy here too. .



.


You can see that the kit was giving enough power to run the loads and slightly charge the battery . . . even in the rain, but with a bright sky.


.

soo all good.

the battery box was running the Compressor fridge and all the camp lights plus ll the USB and other charging . .

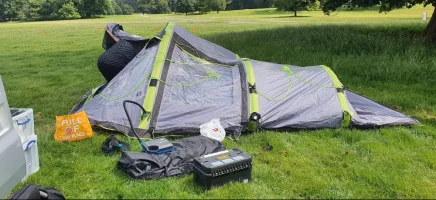

plus all the blowing up AIR Beam tents and Gazebos . .


  • Like
Reactions: CAB
Lithium leisure Batterys and PWM solar controllers - Not Advised. (But fine on any of the SLA chemistry battery types) - IMHO



Im doing some testing and come across some interesting data that leads me to advise that PWM solar controllers may not be the best thing to use with a Lifepo4 battery charging.

My advice would be to upgrade to a MPPT solar controller that has a proper Lifepo4 battery charge Profile.







more info here:






.

Finally got the chance to get the Lensun solar blanket connected up and try it out! Only one problem, I have no idea what the Bluetooth password is to connect to the MPPT controller and left the instruction book at home so can’t tell you how it’s performing! ‍Oops!

Anyone know if the MPPT Pro has a default password?!
