T6.1 What’s this live feed under my passenger seat? [Merge]

[Mysticboer]

Please excuse my ignorance, but if I understand this thread correctly, this cable means no need for threading another cable from the engine bay to the driver’s seat. If so, it would remove so most of the pain associated with installing a leisure battery



[Ads_Essex]

Please excuse my ignorance, but if I understand this thread correctly, this cable means no need for threading another cable from the engine bay to the driver’s seat. If so, it would remove so most of the pain associated with installing a leisure battery

Correct.



[Mysticboer]

Thank you @Ads_Essex that is great news. Do you still need to run an ignition live from the dashboard though?



[Ads_Essex]

See post #8



[Mysticboer]

Right, thanks...should have spotted that



[campz]

Hi,

I have some cables terminating in under the passengers seat in my 6.1 shuttle and would like to know if they are useful, perhaps for the leisure battery. Also, there are two cables attached to the battery bus bar that are labeled 3 & 4, are these related, does anyone know what they supply?

Images below, thanks!

Under passengers seat...





bus bar...



[Dellmassive]

unwrap those cables under the seat and see if they conect to anything.

some more on that here:

T6.1 battery removal / access fuse box

I am in the process if planning a leisure battery install and dc-dc charger. However firstly I cant work out how to remove the battery to get access to the bulkhead grommets. Secondly is it possible to take power from the fusebox that is on top of the battery. I seem to have some of these unused.

www.t6forum.com

and here:

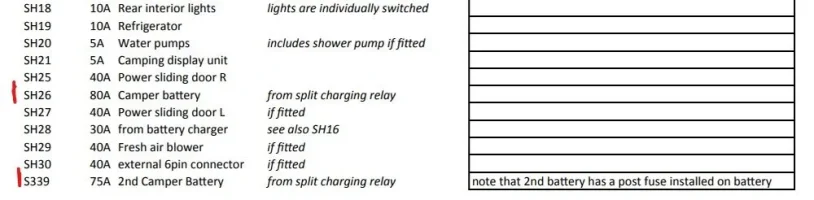

https://www.t6forum.com/downloads/vw-t6-1-fusebox-fuse-chart-sj-engine-bay.134/

The other thread shows that the SJ fuse box ontop of the battery may feed Engine equipment.

and that the fat red feed cable under the seats may be fed from the main fusebox under the battery (same as the T6)

so you need to unwrap it and check, and possibly have the battery out to check the other end.



[campz]

Thanks @Dellmassive - If you look closely the fat darker cable ends inside the tape and doesn't go anywhere so I'm thinking it could be reused for the leisure?



[Dellmassive]

yeh . . . just unwrap it and see if its ladled.

if its fed from the main battery fuse box then you can use it as a main battery feed for DC-DC etc etc.

if its not labelled then you will have to test it with a mustimeter. . . trace the cable back. check for power. remove fuse. check for no power. check contnuity of cable.

its most likely under the batttery.

....

Tpi 2046279, T6 Repair Instructions For Voltage Supply Of 2nd Battery

TPI: 2046279, T6: repair instructions for voltage supply of 2nd battery Tool and components: - Cable for 2nd battery 16mm² (7E0.971.044) - Corrugated tube (N.107.326.01) - Cable tie (N.106.622.01 or similar) - Grommet (2D0.906.376.S) - Butyl (AKL.450.005.05) - Wrapping tape - Holder of...

www.t6forum.com

Ignition Live Under Passenger Seat - How Its Done -

Ignition Live Under Passenger Seat - How its done - This question pops up fairly often so i thought i would look at it a bit closer. . . . . If your van was factory fitted with the AUX battery under the seat, then your sorted. There is already a feed under there . . . . =] BUT what if your...

www.t6forum.com

•
  DC-DC:
• Dc-dc Charger (for Leisure Battery) -- How I Done It --
• Charging Starter and Leisure batteries with same charger - Victron
• Stop/start...regen...smart Alternator... Dc-dc Charger For Leisure Battery Or Not?

.

Installation Guide for Redarc DC-DC Charging Kit

Installation Guide for Redarc DC-DC Charging Kit supplied by @travelvolts

www.t6forum.com



[Skyliner33]

I‘d be interested in knowing the answer to this. Strange thing is though on my van cable 4 looks exactly like this but cable 3 on my van looks black with no label.



[Paynewright]

I think it slightly odd that a couple of hefty live cables just have a bit of tape over the end (unless there is a cap under the tape)



[campz]

Maybe?

https://www.t6forum.com/threads/second-battery-on-options-list-is-it-a-leisure-battery.1547/



[Skyliner33]

I think it slightly odd that a couple of hefty live cables just have a bit of tape over the end (unless there is a cap under the tape)

There wasnt on my T6. Just Tessa tape.



[gazz58]

Hello all. I have been quietly reading posts on the forum and planning some of the stuff I want to try and do to my T6.1 when i managed to get one. So now I have the van I was having a poke about and found a couple things I’m not sure about! If anyone could share there knowledge on this I would be really great full. I have a sort of buzz bar thing on top of the battery and a taped up cable under the double passenger seat. I assume these are for a second battery?



[Skyliner33]

The thing on top of the battery is a fuse box.

The taped up wire varies van to van. It’s probably a permanent live wire.



[gazz58]

Sorry, my use of the posts is still a bit clonky!



[Ads_Essex]

I have a sort of buzz bar thing on top of the battery
and a taped up cable under the double passenger seat. I assume these are for a second battery?

do they look like those in this thread?

https://www.t6forum.com/threads/t6-1-cables-labled-3-4-leading-from-battery-what-are-they-for.25872/



[Skyliner33]

View attachment 109834

Fuse box. 2 being used are 100A the free ones are 200A.



[gazz58]

do they look like those in this thread?

https://www.t6forum.com/threads/t6-1-cables-labled-3-4-leading-from-battery-what-are-they-for.25872/

Yes

Thanks for the info.



[gazz58]

Hi there again. So do you think it is ok to take the feed,with its own fuse, from one of the spare feeds to my c-tek dc to dc charger? Aldo I eas going to put all the wires in the double seat under the floor when I put the seat swivel in. The Liesure batt and the c-trek will end up under the drivers seat. That’s the plan anyway. I appreciate the advice you guys give and hope to contribute more during my build. Cheers
