Can anyone else see the random posts appearing in this thread?

The same thing happened yesterday - where a user posted something totally unrelated to the topic and obviously should have been posted in another thread?

@Pauly - do we have gremlins on the forum?


Yesterdays one looked like a mistake and thats why i deleted it earlier (and your associated comment)
@Gavinda on the other hand seems genuinely impressed with my word (even if i did spell it wrong ?) but seems normal enough

Yesterdays one looked like a mistake and thats why i deleted it earlier (and your associated comment)
@Gavinda on the other hand seems genuinely impressed with my word (even if i did spell it wrong ?) but seems normal enough
Ah sorry - my bad… I can see where you said ‘parametrization’ in your original reply now…

It was the genuine ‘rogue’ post yesterday that made me think it was another one!

I’m impressed too - it’s a fine word, although I agree with Gavinda, it should probably be an ‘s’ on these shores.

What a terrible time to be a ‘z’ eh? :)

It’s a 2019 unit, looks like it has never been coded as no workshop code listed for it either, prob just needs to go online to factory to release it.
Where are you based?
That is prob why sensors and motors are showing open circuit as it is not set up to accept inputs.

Have you tried setting up a workshop code on your VCDS? Could it just be that preventing it being coded?

Have you tried setting up a workshop code on your VCDS? Could it just be that preventing it being coded?

Thanks for your input @Flyingspanner.

Re workshop code: Yes, coincidentally this is something I read about last night on the Rosstech forums, where other users were having trouble coding ‘virgin’ modules.

One response on the forum recommended adding a valid workshop code as you have suggested - so this is something I will try next (when I finish work today).

In terms of which workshop code to add - Rosstech forum users suggested opening another control module in VCDS and copying/mirroring the workshop code from there.

By all accounts, the workshop codes don’t behave like a normal security password, they are more a ‘digital marker’ to record who has worked on/made changes to modules during repairs, servicing etc.

In theory, the given module will accept coding changes, once any valid workshop is added, it just won’t work if you try and proceed with the VCDS 123, 12345, 123456 default code the dialog box recommends in the app.

I will report back this evening, when I get chance to try this.

Thanks

Last edited:
Can’t give you my info, but the importer info for the uk ( the middle box) is 210
Great - I’ll try 210 in the middle box. Rosstech forum users all suggested 444 which is the code for North America.

Do you think it’s better to add the workshop code in settings/options for the whole VCDS app or when prompted when viewing the 55 Range Control module?

Apparently, If the workshop code is added in the general settings, It will be this code that is shown/recorded for ALL module changes going forward, and will no longer display ‘000000’ which Rosstech refer to as ‘stealth mode’.

Set VCDS up as you want to use it for all jobs, that way you won’t have to worry about these irritating holdups along the way.
Hope you get it sorted.

**Update**

So - apologies for the mammoth post that's about to ensue, but my issues appear deeper than first thought...

Worryingly, this evening I discovered that my headlights turn off when I start the engine!? I've only discovered this now, as most of my testing/coding etc. has been done with the ignition on, with a charger hooked up to maintain the battery.

Everything is working fine, high/dipped beam, indicators, DRLs, but shortly after starting the engine, everything except the DRLs turn off? The headlight control dial also becomes unresponsive, with no effect in any position?

This is baffling because the lights appear to work perfectly when the key is in the ignition on position - but die as soon as I start the engine.

VCDS autoscan throws up some errors for hi and low beam (short or open circuit), but again, if there was a short/wiring issue, why would they work fine with ignition on?

The other issues I cant seem to shift are a bulb out indicator on the dash, and an alert stating 'no cornering light (AFS) function' - again, these are strange because I can't find a bulb out and my front fogs work too?

@KT6B - I notice you mention an AFS cornering light issue earlier in this thread.... did you ever manage sort this?

I've attached my VCDS scan results if anybody has any pointers? Is it worth trying a BCM reset for instance?

Any help on this would be much appreciated... Thanks!



Attachments

  • Scan-WV1ZZZ7HZKH043909-20220405-2137-26560km-16503mi.txt
    11.7 KB · Views: 7
Last edited:
That’s normal(ish) behaviour if the lights aren’t coded

Apologies I’m on my phone so can’t review your coding log

Apologies I’m on my phone so can’t review your coding log
No problem mate - whenever you get chance to view the log, please report back if you see any glaring errors.

I forgot to add, that I’ve still got halogen rear lights, so not sure if I need to tweak the coding to suit.

I think @mmi posted something earlier in the thread about front LEDs/halogen rear coding tweaks so will study that too.

Good evening fellow LED retrofitters… I finally finished my install today after collecting parts over the last 9 months or so… everything seems to be working ok but having trouble coding the range control module (6R0 907 357 C).

I’m trying to apply the following coding - as advised earlier in this thread:

OFCE020001000000 (For RHD)

But get the following message in VCDS:

View attachment 151752

If I try any of the above options, I then get this message:

View attachment 151753

It’s a used module bought on ebay hence the need to re-code it (not sure what vehicle it came from).

The lights do the levelling ‘sweep’ during ignition on - so the module is talking to the canbus - just can’t code it correctly.

Any ideas?

View attachment 151754

Edit - These are the fault codes showing:

-------------------------------------------------------------------------------
Address 55: Headlight Range (J431) Labels:. 6R0-907-357.clb
Part No SW: 6R0 907 357 C HW: 6R0 907 357 B
Component: AFS-ECU 005 0050
Revision: -------- Serial number: --------------
Coding: 0000000000000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_HeadlRegulVWLWRCC 002006
ROD: EV_HeadlRegulVWLWRCC.rod
VCID: 3A2D3BCCDCDC2EFBC16-806E

8 Faults Found:
12583424 - Databus
U1201 00 [008] - No Communications
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 5
Reset counter: 207

10487040 - invalid data record
B2005 00 [008] - -
[ungueltiger Datensatz]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 2

5275220 - Headlight
C107E 54 [137] - Missing Calibration / Basic Setting
MIL ON - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 1
Fault Frequency: 1

13636352 - Control module not coded
U1013 00 [137] - -
[Steuergeraet nicht kodiert]
MIL ON - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 1
Fault Frequency: 1

5276949 - Positioning Motor for Headlight Range Left
C1085 15 [008] - Open or Short to Plus
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Reset counter: 207

5277205 - Positioning Motor for Headlight Range Right
C1086 15 [008] - Open or Short to Plus
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Reset counter: 207

5256725 - Rear Left Ride-Height Sensor
C1036 15 [008] - Open or Short to Plus
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 3

5256213 - Front Left Ride-Height Sensor
C1034 15 [008] - Open or Short to Plus
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 3
I had the same issue with the module which threw up some of those errors codes, this is the part no for a new module from Vw that will fix the module related errors.
Once that is replaced you’ll be able to see which errors are left to sort in the wiring assuming all the other parts are in working order.

I had the same issue with the module which threw up some of those errors codes, this is the part no for a new module from Vw that will fix the module related errors.
View attachment 152079
Once that is replaced you’ll be able to see which errors are left to sort in the wiring assuming all the other parts are in working order.

Thanks @KT6B. I’ve got a brand new RCM on the way to my local parts centre as we speak.

I had no idea how much this part would effect the rest of the set-up in terms of faults - I just presumed the lights wouldn’t level correctly if it was not coded/installed.

Reassuring to know it cleared a lot of your issues when you eventually got your new RCM installed.

Cheers

Keep in mind the levelling system is independent of the headlights, once they have gone down and up and levelled you can unplug the level module and the lights should work fine

  • Like
Reactions: mmi
Keep in mind the levelling system is independent of the headlights, once they have gone down and up and levelled you can unplug the level module and the lights should work fine

Do they not adjust levels whilst in transit too? For example - if the vehicle is travelling up-hill, would they not lower slightly as to not dazzle oncoming traffic?

Yes but they do not affect the operation of the headlights so if you are having levelling issues just unplug the old module and the van is fine to drive

Yes but they do not affect the operation of the headlights so if you are having levelling issues just unplug the old module and the van is fine to drive

Ok understood. My lights switching off with engine on is obviously my biggest issue, so was hoping the uncoded RCM was influencing that fault, but given what you have said, it’s probably the fact my coding is out somewhere…

I’m off to pick up my replacement RCM this afternoon, so I guess I’ll have a better idea what’s going on when it’s fitted - or at least eliminate the faults associated with it.

Thanks

Lights going out and DRLs going off or strobing is normal behaviour when you first wire them up before you code them so it’s likely, pm me your number if you haven’t already

Lights going out and DRLs going off or strobing is normal behaviour when you first wore them up before you code them so it’s likely, pm me your number if you haven’t already

I'm pleased to report that my lights appear to be working... I've fitted and successfully coded the new range control module (although now £209 lighter in my wallet!).

The lights now seem to work with the engine running.

I tweaked my 09 Central Electrics (BCM) coding to include the recommended settings that @mmi posted early on in this thread re: van with LED headlights with halogen rears. I also used 'D0' in Byte 16 as recommended by a few posts in the thread too.

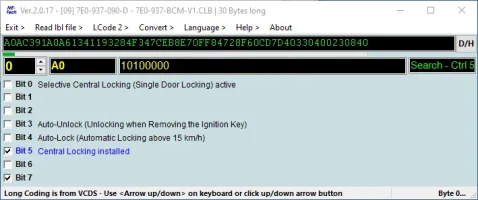

This is now my coding:

Screenshot 2022-04-08 173243.png

In terms of remaining fault codes, I still have the following:

Code:
09 Central Electrics (BCM)
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 7E0-937-BCM-V1.clb
   Part No SW: 7E0 937 090 D    HW: 7E0 937 090 D
   Component: BCM PQ25 Max4 H82 0762
   Revision: B9082001    Serial number: 8601 297180548
   Coding: A0AC391A0A61341193284F347CEB8E70FF84730F60CD7D40330400230840
   Shop #: WSC 01369 210 40505
   VCID: 2C010D942608804B432-8078

   Subsystem 1 - Part No: 5K7 955 559 C  Labels: 5K7-955-559.CLB
   Component: RLS 171018 05  50  0106
   Coding: 0228EE

   Subsystem 2 - Part No SW: 7E0 959 801 P    HW: 7E0 959 801 P  Labels: 7E0-959-80X-V2.CLB
   Component: J386__TSG_FT  004 0653
   Serial number: KU0KU001101882740141
   Coding: 1400B0

   Subsystem 3 - Part No SW: 7E0 959 802 P    HW: 7E0 959 802 P
   Component: J387__TSG_BT  004 0653
   Serial number: KU0KU019101882921610
   Coding: 0400A0

   Subsystem 4 - Part No: 7E1 951 172
   Component: DWA-Sensor 00  001 0104
   Coding: 000000

   Subsystem 5 - Part No: 1K0 951 605 F
   Component: LIN BACKUP HO  H01 0009
   Coding: 000000

   Subsystem 6 - Part No: 7E1 951 172
   Component: DWA-Sensor 00  001 0104
   Coding: 000000

   Subsystem 7 - Part No SW: 7E0 959 442     HW: 7E0 959 442   Labels: 3C8-959-537.CLB
   Component: E221__MFL-DC1  H02 0103
   Serial number: 39180001895190098383
   Coding: B0FFFF

4 Faults Found:
00978 - Lamp for Low Beam; Left (M29)
            010 - Open or Short to Plus
             Freeze Frame:
                    Fault Status: 01101010
                    Fault Priority: 3
                    Fault Frequency: 5
                    Reset counter: 168
                    Mileage: 26565 km
                    Time Indication: 0
                    Date: 2022.04.05
                    Time: 20:12:00

00979 - Lamp for Low Beam; Right (M31)
            010 - Open or Short to Plus
             Freeze Frame:
                    Fault Status: 01101010
                    Fault Priority: 3
                    Fault Frequency: 24
                    Reset counter: 168
                    Mileage: 26565 km
                    Time Indication: 0
                    Date: 2022.04.05
                    Time: 20:11:25

01495 - Bulb for High-Beams; Left (M30)
            010 - Open or Short to Plus
             Freeze Frame:
                    Fault Status: 01101010
                    Fault Priority: 3
                    Fault Frequency: 9
                    Reset counter: 167
                    Mileage: 26565 km
                    Time Indication: 0
                    Date: 2022.04.05
                    Time: 20:05:06

01499 - Bulb for High-Beams; Right (M32)
            010 - Open or Short to Plus
             Freeze Frame:
                    Fault Status: 01101010
                    Fault Priority: 3
                    Fault Frequency: 4
                    Reset counter: 167
                    Mileage: 26565 km
                    Time Indication: 0
                    Date: 2022.04.05
                    Time: 20:05:06


-------------------------------------------------------------------------------

19 CAN Gateway

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 7E0-909-901.clb
   Part No SW: 7E0 909 901     HW: 7E0 937 090 D
   Component: GW-K-CAN TP20 H82 0762
   Revision: B9082001
   Coding: 042305
   Shop #: WSC 01369 210 40505
   VCID: 6889B184F2706C6B67A-803C

1 Fault Found:
01044 - Control Module Incorrectly Coded
            000 - -
             Freeze Frame:
                    Fault Status: 01100000
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 255
                    Mileage: 26565 km
                    Time Indication: 0
                    Date: 2022.04.05
                    Time: 16:47:44

Is this something to do with having the correct chassis type? There is a drop down menu when viewing the module where you can select different vehicle types... there's no Transporter option, so selected the closest which stated 'City Van/Pickup' I still get the fault though.


55 Range Control Module

-------------------------------------------------------------------------------
Address 55: Headlight Range (J431)       Labels:. 6R0-907-357.clb
   Part No SW: 6R0 907 357 C    HW: 6R0 907 357 B
   Component: AFS-ECU       005 0050
   Revision: --------    Serial number: --------------
   Coding: 0FCE020001000000
   Shop #: WSC 12345 123 12345
   ASAM Dataset: EV_HeadlRegulVWLWRCC 002006
   ROD: EV_HeadlRegulVWLWRCC.rod
   VCID: 3A2D3BCCDCDC2EFBC1E-806E

1 Fault Found:
5275220 - Headlight
          C107E 54 [137] - Missing Calibration / Basic Setting
          MIL ON - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 1
                    Fault Frequency: 1
                    Reset counter: 168
                    Mileage: 26565 km
                    Date: 2022.04.08
                    Time: 16:08:51

I'm guessing this will clear once I've done some driving? Or, is there something else I need to do?

The only other thing I have noticed is the DRLs seem really bright when the headlight selection dial is set in the '0' but they seem to dim slightly when you turn to Auto, Side Lights, Dipped beam etc. Is this normal behaviour?

As ever, any pointers would be much appreciated - thanks!
