T6 OEM LED-headlight retrofit
It was just an example (about 5F), to create the adaptation map use controller address 20 instead.
Of course it's available in OBDeleven - under Adaptation. However, unfortunately here OBDeleven is very clumsy - they are available one by one - only 150 of them
Attached a VCDS High Beam Assist adaptation map of LHD T6 (no NAV) with factory LED headlights.
1) Have you tried disconnecting starter battery for 15 mins to reset BCM?
2) Which lights (H4, H7) you had before?
I don't think so. 73 is for LEDs in front and rear.
Could you please post current full scan report.
Did you get your 7PP941571AE power modules brand new or refurbished?
Are they genuine OEM?
How much did you pay for each unit?
Probably not helping but you could monitor Low beam/High Beam status by using OBDeleven. Just to make sure they are consistent with what you have seen.
Central electrics > Live data > Channel 42:
Low beam --- inactive/active
Low beam -
High beam -
High beam -
They were used and from China (Aliexpress)
But I think they were genuine OEM...
Edit: one is from Aliexpress, the other from ebay. Both look like genuine OEM
Have you tried to disconnect PWM wires from your both headlamps(pin 14)?

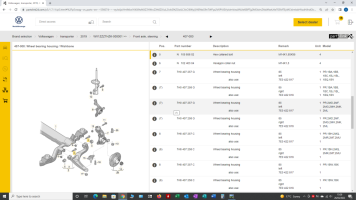

Legend. Thanks @Flyingspanner
Good evening fellow LED retrofitters… I finally finished my install today after collecting parts over the last 9 months or so… everything seems to be working ok but having trouble coding the range control module (6R0 907 357 C).
I’m trying to apply the following coding - as advised earlier in this thread:
OFCE020001000000 (For RHD)
But get the following message in VCDS:
If I try any of the above options, I then get this message:
It’s a used module bought on ebay hence the need to re-code it (not sure what vehicle it came from).
The lights do the levelling ‘sweep’ during ignition on - so the module is talking to the canbus - just can’t code it correctly.
Any ideas?
Edit - These are the fault codes showing:
I’m trying to apply the following coding - as advised earlier in this thread:
OFCE020001000000 (For RHD)
But get the following message in VCDS:
If I try any of the above options, I then get this message:
It’s a used module bought on ebay hence the need to re-code it (not sure what vehicle it came from).
The lights do the levelling ‘sweep’ during ignition on - so the module is talking to the canbus - just can’t code it correctly.
Any ideas?
Edit - These are the fault codes showing:
Code:
-------------------------------------------------------------------------------
Address 55: Headlight Range (J431) Labels:. 6R0-907-357.clb
Part No SW: 6R0 907 357 C HW: 6R0 907 357 B
Component: AFS-ECU 005 0050
Revision: -------- Serial number: --------------
Coding: 0000000000000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_HeadlRegulVWLWRCC 002006
ROD: EV_HeadlRegulVWLWRCC.rod
VCID: 3A2D3BCCDCDC2EFBC16-806E
8 Faults Found:
12583424 - Databus
U1201 00 [008] - No Communications
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 5
Reset counter: 207
10487040 - invalid data record
B2005 00 [008] - -
[ungueltiger Datensatz]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 2
5275220 - Headlight
C107E 54 [137] - Missing Calibration / Basic Setting
MIL ON - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 1
Fault Frequency: 1
13636352 - Control module not coded
U1013 00 [137] - -
[Steuergeraet nicht kodiert]
MIL ON - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 1
Fault Frequency: 1
5276949 - Positioning Motor for Headlight Range Left
C1085 15 [008] - Open or Short to Plus
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Reset counter: 207
5277205 - Positioning Motor for Headlight Range Right
C1086 15 [008] - Open or Short to Plus
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Reset counter: 207
5256725 - Rear Left Ride-Height Sensor
C1036 15 [008] - Open or Short to Plus
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 3
5256213 - Front Left Ride-Height Sensor
C1034 15 [008] - Open or Short to Plus
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 3
Last edited:
Thats a strange set of error codes
The first few relate to coding/setup but normally when you see 'open or short to plus' it would imply a wiring fault
As i supplied the loom for this (even though i do make the odd mistake) then its unlikely that both inputs and both outputs are wired incorrectly ?!?!?
I would suspect the module is the issue, if it comes from the wrong vehicle then it will have the wrong dataset/parametrization data on it
I did take one from somebody that was having issues with a second hand one and there was very little we could do with it, i could find no parameter file for one online to flash into it and even ODIS refused to deal with it and after a few hours of messing around it was abandoned as unsalvageable, it may be quicker and easier to buy a new module ?
The first few relate to coding/setup but normally when you see 'open or short to plus' it would imply a wiring fault
As i supplied the loom for this (even though i do make the odd mistake) then its unlikely that both inputs and both outputs are wired incorrectly ?!?!?
I would suspect the module is the issue, if it comes from the wrong vehicle then it will have the wrong dataset/parametrization data on it
I did take one from somebody that was having issues with a second hand one and there was very little we could do with it, i could find no parameter file for one online to flash into it and even ODIS refused to deal with it and after a few hours of messing around it was abandoned as unsalvageable, it may be quicker and easier to buy a new module ?
Thanks for the info Pauly - I must admit, the open/short faults do seem strange?
But first things first, I think I need to buy a new RCM… this could be the route of all the issues, and the fact a few others in this thread have similar problems coding it/blank data sets etc, It increasingly looks like this is the one part to avoid buying 2nd hand.
@Robert seems like the exception, where he did manage to re-code a used RCM.
I will report back with my findings when I fit a replacement.
Thanks
Word of the day, even if an 's' as opposed to a 'z' would be more British?
Yeah mine was from eBay and was the one Pauly tried to fix but ended up chucking away!
Yeah it’s a shame mine will be joining yours in the bin, but I guess it comes with the territory when buying used parts.
To be fair - out of all the used parts I bought for my retrofit, I’m glad it’s the £23 RCM that’s not working and not one of the actual headlights!
I still have it !
It is getting closer to the bin though to be fair, next time I have a clear out it could be toast
