Direct TPMS Retrofit

WARNING !!!
DO NOT BUY FROM THIS
ALIEXPRESS SELLER !!!

YiShuo Professional Auto-parts Store

He/she sells sensors with dead batteries.
I know that the price is tempting but please don't risk and don't waste your time and money.

this will not work! 3AA 907 275 B work...

OK so far so good !

I just explain general so that's why you not catch.

Now you wheels have numbers , like 01 , 02 , 03 , 04
You can c that on list which you attach

IN BASIC SETTINGS /CALIBRATION

Type 01 in empty place ( routine control option )
and press GO!

tire pressure icon on cluster will flashing
Go to wheel 01 --- I DON'T KNOW WHICH IS IN YOU CAR. You should know that . You added (ID) to wheel

Now take some strong magnet and touch around sensor ... about 15-30sek
Back to the car , press stop in calibration .

Type 02 and GO! do the seme with all wheels and go for drive . ;)

All fork for me , should work 4U ;) don't know did that calibration help but i did it
Maybe just short drive will do the job but i play without any help so i try everything :)


All the best !ay,


Hi guys! Im currenty having a VW Passat B7, but I figured maybe u guys can help me.

The car has factory fitted direct TPMS, but when i bought it, the module was broken. I ordered a "new", a refurbished one from ebay and 4 new oem sensors. So I took the tires to the shop and mounted the sensors, but it seems I have to program them manually. I followed the guide from Jester, but when I start the calibration process, the flat tire symbol in the IC does not flash. I havnt tried with magnet yet because of this.

Im also having a problem setting the wheel position, I try to change the parameters but it stil says unknown.

Position on sensors: LF 01, RF 02, RR 03 and LR 04

I think the next step would be to try a magnet and then calibrate, I also tried to deflate the tires without success.

The TPMS module seem to work fine with the cluster, and the correct ID of the sensors are stored in the module (see attached pic)

Any clues why I cant set the wheel position, or maybe I dont need this as long as I wake the right ones up when i calibrate them?


Module = 3AA 907 273F
Sensors = 3AA 907 275F


Post your current VCDS AUTOSCAN and photo of your Instrument Cluster TPMS screen after approximately 1km drive at decent speed.

Your TPMS system has autolocation function built-in so sensor allocation is not required. More details below - page 31.

  • Like
Reactions: mmi
Yes I saw that pdf earlier.

Default sensors (on summer tires that doesnt work either, but the shop can connect to them with tpms tool) are 3AA 907 275B
and default module which was broken was 3AA 907 273D

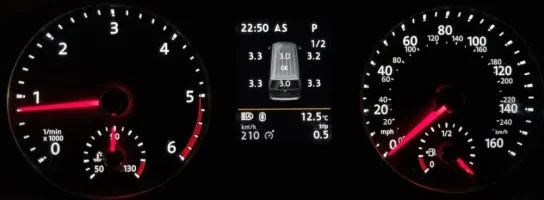

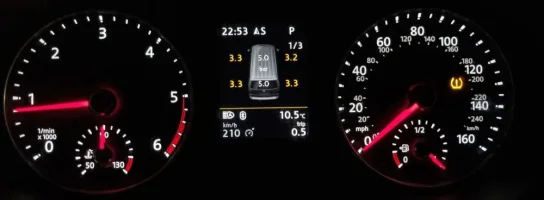

My cluster shows the same all the time, regardless of my driving. The flat tire icon flashed for about 30 sec, then light it on.

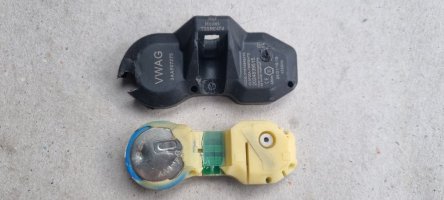

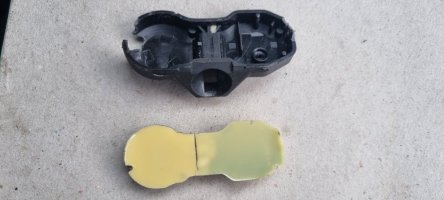

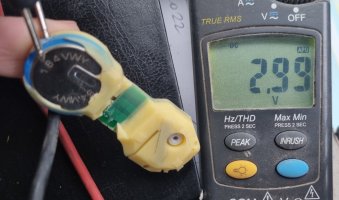

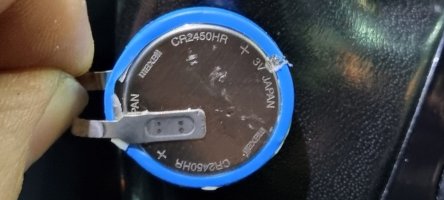

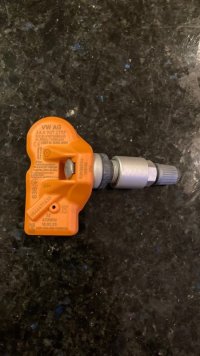

I also post a photo of one of the new sensors.


Before I typed in my sensors ID, I had the same problem as catfood in post 110

All sensors show same ID & 25.5 bar !

Edited to add; Sensor ID above 4294967295 is 2^32 (when starting at 0), so that's a made up/system default I guess.

I'm out of ideas now chaps.






Code:
My scan:

VIN: WVWZZZ3CZEE042894   License Plate:


Chassis Type: 3C-VW46 (7N0)
Scan: 01 02 03 08 09 10 15 16 17 19 22 25 42 44 46 4F 52 53 55 56
          61 62 65 72 77

VIN: WVWZZZ3CZEE042894

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
22-AWD -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
46-Central Conv. -- Status: OK 0000
4F-Centr. Electr. II -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
53-Parking Brake -- Status: OK 0000
55-Headlight Range -- Status: OK 0000
56-Radio -- Status: OK 0000
61-Battery Regul. -- Status: OK 0000
62-Door, Rear Left -- Status: OK 0000
65-Tire Pressure -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000
77-Telephone -- Status: Malfunction 0010

-------------------------------------------------------------------------------
