Electric help needed

[Dellmassive]

Feed in is: starter battery, ignition live and amt trickle.
Feed out is: leisure battery, amt trickle.
Negative is: vehicle chassis and amt trickle.

As above... thats the problem.

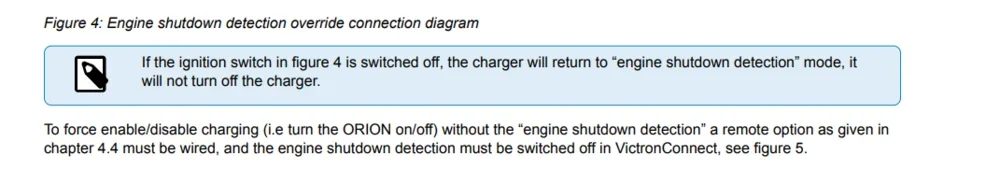

You need to move the thin IGN switched live over to the green block.

And assuming you are using a piggyback fuse buddy, (to pick up the IGN feed) that it is plugged in the right way around.

with that lin in as it is the ORION will be in auto mode and switch on/off as it reacts to the starter battery voltage.



[Dellmassive]

One of these small reds will be the AMT reverse charger?, the other one will be the IGN feed.?

move the IGN feed to the Green Block

https://www.victronenergy.com/upload/documents/Orion-Tr_Smart_DC-DC_Charger_-_Non-Isolated/Orion-Tr_Smart_DC-DC_Charger-en.pdf

.



[Dave Lawson]

One of these small reds will be the AMT reverse charger?, the other one will be the IGN feed.?

move the IGN feed to the Green Block




View attachment 107143


View attachment 107147
View attachment 107149

View attachment 107150
View attachment 107146

https://www.victronenergy.com/upload/documents/Orion-Tr_Smart_DC-DC_Charger_-_Non-Isolated/Orion-Tr_Smart_DC-DC_Charger-en.pdf

.

All sorted now thanks for everybody’s help! Put everything back together but now the airbag light is on (wasn’t before), checked I’d plugged it back in properly and I have, any ideas?



[Dellmassive]

did you turn the Ignition on at any point with any of the seat airbags or sensors disconnected or the seatbelt sensors?

scan tool to do a reset . . . or battery off job.



[Dave Lawson]

Must of done Battery off it is then!!
