[Guide] Solar Cables? . . . - How I Did It -

a bit of a side thread . . . but still relevant.

more info here regarding Crimp Tools:


www.t6forum.com

Battery cable crimping tool recommendation please

As per the title. Lots of options but the reviews are mixed at best, though anything I buy will not see anything more than light use. Been looking at the hydraulic options, like this ColdShine Hydraulic Crimper Tool Kit Tube Terminals Lugs Battery Cable Wire Crimping Force: Amazon.co.uk...
www.t6forum.com www.t6forum.com




Dellmassive said:
@Nigel W

it look like the female MC4 connector is damaged. (thats very odd . . was it out the box like that?)

they will just pull apart.

you can fit your own connector on the end,

or get a MC4 cable and cut it up.

or just tape it up with electrical tape as a temp measure. . .


Until you get a replacement from Renogy. . . . (keep us posted)
Click to expand...
Feedback as promised - Renology were fantastic, they requested a photo so they could clearly see the problem and came back to me the same day to apologise and asking what they needed to do to make it right.
I told them I would be happy with just a replacement plug as it was something I could fix myself.
They dispatched the same day by 24hr courier a pack of 5 Mc4 connectors - I was impressed, all now fixed and working perfectl.
My only regret is that perhaps I should have got the 200watt version, hahah. Next year perhaps?

Thats good . . . @Nigel W

Renogy are a good company.

remember you can add a second 100w panel to your existing setup - that has not got a controller and just connect it into your existing kit.?


eg>

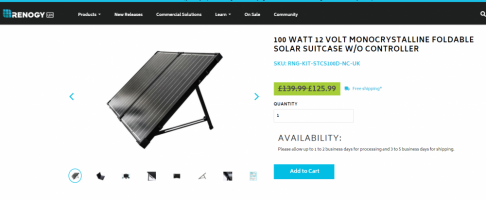

100 WATT 12 VOLT MONOCRYSTALLINE FOLDABLE SOLAR SUITCASE W/O CONTROLLER ( NO controller in this kit)​




uk.renogy.com

100 Watt 12 Volt Monocrystalline Foldable Solar Suitcase w/o Controller

This 100 Watt 12 Volt portable solar panel is perfect for the adventurous traveler; providing both convenience and dependability when living off the grid.
uk.renogy.com uk.renogy.com




...

and remember the 10% discount.




I can get you a discount at Renogy United Kingdom




.

Question - thinking about trying to run the cables through to the engine compartment (fall back is out through pop top when needed). Is there an easy way to get from cab to the engine?

@czmate1999

some more info here on that . . :

www.t6forum.com

Tpi 2046279, T6 Repair Instructions For Voltage Supply Of 2nd Battery

TPI: 2046279, T6: repair instructions for voltage supply of 2nd battery Tool and components: - Cable for 2nd battery 16mm² (7E0.971.044) - Corrugated tube (N.107.326.01) - Cable tie (N.106.622.01 or similar) - Grommet (2D0.906.376.S) - Butyl (AKL.450.005.05) - Wrapping tape - Holder of...
www.t6forum.com www.t6forum.com


plus lots of guides on YT.

there is a route through the fire wall up behind the glove box, its come out behind the starter battery,

I've seen them.... but not used them.

Could be a good water proof join.... but need to be tested.

Dellmassive said:
@czmate1999

some more info here on that . . :

www.t6forum.com

Tpi 2046279, T6 Repair Instructions For Voltage Supply Of 2nd Battery

TPI: 2046279, T6: repair instructions for voltage supply of 2nd battery Tool and components: - Cable for 2nd battery 16mm² (7E0.971.044) - Corrugated tube (N.107.326.01) - Cable tie (N.106.622.01 or similar) - Grommet (2D0.906.376.S) - Butyl (AKL.450.005.05) - Wrapping tape - Holder of...
www.t6forum.com www.t6forum.com


plus lots of guides on YT.

there is a route through the fire wall up behind the glove box, its come out behind the starter battery,
Click to expand...
Just had a look, have a chunky red cable from the leisure system coming through there…

czmate1999 said:
Is this cable ok to run battery side? Was thinking of fitting an Anderson to 1 side and the other ends straight to the battery set-up. Would drop the 30 amp fuse (included) to a 20 amp fuse.

[UL Listed] YCIND 3/8" Eyelet Terminal Battery Boost Cable Heavy-Duty 30A Fuse 12V/24V 12AWG Cord 10Ft : Amazon.co.uk

[UL Listed] YCIND 3/8" Eyelet Terminal Battery Boost Cable Heavy-Duty 30A Fuse 12V/24V 12AWG Cord 10Ft : Amazon.co.uk
www.amazon.co.uk
Click to expand...
Yes - thats fine,

just drop the fuse down to a 20A.

Ok, so slight change of plan.

Going to just run the below cable from the battery straight to the solar controller - no Anderson connection. I have found a space near the wheel arch where the controller can go - it will be out of site and not readily accessible but hopefully this is ok - and it’s right next to the battery compartment, see photo. I think I can route the cables behind the furniture to behind the drivers seat and think I might be able to route them to the engine compartment, which will be a neater job.

are there any issues with the solar controller being permanently connected to the leisure batteries?



No issues with MPPT being connected to Battery all the time.

provided the cable is fused next to the battery and the fuse is accessible.

Dellmassive said:
No issues with MPPT being connected to Battery all the time.

provided the cable is fused next to the battery and the fuse is accessible.
Click to expand...
Yeah, the fused part of the cable will be in the battery cupboard. It will be the renogy PWM controller unless you think it worth getting the victron? Would it offer that much better performance or reliability?

Would running the cables from MPPT controller to leisure battery be better than using any form of connectors? For example:

Or a straight fused cable? As the MPPT won't be moving, but that makes it connected to the battery all the time.
Then Id have the cables from solar into MPPT.

evans1089 said:
Would running the cables from MPPT controller to leisure battery be better than using any form of connectors? For example:

Or a straight fused cable? As the MPPT won't be moving, but that makes it connected to the battery all the time.
Then Id have the cables from solar into MPPT.
Click to expand...
You can do either.

Leaving the mppt connected to the battery is fine...

Just hot plug any mobile panels you have.

If my leisure battery is located at the rear, and I can't use the negative terminal for a ground from MPPT Controller, where would anyone suggest I get one from please?

evans1089 said:
If my leisure battery is located at the rear, and I can't use the negative terminal for a ground from MPPT Controller, where would anyone suggest I get one from please?
Click to expand...
There's an OEM earth stud by the wheel arch in both rear quarters
