Fogstar Drift 12v 230Ah Seatbase battery -- "How I Done It" --

makes sence,. . but i cant see a washer in the pics?

wonder if they use a nylon washer as an insulator?


they use them in there new 500A busbar unit.





looking at the Renogy. . .

solartex.co

MRBF Fuse Terminal Choose yours Amp - Solartex USA

Ensure robust circuit protection for your solar system with the Renogy MRBF Terminal Fuse. Choose from a range of amp ratings, reliable design. Solartex USA
solartex.co solartex.co





+++++++++++++


looks like they come with INSULATING SLEVES.



www.renogy.com

500A Combiner Box

Renogy provides solar panels, charge controllers, inverters, lithium batteries, portable solar generators and other equipments for off grid solar power systems
www.renogy.com www.renogy.com






this may work - M8 Nylon washer?



I'll be ordering one of these once I get the battery

www.12voltplanet.co.uk

Blue Sea Systems 5191 MRBF Terminal Fuse Block 30-300A

Space-saving, ingition-protected MRBF 5191 fuse block for high amperage circuits such as DC main feed, inverter, windlass, bow thruster etc. 58VDC, 300A rated.
www.12voltplanet.co.uk

Annoyingly the fuses on that one say do not use directly on the battery terminal, where this fuse can (with the isolation washer)

www.12voltplanet.co.uk

Cube (Battery Terminal) Fuses

Battery terminal (or cube) fuses that mount directly into a battery terminal clamp, eliminating any unprotected section of cable. For auto & marine use.
www.12voltplanet.co.uk

Need to wait and see if the blue sea MRBF fuse block will fit upside down.

And yeah the Renogy distribution box uses those isolation washers.

The Blue Sea block has an insulated stud instead of an insulating washer.

Last edited:
So you know when something is much bigger in real life than it looks in pictures...

I hadn't quite anticipated just how hoofin huge a megafuse holder is!!

Definitely going to need to try and get the terminal fuse fitted somehow. o_O

TallPaul_S said:
So you know when something is much bigger in real life than it looks in pictures...

I hadn't quite anticipated just how hoofin huge a megafuse holder is!!
View attachment 245051

Definitely going to need to try and get the terminal fuse fitted somehow. o_O
Click to expand...
yeh. . .;

that why i used MEGA only for the MAIN

and MIDI for the SUB MAIN,

then ATC Blade fuse for the small.


++++++++

MIDI:




++++

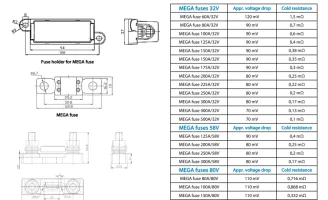

MEGA:




+++++++++++++




thats a nice fusebox. . . . . . where is it from ?

the MEGA/MIDI one.


+++++++++++++++







++++++++++++++

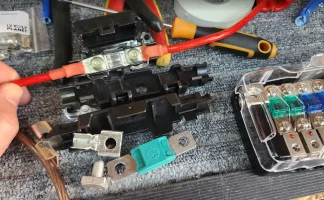

this is a nice pic that shows them together. . .

MEGA is twice the size of the MIDI.


Dellmassive said:
yeh. . .;

that why i used MEGA only for the MAIN

and MIDI for the SUB MAIN,

then ATC Blade fuse for the small.


++++++++

MIDI:

View attachment 245053

View attachment 245052


++++


MEGA:


View attachment 245054


+++++++++++++




thats a nice fusebox. . . . . . where is it from ?

the MEGA/MIDI one.


+++++++++++++++







++++++++++++++
Click to expand...
So in my system it's the main system fuse that I'm going to be speccing at 300a ( :oops: ) which is too big for a midi fuse.

The inverter fuse (either the Renogy 2000w or Victron 12/1200va) will be 250a (in the mega slot on that distribution block) and so 275a main fuse is the minimum really.

That's a mega/midi holder from simply split charge.

www.simplysplitcharge.co.uk

MEGA - MIDI fuse distribution box

MEGA MIDI fuse distribution box for 1 x mega 4 x midi fuses Fittings are 2 x M8 studs + 4 x M5 studs with attached nuts.
www.simplysplitcharge.co.uk www.simplysplitcharge.co.uk


On the plus side, the Ablemail AMT12-2 is much smaller that I thought it would be!! :rofl:

TallPaul_S said:
So in my system it's the main system fuse that I'm going to be speccing at 300a ( :oops: ) which is too big for a midi fuse.

The inverter fuse will be 250a (in the mega slot on that distribution block) and so 275a main fuse is the minimum really.

That's a mega/midi holder from simply split charge.

www.simplysplitcharge.co.uk

MEGA - MIDI fuse distribution box

MEGA MIDI fuse distribution box for 1 x mega 4 x midi fuses Fittings are 2 x M8 studs + 4 x M5 studs with attached nuts.
www.simplysplitcharge.co.uk www.simplysplitcharge.co.uk

View attachment 245057

On the plus side, the Ablemail AMT12-2 is much smaller that I thought it would be!! :rofl:
Click to expand...
nice. . .

use decent cable on those AMT units. . . the paperwork says use 1.5mm cable which i did at first,

but had issues with it not charging ( no on the BUS, but the VAN when i fitted on a few years ago)

i swapped out the cable for 2.5mm and run more direct feeds and it works a charm.


its only supposed to be 3A trickle charger, but it can go up to 9A,. . . so wire it for a 15A feed and it works great.


++++++++++

you can clearly see the effect here on the BUS from yesterday. . . from when i fitted it.

previously the starter battery would gradually drop in voltage over time,

Yellow - starter drops below 12.2v

Green - starter stays above 12.3v




+++++


+++++

Nice, you haven't got solar on yours yet, have you? So that's feeding directly from the battery?

TallPaul_S said:
Nice, you haven't got solar on yours yet, have you? So that's feeding directly from the battery?
Click to expand...
no solar on the van, but i do have a 160w panel for it, but ill wait till i get a poptop fitted.

in the meantime we just use mobile solar - which works fine.

when i do fit it, it will be the 160w panel + any mobile into a Victron MPPT feeding into the MIDI SUB main fuse panel.

.................

so in the current setup its:

50A Orion DC-DC from the engine,

charges the 230ah ROAMER Lifepo4

then AMT12-2 reverse trickle charge starter for extended off grid stays.

The Mobile EcoFlow Delta2 for any EHU as needed. (trickle charged via the SB50 50A flylead from the SUB MAIN fuse box from the SB230ah)

200-400W Mobile Solar via Victron MPPT connected via the second SB50 50A flylead from the SUB MAIN fuse box to the SB230ah)

+++

Don't forget to check the ground stud under the the drivers seat base flooring.

I had to cut mine off to fit that battery .... So it sat flat on the floor.

Without removing it, the battery was sitting on the dome nut near the front. Which is not good....

Dellmassive said:
Nice...

About time you started your own build thread for your van?... Looks like a nice system going in.

Welcome to #Team_GX

.
Click to expand...

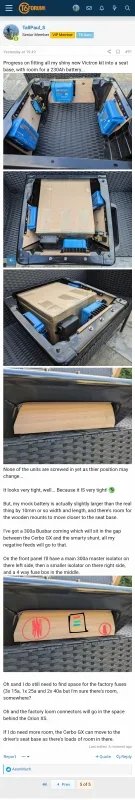

*Cough all in here mate, full build - kitchen, bikes, bed, and now electrics.

www.t6forum.com

TallPaul's Caravelle - MTB wagon!

So, a few thoughts after a full day in the van: First nights sleep was ok, not the best but I've had far worse. Tbh most of that was probably down to an unfamiliar pillow and getting comfortable in the sleeping bag - I can never get really comfortable as they twist around you. Heat: it's hot...
www.t6forum.com www.t6forum.com


Last edited:
TallPaul_S said:
*Cough all in here mate, full build - kitchen, bikes, bed, and now electrics.

www.t6forum.com

TallPaul's Caravelle - MTB wagon!

So, a few thoughts after a full day in the van: First nights sleep was ok, not the best but I've had far worse. Tbh most of that was probably down to an unfamiliar pillow and getting comfortable in the sleeping bag - I can never get really comfortable as they twist around you. Heat: it's hot...
www.t6forum.com www.t6forum.com

View attachment 245205
Click to expand...
Nice. You should add that link to your signature.

Back in the van....

So thought I would show the Orion XS settings I'm running with the Fogstar. Day to day I current-limit it to 30A from the full 50A.

Using the auto engine detection.

...

Start. 13.10v

Delayed start 13.05v

Off 12.99v

....


Screenshot_20240610_065227.jpgScreenshot_20240610_065242.jpgScreenshot_20240610_065235.jpgScreenshot_20240610_065158.jpgScreenshot_20240610_065140.jpgScreenshot_20240610_065107_Fogstar Drift.jpg


...

@Dellmassive any reason why you've kept low temp cut off on in the Orion XS settings? Surely this will prevent the heater from kicking in on the Fogstar?


And in other news, I contacted Fogstar about the ETA for these and was told they're now in stock and my preorder should be going out, very, very soon... :eek:

Last edited:
