OEM Webasto Auxiliary Heater To Parking Heater Upgrade

That's the one indeed. I like the longer distant to switch it on with an APP.
So there is no possibility to swtich on the heater with just a +12V signal?

That's the one indeed. I like the longer distant to switch it on with an APP.
So there is no possibility to swtich on the heater with just a +12V signal?
Everything is possible mate but I didn't explore it any further so can't advise.

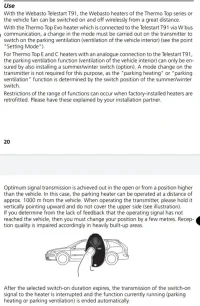

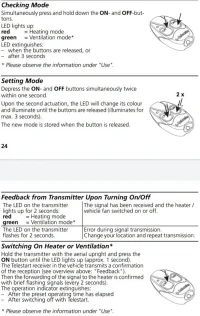

Telestart approach was simple and inexpensive, at least in my case.

My final coding (with 1 fault caused by missing overhead timer) is 5101.

Important settings to notice are as follows.
Byte 0 bit 0 activated - prevents flattening the battery
Byte 0 bit 2 deactivated - allows to heat engine and cabin simultaneously
Byte 0 bit 3 deactivated - front fan is controlled via CAN (for Cimatronic unit)
Byte 0 bit 4 activated & bit 5 deactivated - enables remote control via Telestart

  • Like
Reactions: mmi
My final coding (with 1 fault caused by missing overhead timer) is 5101.

Important settings to notice are as follows.
Byte 0 bit 0 activated - prevents flattening the battery
Byte 0 bit 2 deactivated - allows to heat engine and cabin simultaneously
Byte 0 bit 3 deactivated - front fan is controlled via CAN (for Cimatronic unit)
Byte 0 bit 4 activated & bit 5 deactivated - enables remote control via Telestart


Hi Robert, first of all many thanks for the great summary you've shared here!
I carefully read all your way towards this result. I have T6 Multivan MY2019 with pre-installed OEM Webasto.
Just ordered three components needed:
- 3Q0 963 513 - Telestart OEM form VAG
- 3G0 963 511 B - Remote to pair with the above
- the loom set with aerial for wiring the Telestart module under the front right seat.
Unfortunately, I don't have VCP, but found some chaps around to help me with re-flashing.
For adaptation Adapter 18, I have Carport that luckily do the change form 4101 to 5001 (or 5101 as in your last post). Just checked it.

The question is about overhead panel.
I don't have one in my T6. Today I checked that under the cover, there is no any wire to plug for the VAG 7E5 919 037 J (the latest panel version), that I can easily get on eBay.

Did you managed to get through this?
As I can see, the fault code you still have is exactly due to the absence of the overhead timer.

The overhead location is quite tight but I feel there should be the way to get the panel connected to the power and CAN-bus without entire roof cover removal.

Thanks for sharing thoughts!

Hi Robert, first of all many thanks for the great summary you've shared here!
I carefully read all your way towards this result. I have T6 Multivan MY2019 with pre-installed OEM Webasto.
Just ordered three components needed:
- 3Q0 963 513 - Telestart OEM form VAG
- 3G0 963 511 B - Remote to pair with the above
- the loom set with aerial for wiring the Telestart module under the front right seat.
Unfortunately, I don't have VCP, but found some chaps around to help me with re-flashing.
For adaptation Adapter 18, I have Carport that luckily do the change form 4101 to 5001 (or 5101 as in your last post). Just checked it.

The question is about overhead panel.
I don't have one in my T6. Today I checked that under the cover, there is no any wire to plug for the VAG 7E5 919 037 J (the latest panel version), that I can easily get on eBay.

Did you managed to get through this?
As I can see, the fault code you still have is exactly due to the absence of the overhead timer.

The overhead location is quite tight but I feel there should be the way to get the panel connected to the power and CAN-bus without entire roof cover removal.

Thanks for sharing thoughts!
I don't need timer so I purposely didn't install overhead unit. Remote only works 100% for my needs.
Installation of this overhead unit is very simple, just power supply and CAN wiring which can be ran through A pillar and there is no need to remove roof lining at all :thumbsup:

See wiring below (4th picture).

  • Like
Reactions: mmi
See wiring below (4th picture).

Hi Robert, yes, this is exactly how I plan to do this.
It seems to me that both CAN links can be soldered directly to BCM T73b socket while +12DC and GND can be sourced somewhere nearby. I assumed that blue socket T10af in left A-pillar fuse/socket box doesn't exist in my case. (My T6 is LHD and therefore the BCM is on the left side)

Once panel is installed and properly connected, do I need any specific adaptation for it?

Many thanks again!
I will write the separate post once I'm done with this.

Last edited:
Hi Robert, yes, this is exactly how I plan to do this.
It seems to me that both CAN links can be soldered directly to BCM T73b socket while +12DC and GND can be sourced somewhere nearby. I assumed that blue socket T10af in left A-pillar fuse/socket box doesn't exist in my case. (My T6 is LHD and therefore the BCM is on the left side)

Once panel is installed and properly connected, do I need any specific adaptation for it?

Many thanks again!
I will write the separate post once I'm done with this.
You just need to add your new unit in CAN Gateway(19) INSTALLATION LIST and then verify its own coding but default coding should work anyway.

Last edited:
Hi everyone, does anybody know if for T5.1 is the same wiring procedure? I own a T5.1 2011 without parking heater, only stationary. I intend to install the overhead module and to operate it by there.

Thanks in advance

Last edited:
Hi everyone, does anybody know if for T5.1 is the same wirring procedure? I own a T5.1 2011 wihout parking heate, only stationary. I intend to install the overhead module and to operate it by there.

Thanks in advance
Can you post your complete VCDS autoscan?

  • Like
Reactions: mmi
Can post your complete VCDS autoscan?
Yap Robert, it is a Thermo Top C, and Climatic AC, not Climatronic

Address 08: Auto HVAC (J301) Labels:| 7E5-907-047.clb
Part No SW: 7E5 907 047 AC HW: 7E5 907 047 AC
Component: Climatic-T5 H11 0203
Revision: 00001005
Coding: 0000000002
Shop #: WSC 02757 790 50316
ASAM Dataset: EV_ClimaticT5 A01003
ROD: EV_ClimaT5Basis.rod
VCID: 70EF65C7ABA31ACF55-8024

No fault code found.

-------------------------------------------------------------------------------
Address 18: Aux. Heat Labels: None
Part No: 7E0 815 071 B
Component: J737__Standheizung 0605
Revision: 00085000 Serial number: 09019275F00000
Coding: 0000031
Shop #: WSC 02757 790 00000
VCID: 24475997E7DBF66FE1-8070

No fault code found.

-------------------------------------------------------------------------------

Address 08: Auto HVAC (J301) Labels:| 7E5-907-047.clb
Part No SW: 7E5 907 047 AC HW: 7E5 907 047 AC
Component: Climatic-T5 H11 0203
Revision: 00001005
Coding: 0000000002
Shop #: WSC 02757 790 50316
ASAM Dataset: EV_ClimaticT5 A01003
ROD: EV_ClimaT5Basis.rod
VCID: 70EF65C7ABA31ACF55-8024

No fault code found.

-------------------------------------------------------------------------------
Address 18: Aux. Heat Labels: None
Part No: 7E0 815 071 B
Component: J737__Standheizung 0605
Revision: 00085000 Serial number: 09019275F00000
Coding: 0000031
Shop #: WSC 02757 790 00000
VCID: 24475997E7DBF66FE1-8070

No fault code found.

-------------------------------------------------------------------------------
Thanks for this but can you post your complete VCDS autoscan? I would like to see all components on board of your vehicle.

  • Like
Reactions: mmi
Here you go

Code:
Saturday,21,November,2020,15:35:59:00009
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 19.6.2.2
Data version: 20200210 DS308.0
www.Ross-Tech.com


VIN: WV2ZZZ7HZBH131677   License Plate:
Mileage: 291860km-181353mi   Repair Order:


Chassis Type: 7H-VN75 (6N0)
Scan: 01 03 04 08 09 15 17 18 19 25 37 56 69 77 0B

VIN: WV2ZZZ7HZBH131677   Mileage: 291860km-181353miles

01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
18-Aux. Heat -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
