The Camera is 6v dc... not 12v. The module supplies the power to the camera and that is 6v.
Reversing Camera - Lowline to Highline Upgrade/Retrofit
- Thread starter Robert
- Start date
I have to surrender and use dedicated camera.
Already bought one. It doesn't come stand alone and normally must be got with integrated handle.

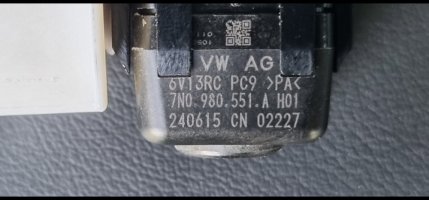

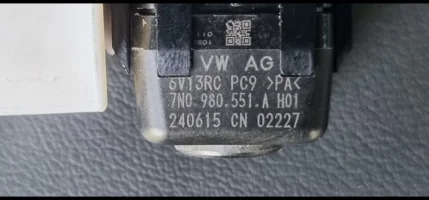

My extracted camera from the handle unit.
And my complete kit
.
Two wires for power supply and another 2 for CAN-BUS.
So the standard camera found in the T6 wouldnt work and needs swapping, how come? Cheers

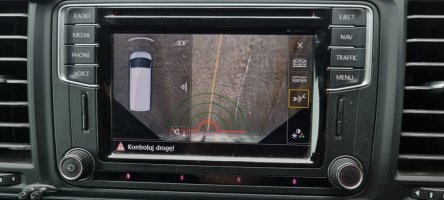

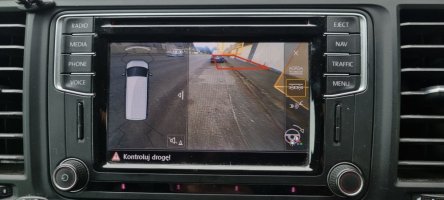

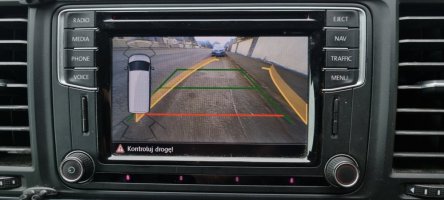

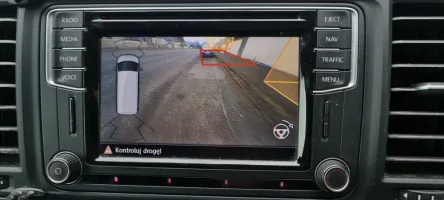

Another retrofit completed.My extracted camera from the handle unit.
View attachment 128608

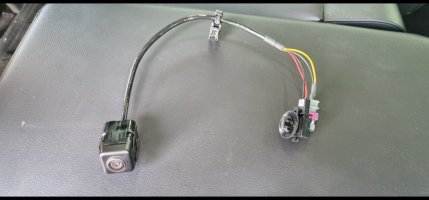

And my complete kit
View attachment 128609
Two wires for power supply and another 2 for CAN-BUS.
benzinkopf
Malaysian member

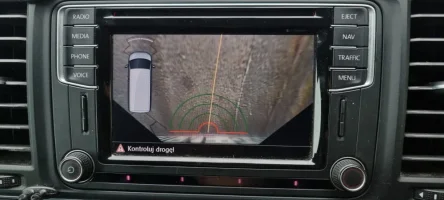

Hi Robert!! it looks awesome. great. btw. how do you get the tow bar view with the line? its not in my setup. not sure if i miss any coding?
benzinkopf
Malaysian member
Here’s my latest scan. I just saw that you actually have Trailer Tow installed. maybe due to that. Because if i enabled the trailer ahk enabled in 6c coding, there will be no assistance lines in all 3 view modes at all.
btw. can you help check if my Door module coding is preventing the rain closing operation? I know in PQ25 sometimes it being blocked by Door controller.

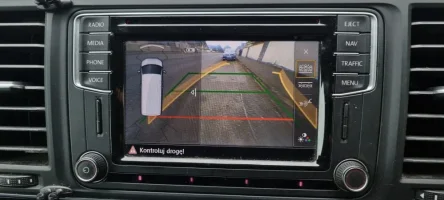

Oh and did you calibrate your camera? It looks blurry in top view mode. After i calibrate, the top view is sharper at the edge near bumper before it stretched out the image
btw. can you help check if my Door module coding is preventing the rain closing operation? I know in PQ25 sometimes it being blocked by Door controller.
Oh and did you calibrate your camera? It looks blurry in top view mode. After i calibrate, the top view is sharper at the edge near bumper before it stretched out the image
