T6.1 battery removal / access Fuse Box SJ

[Skyliner33]

I am in the process if planning a leisure battery install and dc-dc charger.

However firstly I cant work out how to remove the battery to get access to the bulkhead grommets. Secondly is it possible to take power from the fusebox that is on top of the battery. I seem to have some of these unused.



[Dellmassive]

Info on T6.1 SJ Fuse Box . . .

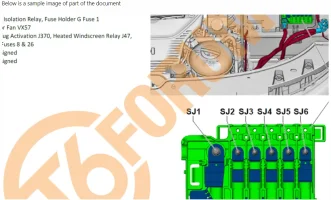

https://www.t6forum.com/downloads/vw-t6-1-fusebox-fuse-chart-sj-engine-bay.134/



[Eclipse Custom Vans]

I am in the process if planning a leisure battery install and dc-dc charger.

However firstly I cant work out how to remove the battery to get access to the bulkhead grommets. Secondly is it possible to take power from the fusebox that is on top of the battery. I seem to have some of these unused.

View attachment 105389

If you cant get the battery out, perhaps you shouldnt be doing a full install Joke



[Skyliner33]

If you cant get the battery out, perhaps you shouldnt be doing a full install Joke

i probably could, but was asking for the correct way first



[Eclipse Custom Vans]

i probably could, but was asking for the correct way first

when you find out, let me know



[Loz]

Secondly is it possible to take power from the fusebox that is on top of the battery? I seem to have some of these unused.

yes perfect for that.



[Dellmassive]

It looks like WV have just done on the T6.1 what we have allready done on the T6 . . . . . . . . added an extra FuseBox next to the battery.

for the big cables as the battery post gets full up . .

VW solution . . . 2021




our solution . . . . 2018



i must say i do like that solution ( i like mine too) . . . but very neat from VW. - wonder if you can get it as a retro fit for T6?


Same thing !!!!



[Skyliner33]

It looks like WV have just done on the T6.1 what we have allready done on the T6 . . . . . . . . added an extra FuseBox next to the battery.

for the big cables as the battery post gets full up . .

VW solution . . . 2021

View attachment 105413


our solution . . . . 2018

View attachment 105414View attachment 105415

i must say i do like that solution ( i like mine too) . . . but very neat from VW. - wonder if you can get it as a retro fit for T6?


Same thing !!!!

Battery looks more exposed to dirt and the elements.

And I still cant open that &*^&* fuse box

Someone must have sussed it :/



[Dellmassive]

come on . . its a fuse box, so a serviceable item.

get your trim tools out.

pop the clip at the front to get it off the battery.

then get the trim tools on it . . . .

post pics of the inside . . . . .



[Skyliner33]

come on . . its a fuse box, so a serviceable item.

get your trim tools out.

pop the clip at the front to get it off the battery.

then get the trim tools on it . . . .

post pics of the inside . . . . .

Its definitely not that. The top part seems to be hinged at the front, I can release a clip at the back right but then Im stuck :/



[Dellmassive]

looks like the yellow bit is the cover for the actual fuses. - that should pop off.

and the green bit is the lower SJ fuse box that is clipped onto the top of the battey



[Dellmassive]

@BognorMotors

"Trade member and supplier of T6 & T6.1 vans + Mods & Upgrades"

Bognor Motors - Hire, Sales, Service & MOT Bognor Regis & Chichester

Chichester & Bognor Car and Van servicing and repairs, MOT testing, car and van sales, leasing and contract hire, and MPV, minibus and Conversions.

bmvs.co.uk

Can you offer @Skyliner33 any advice on getting into the sj fusebox above.?


.



[skoroxod]

Но это еще не все. Есть еще один под батареей.



translated:

But that is not all. There is another one under the battery.


Защелки крышки отмечены красным цветом. Чтобы его снять, нужно отодрать края в специально отведенных местах отверткой.




translation:


The lid latches are marked in red. To remove it, you need to tear off the edges in specially designated places with a screwdriver.



[BognorMotors]

Looks like it’s been answered above. Good work



[Dellmassive]

T6.1 SA Fusebox - under battery tray . . .

T6.1 - VW T6.1 Fusebox/Fuse Chart SA - Primary Battery Fusebox

Fuse Chart/Listing For Fuse Holder SA - In Engine Compartment Located under battery, this fusebox contains the primary heavy duty feeds from the battery to main vehicle equipment VIP Membership is required to download this document Below is a...

www.t6forum.com

thank you @skoroxod

is that your van? , your pictures?

what is the blue stuff on the battery terminals?

can you get a few close up pics of the fuses and bus bar in the SJ fuse box?



[skoroxod]

И от этого батарея будет чистой. 7E0. 119. 515 A


treanslation . . :

And this will keep the battery clean. 7E0. 119.515 A



[skoroxod]

спасибо @skoroxod

это ваш фургон, ваши фотографии?

что это за синяя штука на клеммах аккумулятора?

можете ли вы получить несколько фотографий крупным планом предохранителей и шины в блоке предохранителей SJ?

Фургон мой, и фотографии тоже мои. Голубые стержни смазка для того чтобы предотвратить стержни от окислять. Завтра я сделаю фото крупным планом. Здесь уже темно.

translate :
The van is mine, and the photographs are mine too. Blue stems are grease to prevent stems from oxidizing. Tomorrow I'll take a close-up photo. It's already dark here.



[Dellmassive]

@skoroxod thank you. have you got a link for that blue Grease?

look forward to the new pic tomorrow.


Normfest Poltec - Battery-Terminal Protection Spray 300mlProduct Code: NOR2897332300



[Skyliner33]

Thanks all for the contributions.



[skoroxod]

@skoroxod
thank you. have you got a link for that blue Grease?

look forward to the new pic tomorrow.


Normfest Poltec - Battery-Terminal Protection Spray 300mlProduct Code: NOR2897332300

****

Вот обещанное фото. Сфотографировал обложку этого блока. Здесь все понятно, как прикреплено. Я не нашел синего баллончика с распылителем. У нас такой спрей продается в каждом магазине и везде разный. Есть много разновидностей таких спреев.


***

Here is the promised photo. Photographed the cover of this block. Everything is clear here how it is attached. I have not found a blue spray can. We sell this spray in every store and is different everywhere. There are many varieties of these sprays.


****
