(Side Assist) / (Blind Spot Detection & Rear Cross Traffic Alert) retrofit

[dnoermann]

C was never made for PQ - only for MQB
so you must downgrate them to B + proper data set

Spacewalker is right, and probably this could be one issue.
Looking into ETKA for the Sharan and Seat Alhambra till 15.07.2019 5Q0907686B was used.
After that time VW switched to 2Q0907686B.
So there must be a reason why they did not jump to "C".
Even if you can Flash "C" and Code the "C" to PQ35, probably it will not work because of some incompatibility which was introduced with "C"
I will try my setup with "B" when i find time ...



[Robert]

So this incompatibility of C version must be exclusive to automatic braking element of RTA only.
Cause everything else works 100% on PQ25 as I have already verified.



[Robert]

Just found this .

Adapter Wire Module 1k8919472a Set 1k8 Radio - Sockets Car - AliExpress

Get set at a bigger saving. It is used for the upgrade and the new module. Find products of automobiles parts accessories with high quality at AliExpress.

www.aliexpress.com

and this one

For VW PQ Platform Car Install MQB PDC Parking OPS System Adapter Wire 3 To 2 Connector Cable Harness Golf Jetta Passat Touran - AliExpress 34

Smarter Shopping, Better Living! Aliexpress.com

www.aliexpress.com

I am getting fed up . Waiting, waiting, waiting and still nothing arrives .
I have changed my mind and I will re-pin instead of using adapter loom.
Both plugs are already purchased and I hope to get them quickly.



[hanzz]

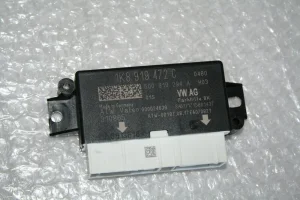

I have upgraded my PDC Modul to 1K8 919 472 C
But now I get the error: U1121 00 [009] - Missing Message



[hanzz]

I have upgraded my PDC Modul to 1K8 919 472 C
But now I get the error: U1121 00 [009] - Missing Message

...this Error is in the PDC not in the Side Assist



[mmi]

I have upgraded my PDC Modul to 1K8 919 472 C
But now I get the error: U1121 00 [009] - Missing Message

Ouch . Mine is still on it's way. Any more details - missing message from where? Interested to see the section of the scan.



[Robert]

I have upgraded my PDC Modul to 1K8 919 472 C
But now I get the error: U1121 00 [009] - Missing Message

What is your HW and SW version of your PDC module?



[hanzz]

Ouch . Mine is still on it's way. Any more details - missing message from where? Interested to see the section of the scan.

I only have Obdeleven at the moment. It does not show me from where.

What is your HW and SW version of your PDC module?



[hanzz]

It seems that the parameter file is missing at my device...[/URL]

It was the missing parameter file!
Now everything works fine even with different Software version, master 0081 and slave 0080


Next step ist to find why my new PDC Modul has the error U1121 00 [009] - Missing Message...



[Robert]

I am speechless



[mmi]

I am getting fed up . Waiting, waiting, waiting and still nothing arrives .
I have changed my mind and I will re-pin instead of using adapter loom.
Both plugs are already purchased and I hope to get them quickly.

Patience is a virtue



[Deaky]

Found this earlier

VW T6 - Adapter + Module 1K8919472A - Upgrade

www.carsystems.eu



[Robert]

Found this earlier

VW T6 - Adapter + Module 1K8919472A - Upgrade

www.carsystems.eu

Too expensive for me



[Lez78]

...this Error is in the PDC not in the Side Assist

what is your coding?



[hanzz]

Coding was 0051151111



[Lez78]

Coding was 0051151111

your coding is wrong... 0051151111 need to change to 0001151111 other wise it will looking for the Electric steering assist, and the directional ABS sensors



[mmi]

No, missing msg from electric power steering

View attachment 67964

your coding is wrong... 0051151111 need to change to 0001151111 other wise it will looking for the Electric steering assist, and the directional ABS sensors

Did the coding "0001151111" clear also the earlier fault of missing electric power steering?



[hanzz]

your coding is wrong... 0051151111 need to change to 0001151111 other wise it will looking for the Electric steering assist, and the directional ABS sensors

same Error...



[Lez78]

Did the coding "0001151111" clear also the earlier fault of missing electric power steering?

PM me a Autoscan please



[mmi]

Not the exact one but close...

934692A Field Disturbance Sensor User Manual Testreport ETS 300 335 Hella KGaA Hueck &

Field Disturbance Sensor Users Manual-1 details for FCC ID NBG934692A made by Hella KGaA Hueck & Co.. Document Includes User Manual Testreport ETS 300 335

fccid.io
