For lamp diagnostics - I think you missed byte 16 - now 8F, change to C2 (you do have fog lights??? - without fogs C0).

For byte 23 your picture above is correct (value 60), however the long string has there value 20.
Well, I see bit 7 in your picture - the tickboxes;)

Yes I have front fog lights. Ok will try that thanks. For byte 16 I checked bit 4 and it wasn't ticked.. I'll check that also. Thanks!

62A0393A0A21209201284F742CEB8ED4C2A0720F60C77960320400230800

Still not getting any DRLs atall.. and the bulb out is
still there..

I put byte 16 bit 4 to C2 (it was 8F and when I ticked the box it changed to 9F only).. this was what you said right?

Last edited:
i checked my cabling so many times when i was doing them - i do have the 5 and 6 going to pin 10 and 28 and 56 to pin 14.. and DRL comes from the 10pin plug to the new plug pin 12..

is this just a coding issue?
@mmi @Pauly @Robert thanks in advance!

62A0393A0A21209201284F742CEB8ED4C2A0720F60C77960320400230800

Still not getting any DRLs atall.. and the bulb out is
still there..
Well - it looks better - the codings mentioned in last few hours are there.
However, there are a few peculiarities elsewhere, which are different than on any other coding. Perhaps remnants of some testing?

Attached an excel sheet which has the following codings for comparison:
Column H: a van with front LEDs+rear LEDs, no fogs+tailgate​
Column I: a van with front LED, nonLED rear, barn doors​
Column L: your coding this morning - peculiarities marked with orange​
  • The following coding differences are sticking out - in order of their peculiriaty to me
  • byte 29 (bit 5)
  • byte 11 (bit 2, bit 5)
  • byte 17 (bit 5)
  • byte 21 (bit 1) - do you have adjustable dimmer for instrument lighting?
  • byte 19 (bit 7)
What's are now the faults in the BCM?
Could you please post full scan section of the BCM - just to verify the version?
Perhaps worth to reset the BCM by disconnecting the battery for a few minutes?


Attachments

  • T6_09_BCM_Coding_Decoder_(T6Frelease_1f)-SCOTIA.xlsx
    63.6 KB · Views: 34
ok thanks for that. hhhmm strange - i havent really done any coding before - the only thing was a mfsteering wheel and front fog lights that i activated.

How do i do a full bcm scan with obd?

i'll try disconnecting the battery and see what the faults are.

byte 21 bit 1 - adjustable dimmer for instrument lighting? - no i didnt have that i only had the wheel to adjust the old lights, so i have taken the power and ground from there for the RCM 26pin.

thanks again.

Ok. Thanks. Trying to eliminate coding glitches... as the codings are not fully documented or sometimes even wrong (coming actually from a similar platform).
How do i do a full bcm scan with obd?
Basically - do a connect/scan and email results to yourself - by clicking on top right corner the envelope symbol.
Also, depending what you've done in the past, using "History" -> if there is a Full scan, tap it and email to yourself.

Hello, ok managed to disconnect for a few mins the battery then do a scan.. here is the output:

Code:
OBDeleven data log

Date: 2021-04-11 14:33

    VIN: WV2ZZZ7HZGH011847
    Car: Volkswagen Transporter
    Year: 2016
    Body type: VAN
    Engine: CXHA 110 kW (150 HP) 2.0 l
    Mileage: 42640 KM

---------------------------------------------------------------
01 Engine

    System description: R4 2.0l TDI
    Software number: 04L906056KM
    Software version: 6186
    Hardware number: 04L907445
    Hardware version: H02
    ODX name: EV_ECM20TDI03004L906056KM
    ODX version: 004013
    Long coding: 0019401C432401090000

    Trouble codes:
        P046C00 - EGR Sensor "A" Circuit Range/Performance
            Intermittent
        P056200 - System Voltage Low Voltage
            static
        P190E00 - Coolant pump for charge pressure cooler Supply voltage
            Intermittent


---------------------------------------------------------------
03 Brakes

    System description: ESC
    Software number: 7E0907379P
    Software version: 0132
    Hardware number: 7E0907379M
    Hardware version: H05
    Serial number: 41495000001554
    ODX name: EV_Brake1ESCCONTIVN75XGP2
    ODX version: 011001
    Long coding: 347E40982563847F2C7D027AA48921F3780000

    Trouble codes:
        No trouble codes found

---------------------------------------------------------------
04 Steering Angle Sensor


    Trouble codes:
        No trouble codes found

---------------------------------------------------------------
08 Air Conditioning

    System description: Climatic-T5
    Software number: 7E0907047S
    Software version: 0607
    Hardware number: 7E0907047S
    Hardware version: H22
    ODX name: EV_ClimaticT5
    ODX version: A01003
    Long coding: 0000000003

    Trouble codes:
        No trouble codes found

---------------------------------------------------------------
09 Central Electrics

    System description: BCM PQ25 Max4
    Software number: 7E0937090
    Software version: 0736
    Hardware number: 7E0937090
    Hardware version: H80
    Serial number: 0771 134150114
    Long coding: 62A0393A0A21209201284F742CEB8ED4C2A0720F60C77960320400230800

    Subsystems:
        System description: RLS 150615 03
        Software number: 5K7955559B
        Software version: 0059
        Hardware version: 37
        Long coding: 0228DD

        System description: J386__TSG_FT
        Software number: 7E0959801H
        Software version: 8654
        Hardware version: 003
        Serial number: KU0KU016061551672215
        Long coding: 0400A0

        System description: J387__TSG_BT
        Software number: 7E0959802H
        Software version: 8654
        Hardware version: 003
        Serial number: KU0KU016061551670136
        Long coding: 1400A0

        System description: E221__MFL-TAT
        Software number: 6C0959442
        Software version: 0023
        Hardware version: H06
        Serial number: 2131816385801770AB2B
        Long coding: 240000

    Trouble codes:
        00978 - Left low beam headlamp bulb Open circuit/short circuit to B+
            Intermittent
        00979 - Right low beam headlamp bulb Open circuit/short circuit to B+
            Intermittent


---------------------------------------------------------------
10 Parking Assistance

    System description: PARKHILFE 4K
    Software number: 7E0919475M
    Software version: 0205
    Hardware number: 1Q0919475
    Hardware version: H03
    Serial number: 32991509005452
    ODX name: EV_VW75XParkAssis4K
    ODX version: 001008
    Long coding: 118008

    Trouble codes:
        No trouble codes found

---------------------------------------------------------------
15 Airbag

    System description: VW10Airbag00G
    Software number: 7E0959655D
    Software version: 0016
    Hardware number: 7E0959655D
    Hardware version: 008
    Serial number: 003PH000831E
    ODX name: EV_AirbaVW10BPAVW12X
    ODX version: 001028
    Long coding: 000000000000000000000000000000003047

    Trouble codes:
        No trouble codes found

---------------------------------------------------------------
17 Dashboard

    System description: KOMBI
    Software number: 7E0920860L
    Software version: 1007
    Hardware number: 7E0920860L
    Hardware version: H05
    Serial number: 00000000000000
    ODX name: EV_Kombi_UDS_VDD_RM09
    ODX version: A05730
    Long coding: 160B010300

    Trouble codes:
        U112100 - Databus missing message
            static


---------------------------------------------------------------
18 Parking Heater

    System description: STH-T5GP2
    Software number: 7E0963273
    Software version: 0007
    Hardware number: 7E0963273
    Hardware version: 002
    ODX name: EV_AuxilParkiHeateWOST5G2
    ODX version: 001010
    Long coding: 4101

    Trouble codes:
        No trouble codes found

---------------------------------------------------------------
19 Gateway

    System description: GW-K-CAN TP20
    Software number: 7E0909901
    Software version: 0736
    Hardware number: 7E0937090
    Hardware version: H80
    Long coding: 042205

    Trouble codes:
        01044 - Control module incorrectly coded
            static
        03158 - Information electronics control module 1 No signal/communication
            static


---------------------------------------------------------------
25 Immobilizer

    System description: IMMO
    Software number: 5K0953234
    Software version: 1007
    Hardware number: 5K0953234
    Hardware version: H05
    Serial number:
    ODX name: EV_Immo_UDS_VDD_RM09
    ODX version: A03710
    Long coding: 000000

    Trouble codes:
        No trouble codes found

---------------------------------------------------------------
55 Headlight Regulation

    System description: AFS-ECU
    Software number: 6R0907357C
    Software version: 0050
    Hardware number: 6R0907357B
    Hardware version: 005
    Serial number: --------------
    ODX name: EV_HeadlRegulVWLWRCC
    ODX version: 002006
    Long coding: 0000000000000000

    Trouble codes:
        U120100 - Data bus No communication
            Intermittent
        B200500 - Data record invalid
            Intermittent
        C107E54 - Headlight No basic setting
            static
        U101300 - Control module not coded
            static
        C108515 - Left headlamp beam adjusting motor Open circuit/short circuit to B+
            Intermittent
        C108615 - Right headlamp beam adjusting motor Open circuit/short circuit to B+
            Intermittent
        C103615 - Left rear level control system sensor Open circuit/short circuit to B+
            Intermittent
        C103415 - Left front level control system sensor Open circuit/short circuit to B+
            Intermittent


---------------------------------------------------------------
5F Multimedia


    Trouble codes:
        No trouble codes found

---------------------------------------------------------------
61 Battery Regulation

    System description: Batt.regelung
    Software number: 7E0907534
    Software version: 0736
    Hardware number: 7E0937090
    Hardware version: H80
    Serial number: 0771 134150114
    Long coding: 330B1A73

    Subsystems:
        System description: J367-BDM
        Software number: 7E0915181G
        Software version: 0223
        Hardware version: H08
        Serial number: 62111808441261928100

    Trouble codes:
        No trouble codes found

---------------------------------------------------------------
69 Trailer Control

    System description: Anhaenger
    Software number: 1K0907383H
    Software version: 0130
    Hardware number: 1K0907383G
    Hardware version: H12
    Serial number: 00000370576719
    Long coding: 410D000103000000

    Trouble codes:
        No trouble codes found

Seems like a lot in 55 headlight reg.. is this the RCM? This I bought new from VW, not a 2nd hand one.

Last edited by a moderator:
  • Like
Reactions: mmi
Seems like a lot in 55 headlight reg.. is this the RCM? This I bought new from VW, not a 2nd hand one.
Did you add module 55 - headlight range controller into Gateway Installation List (under Control Units - Edit (red pen))? You have the Infotainment head unit (radio) present?

Did you add module 55 - headlight range controller into Gateway Installation List (under Control Units - Edit (red pen))? You have the Infotainment head unit (radio) present?
Hmmm I didn't do that how do I do that?!

  • Like
Reactions: mmi
Hmmm I didn't do that how do I do that?!
Using obd11 works ok too? @mmi

Yes of course, as per videos @Robert posted. Here is still version ;)

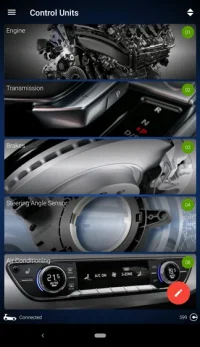

add module 55 - headlight range controller into Gateway Installation List (under Control Units - Edit (red pen))?
Red pen - edit

Tick 55. If automatic configuration is proposed - don't allow that (as possibly doesn't do the right things).

ok cool - got the 55 added (feel v stupid not having done that.. didnt see it properly on this thread?!)..oops..

Now done a scan and here is the result:
