Portable Power Packs - LifePo4 Battery Boxes -- How I done It --

Dellmassive said:
EcoFlow Delta-2 - pt2


+++

View attachment 175053View attachment 175054View attachment 175056View attachment 175055





+++


View attachment 175057


+++
Click to expand...


EcoFlow Delta-2 - pt3

the case has finally arrived - and its awesome . . . :mexican wave:


All power packs need to have a bag like this . . . . its brilliant.



check it out:







it has a zip on the front to allow you to drop it in.. . .




you have these two side flaps that are raised for ventilation. . .


nice end zipped pockets cover the output ports. . .




the other end has a nice window for the display and zipped pocket for the output ports





+++



check it out:

uk.ecoflow.com

EcoFlow DELTA 2 Waterproof Bag - EcoFlow UK

uk.ecoflow.com uk.ecoflow.com



The EcoFlow DELTA 2 Waterproof Bag maintains the DELTA 2's ease of use while protecting it from water, debris and damage while on the move.

Highlights

1. Made from lightweight, waterproof, and wear-resistant material that protects DELTA 2 from weathering or on-the-go knocks and scrapes.

2. Designed to protect while ensuring access to all power outlets, and the handle. A transparent cover for the LCD screen lets you easily monitor DELTA 2 while protecting the display from scratches.

What's in the box

EcoFlow DELTA 2 Waterproof Bag

* This bag is applicable for all regions and not restricted to the types of its outlets.

I ordered my EcoFlow DELTA 2 the other week (no cover as I was too late for that offer). I went for the package with the 220W solar panel as well.
The solar panel arrived a few days ago, but I’m not expecting the DELTA 2 until the 2nd half of November.

Shaun Witts said:
I ordered my EcoFlow DELTA 2 the other week (no cover as I was too late for that offer). I went for the package with the 220W solar panel as well.
The solar panel arrived a few days ago, but I’m not expecting the DELTA 2 until the 2nd half of November.
Click to expand...
Well blow me if my DELTA 2 didn’t arrive the other day. Well done Ecoflow as that was ahead of estimate.

So today it has been plugged into the 220W solar panel, but the most charge I have seen (during a short period of sun) was 81W. As a result, the DELTA 2 has only gone up from 29% charged (as delivered) to 39% charge. Looking at the forecast it’s going to take a few weeks to get a full charge from solar at this time of year…

I just love the bag..... Reminds me of the Dometic fridge covers / bags.


A great idea and needs to be offered by all manufacturers moving forwards.....

No so sure about the price though,. Way too expensive for what it is... ( I got mine as part of the early bird offer)

Shaun Witts said:
Well blow me if my DELTA 2 didn’t arrive the other day. Well done Ecoflow as that was ahead of estimate.

So today it has been plugged into the 220W solar panel, but the most charge I have seen (during a short period of sun) was 81W. As a result, the DELTA 2 has only gone up from 29% charged (as delivered) to 39% charge. Looking at the forecast it’s going to take a few weeks to get a full charge from solar at this time of year…
Click to expand...
This time of year we don't get much direct sunlight..... So solar yeild is low.

You could throw 800w at it and still not get no where.

Look at the 12v charger lead.... Most are limited to 8A (set in settings on Ecoflow) but will still charge faster than solar with a cloudy day.

BOOM !!! - ANKER gets serious and matches BLUETTI & ECOFLOW for the KING of PORTABLE POWER

Introducing the - Anker PowerHouse 767



www.anker.com

Anker PowerHouse 767 - 2048Wh | 2300W

Limited stock available. First come, first served. Longest-Lasting 10-Year Lifespan with Anker's Proprietary InfiniPower™ Technology. Rapid Recharge from 0 to 80% in 1 Hour via HyperFlash Technology. Power Up to 10 Devices At Once with 2300W and 10 Ports. 5-Year Full-Device Warranty for a...
www.anker.com







Tech Specs​



Rated Capacity:

51.2V 40,000mAh/2048Wh​

AC Input Voltage:

220-240V~ 10A Max, 50Hz​

AC Input Voltage (Charging):

2200W Max​

XT60 Input:

11-32V⎓ 10A; 32V-60V⎓ 20A (1000W Max)​

USB-C Output:

5V⎓3A/ 9V⎓3A/ 15V⎓3A/ 20V⎓3A/ 20V⎓5A (100W Max)​

Charging Temperature:

32°F-104°F / 0°C-40°C​

AC Output (Bypass Mode):

220-240V~ 9.5A Max, 50Hz, 2280VA/ 2280W Max​

AC Output (Inverter Mode):

230V~ 10A, 50Hz, 2300W Max​

USB-A Output:

5V⎓2.4A (2.4A Max Per Port)​

Car Charger Output:

12V⎓10A​

Discharging Temperature:

-4°F-104°F / -20°C-40°C​



...

+++++++++++++++++++++++++++++++++++++


+++++++++++++++++++++++++++++++++++++

Last edited:
Looking for advice...

Trying to decide between these 3 setups...

Ecoflow River 2 (256wh) with 110W solar panel £558

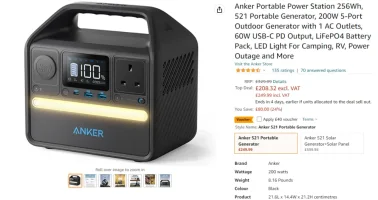

Anker 521 (256wh) with 100W Solar Panel £449 on sale

And the curve ball
Allpowers 606wh with 100W Solar Panel £594

Intended use:
-Charging and powering devices while camping and at home (love the idea of slinging the solar panel on the roof out the velux window and charging everything at home for free (I spent all my home solar panel array money on a T6)).
-Alongside leisure battery that powers fridge, lights and heater.


Leaning towards the anker 521 as it seems just seems like a good deal, and this thread suggests it's high quality.

Any suggestions appreciated

I've got an ALLPOWERS, - It was my first unit,

I've got a Anker 512 and love it,

I've also ordered a EF River 2, but i already have a EF River Pro.

so my take would be the Anker and EF are similar build quality and sit above the ALLPOWERS.

so id choose either one of those first. . . .


you can use any solar panel you like. . . . so you dont need to get any specific panel.

but if you wanted the official panels then they are both very similar. . .

+++++


at the end of the day its down your personal opio0nion and choice out of those two units.

+++++

ECOFLOW Portable Power Station RIVER 2, 256Wh​
















or


++++

Anker Portable Power Station 256Wh​











++++++++++++++++++++++++

for anyone thats interested . . .

Black Friday BLUETTI Deals . . .




amzn.to

BLUETTI UK

BLUETTI Amazon Store. We've built out a whole line up of solar power storage products for adventurers and all kinds of off-grid lives.
amzn.to






ECOFLOW important FW Update . . . . . for River 1 series units.

i had this email from Amazon (where i bought my River Pro unit from (the EF Amazon shop) ) about doing a FW update

the email linked to this German Pdf, detailing the FW update procedure.










++++++

Google translate:











+++++++++++++++++++++++



as it happens i updated my River Pro FW last week before doing the mobile EHU tests . . .

so my River Pro is good to go.

www.t6forum.com

[Guide] Battery Maintainer (for Starter battery) -- How I Done It --

I’ve just fitted the AMT12-2 today and hooked up the EHU. The BM2 shows that the starter received some charge back but seems to have stopped at 12.29V. What voltage level on the starter should it maintain / reach? Keeps mine at 12.6, I asked the same question last week and if the AMT wasn’t...
www.t6forum.com www.t6forum.com






++++++++++++++++++



remember peeps always keep your kits FW up to date,



+++++++++++++++++

Thanks Mr Massive.

Got this about my Delta Mini too - it said if it was used in UPS mode (which I don’t do) but I’d already updated the firmware last week anyway - checked it just now and it said up to date :thumbsup:

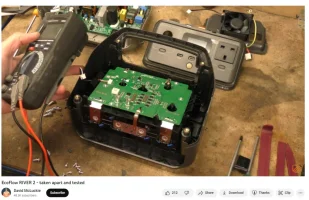

EcoFlow River Gen2

Teardown . . shows build quality

The Good:

PCBs conformal coated,
Earth pin linked to mains,
3x 3.3v Lifpo4 cylnd cells

+++++++++++++++++




EcoFlow Delta 2 -

whats inside . . . . . Teardown.

Despite the fact that Delta 2 exterior looks very similar to it's sibling Delta 1, it is completely different story inside.

The Good:

PCBs conformal coated,
Earth pin linked to mains,
16x 3.3v Lifpo4 cylnd cells @ 48v pack (LFP 3K cycles to 80% SOH)

++++




Last edited:
