T6 OEM LED-headlight retrofit

[Ads_Essex]

Are the lights functioning completely correctly in all states? Auto/Sidelights/Headlights?

yes mate, they are. Just the 'bulb error' light on the dash, the apparent turning off of the dipped beam when it was dusk (they came on when I flashed my main beam, but went back off again a few minutes later) and the DTC's.

Now the level sensors are on and I have disconnected the battery, I'll do a fresh scan.



[Ads_Essex]

Ok, faults cleared, VCDS unplugged, van doors and bonnet closed and van locked for a few minutes.

Unlocked, turned on, Ghost PIN input, clock reset and VCDS scan done -

Friday,06,October,2023,16:21:58:26777
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 23.3.1.0 (x64)  HEX-V2 CB: 0.4639.4
Data version: 20230421 DS346.2
www.Ross-Tech.com


VIN: WV1ZZZ7HZGH04ADAM   License Plate: CODING_BACK_TO_LAST_NIGHT_DTC_CLEARED_LOCKED
Mileage: 82940km-51536mi   Repair Order:



--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: 7H-VN75 (7E0)
Scan: 01 03 04 08 09 10 15 17 19 25 55 5F 61 0B

VIN: WV1ZZZ7HZGH04ADAM   Mileage: 82940km-51536miles

01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
55-Headlight Range -- Status: OK 0000
5F-Information Electr. -- Status: Malfunction 0010
61-Battery Regul. -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CAAC)       Labels:. 03L-906-022-CAA.clb
   Part No SW: 03L 906 019 GQ    HW: 03L 907 309 L
   Component: R4 2,0L EDC   H38 8440
   Revision: 22H38---    Serial number: 00000000000000 CVN: D2CF8DB6
   Coding: 01194012232401080000
   Shop #: WSC 02734 790 00000
   ASAM Dataset: EV_ECM20TDI01103L906019GQ 003006
   ROD: EV_ECM20TDI01103L906019FH_003.rod
   VCID: 005875B80A858A9A0FB-8054
   VINID: 9E606AAAA1D8A976001041452069595186

No fault code found.
Readiness: 0 0 0 0 1

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels: 7E0-907-37x-MK100ESC.clb
   Part No SW: 7E0 907 379 P    HW: 7E0 907 379 M
   Component: ESC           H05 0132
   Revision: 00000000    Serial number: 42535000001716
   Coding: 517E4098256684828A7A027BA48A21D3390000
   Shop #: WSC 02739 790 50316
   ASAM Dataset: EV_Brake1ESCCONTIVN75XGP2 011001
   ROD: EV_Brake1ESCCONTIVN75XGP2_011.rod
   VCID: 3FDAB64437FB3562361-806A

No fault code found.

-------------------------------------------------------------------------------
Address 04: Steering Angle (G085)       Labels:* 6R0-959-654.clb
   Part No SW: 6R0 959 654     HW: 6R0 959 654
   Component: LENKW.SENSOR  H07 0070
   Serial number: 20071504652357
   Coding: 01
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_LWSKLOVW25X 005001
   ROD: EV_LWSKLOVW25X.rod
   VCID: 7EA40B407071FC6A7D7-802A

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301)       Labels:| 7E5-907-047.clb
   Part No SW: 7E0 907 047 T    HW: 7E0 907 047 T
   Component: Climatic-T5   H22 0607
   Revision: 00001002
   Coding: 0000000003
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_ClimaticT5 A01003
   ROD: EV_ClimaT5Basis.rod
   VCID: 3B22C25423E329421A9-806E

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 7E0-937-BCM-V1.clb
   Part No SW: 7E0 937 090     HW: 7E0 937 090
   Component: BCM PQ25 Max4 H80 0736
   Revision: B9080001    Serial number: 0771 251150786
   Coding: B8F4F93A4A61341193284F2426EA9670CD8073F160C979D03204003F0800
   Shop #: WSC 00592 210 00001
   VCID: 68884D18027552DAA7B-803C

   Subsystem 1 - Part No: 5K7 955 559 B  Labels: 5K7-955-559.CLB
   Component: RLS 230915 03  37  0059
   Coding: 0228EE

   Subsystem 2 - Part No SW: 7E0 959 801 K    HW: 7E0 959 801 K  Labels: 7E0-959-80X-V2.CLB
   Component: J386__TSG_FT  003 8654
   Serial number: KU0KU004091552472012
   Coding: 1400B0

   Subsystem 3 - Part No SW: 7E0 959 802 K    HW: 7E0 959 802 K  Labels: 7E0-959-80X-V2.CLB
   Component: J387__TSG_BT  003 8654
   Serial number: KU0KU027081552395697
   Coding: 0400A0

   Subsystem 4 - Part No: 7E1 951 172
   Component: DWA-Sensor 00  001 0104
   Coding: 000000

   Subsystem 5 - Part No: 1K0 951 605 C
   Component: LIN BACKUP HO  H05 1501
   Coding: 000000

   Subsystem 6 - Part No: 7E1 951 172
   Component: DWA-Sensor 00  001 0104
   Coding: 000000

   Subsystem 7 - Part No SW: 5G0 959 442 H    HW: 5G0 959 442 H
   Component: E221__MFL-DC1  H17 0103
   Serial number: 29150001847080075382
   Coding: A4FFFF

No fault code found.

-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446)       Labels:| 7E0-919-475.clb
   Part No SW: 7E0 919 475 M    HW: 1Q0 919 475
   Component: PARKHILFE 4K  H03 0205
   Revision: --------    Serial number: 32931520205484
   Coding: 10800A
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_VW75XParkAssis4K 001008
   ROD: EV_VW75XParkAssis4K_001.rod
   VCID: 3C20C14826ED2E7A133-8068

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:| 5K0-959-655.clb
   Part No SW: 7E0 959 655 D    HW: 7E0 959 655 D
   Component: VW10Airbag00J 008 0016
   Revision: --------    Serial number: 003PH00125V+ Dataset Number: 7E0003V____ 0737
   Coding: 00000000000000000000000000000000304A
   Shop #: WSC 02734 790 50316
   ASAM Dataset: EV_AirbaVW10BPAVW12X 001028
   ROD: EV_AirbaVW10BPAVN750.rod
   VCID: 372ADE641FCB0D22FE1-8062

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
   Part No SW: 7E0 920 970 L    HW: 7E0 920 970 L
   Component: KOMBI         H05 1008
   Serial number: 00000000000000
   Coding: 7709010100
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A05730
   ROD: EV_Kombi_UDS_VDD_RM09_005_VW25.rod
   VCID: 3332EA740BB3E102C29-8066

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 7E0-909-901.clb
   Part No SW: 7E0 909 901     HW: 7E0 937 090
   Component: GW-K-CAN TP20 H80 0736
   Revision: B9080001
   Coding: 042307
   Shop #: WSC 00592 210 00001
   VCID: 68884D18027552DAA7B-803C

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H05 1008
   Serial number:
   Coding: 000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
   ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
   VCID: 6A8C37101CF960CAB1F-803E

No fault code found.

-------------------------------------------------------------------------------
Address 55: Headlight Range (J431)       Labels:. 6R0-907-357.clb
   Part No SW: 6R0 907 357     HW: 6R0 907 357
   Component: LWR-ECU       H02 0070
   Revision: --------    Serial number: --------------
   Coding: 0312000001000000
   Shop #: WSC 20200 993 28888
   ASAM Dataset: EV_HeadlRegulVWLWRPt 001004
   ROD: EV_HeadlRegulVWLWRPt_VW25.rod
   VCID: 77AA1E645F4BCD223E1-8022

No fault code found.

-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794)       Labels:| 5G0-035-MIB-STD2.clb
   Part No SW: 5C0 035 680 C    HW: 5C0 035 680 C
   Component: MU-S-ND-ER    H22 0245
   Serial number: VWZAZ2R8864707 Dataset Number: 5K7CV1v____ 0001
   Coding: 065700013C00000011111101008808001F0107C6002001004F
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_MUStd4CTSAT 001022
   ROD: EV_MUStd4CTSAT_VW32.rod
   VCID: 211E103CA14F6392205-8074

   Data carrier:
   Subsystem 1 - Part No SW: 5NA 919 866 CK    HW: -----------
   Component: ECE AS 2023  --- 1910
   Serial number: --------------------

4 Faults Found:
0517 - Front Right Bass Speaker
          B1062 13 [009] - Open Circuit
          [Tieftonlautsprecher Kanal 2: Unterbrechung (DC-Diagnose)]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 170
                    Mileage: 82947 km
                    Date: 2023.10.06
                    Time: 16:20:18

                    Voltage terminal 30: 12.4 V

0518 - Front Right Treble Speaker
          B1064 13 [009] - Open Circuit
          [Hochtonlautsprecher Kanal 2: Unterbrechung (AC-Diagnose)]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 170
                    Mileage: 82947 km
                    Date: 2023.10.06
                    Time: 16:20:18

                    Voltage terminal 30: 12.4 V

0522 - Front Left Bass Speaker
          B105F 13 [009] - Open Circuit
          [Tieftonlautsprecher Kanal 3: Unterbrechung (DC-Diagnose)]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 170
                    Mileage: 82947 km
                    Date: 2023.10.06
                    Time: 16:20:18

                    Voltage terminal 30: 12.4 V

0523 - Front Left Treble Speaker
          B1061 13 [009] - Open Circuit
          [Hochtonlautsprecher Kanal 3: Unterbrechung (AC-Diagnose)]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 170
                    Mileage: 82947 km
                    Date: 2023.10.06
                    Time: 16:20:18

                    Voltage terminal 30: 12.4 V


-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840)       Labels:. 1K0-907-534.clb
   Part No SW: 7E0 907 534     HW: 7E0 937 090
   Component: Batt.regelung H80 0736
   Serial number: 0771 251150786
   Coding: 030B1A73
   Shop #: WSC 02739 790 00000
   VCID: 68884D18027552DAA7B-803C

   Subsystem 1 - Part No SW: 7E0 915 181 G    HW: 7E0 915 181 G
   Component: J367-BDM  H08 0223
   Serial number: 52237I02461261550806

No fault code found.

End----------(Elapsed Time: 01:58, VBatt start/end: 12.6V/12.5V)-----------

With engine running and dipped beam set to on, I get the following error:

00979 - Lamp for Low Beam; Right (M31)
            010 - Open or Short to Plus - Intermittent
             Freeze Frame:
                    Fault Status: 00101010
                    Fault Priority: 3
                    Fault Frequency: 31
                    Reset counter: 210
                    Mileage: 82947 km
                    Time Indication: 0
                    Date: 2018.02.26
                    Time: 16:25:59

If I clear DTC's, bulb error light remains even with lights switched off at the control knob.



[Lightrofit]

yes mate, they are. Just the 'bulb error' light on the dash, the apparent turning off of the dipped beam when it was dusk (they came on when I flashed my main beam, but went back off again a few minutes later) and the DTC's.

Now the level sensors are on and I have disconnected the battery, I'll do a fresh scan.

The dash error can be turned off but the DTCs left on the BCM.

However, I see this is a last resort type measure. Better off programming the BCM correctly.

One thing that is worth thinking about, it could be a parameters change that is needed. It's an outside chance but it's the one thing that differentiates the BCMs (why there are so many) and it's something that VCDS can't do.

I have yet to tackle an LED headlight retrofit on a T6. Done a couple of SY Crafters but that's a different beast. So I don't have much else to offer coding wise.



[Ads_Essex]

The dash error can be turned off but the DTCs left on the BCM.

However, I see this is a last resort type measure. Better off programming the BCM correctly.

One thing that is worth thinking about, it could be a parameters change that is needed. It's an outside chance but it's the one thing that differentiates the BCMs (why there are so many) and it's something that VCDS can't do.

I have yet to tackle an LED headlight retrofit on a T6. Done a couple of SY Crafters but that's a different beast. So I don't have much else to offer coding wise.

Ah I see, ok cheers mate.

On another note, where does the headlight range control module now go?



[Lightrofit]

Ah I see, ok cheers mate.

On another note, where does the headlight range control module now go?

View attachment 216109View attachment 216110

Factory location is to the left of the steering column



[Ads_Essex]

I did see that image earlier in this thread - my PDC module sits there, so im non the wiser!



[Lightrofit]

I did see that image earlier in this thread - my PDC module sits there, so im non the wiser!

Your PDC module should be in an asshole of a place up here:



[Ads_Essex]

Your PDC module should be in an asshole of a place up here:

View attachment 216114

That’s bizarre - the HRCM doesn’t fit in the slot where the PDC is right now. I wonder if that’s because my van is a EU5 T6, so perhaps it has a different layout (perhaps like a T5.1?)



[Lightrofit]

That’s bizarre - the HRCM doesn’t fit in the slot where the PDC is right now. I wonder if that’s because my van is a EU5 T6, so perhaps it has a different layout (perhaps like a T5.1?)

Got a pic of where your PDC is at the mo?



[Ads_Essex]

Got a pic of where your PDC is at the mo?



[Lightrofit]

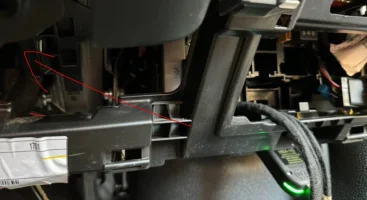

View attachment 216117

Oh it's by there?! Strange, when I've dug one out previously I needed the hands of an 8 yr old girl and it was hidden up by the A pillar!

Anyway, that's to the RIGHT of your steering column, the diagram for the HRCM is to the LEFT of the column

Up there:



[Ads_Essex]

Oh it's by there?! Strange, when I've dug one out previously I needed the hands of an 8 yr old girl and it was hidden up by the A pillar!

Anyway, that's to the RIGHT of your steering column, the diagram for the HRCM is to the LEFT of the column

Oops, sorry about that



[Lightrofit]

Oops, sorry about that

Quick question, how come you've used a T5.1 HRCM instead of a T6?



[Ads_Essex]

Oh it's by there?! Strange, when I've dug one out previously I needed the hands of an 8 yr old girl and it was hidden up by the A pillar!

Anyway, that's to the RIGHT of your steering column, the diagram for the HRCM is to the LEFT of the column

Up there:

View attachment 216118

Christ - and you say the PDC module is in a bad place?!

Quick question, how come you've used a T5.1 HRCM instead of a T6?

Bought it hoping it might work. I’m presuming it can’t be flashed to work with my T6?

It should be C at the end but assuming that the last letter indicates revision only there is a good chance that it might work.
I would chance it if its priced up to £20( I got mine second hand for approx £35 including delivery).

Some extra info below

T6 LED headlight retrofit?

All parts for my retrofit are now ordered with the exception of the plug and play looms. Other than the looms (to keep the install as simple as possible), I am using all used/second hand parts sourced from eBay to keep costs as low as possible. I won't get the warranty on parts that I would...

www.t6forum.com



[Ads_Essex]

Just went for a drive. Headlights turn on with unlocking. But as I drove up my road the dipped beams turned off. Flashing the headlights turned them back on.

When I got out to check them, as soon as I pulled on the door handle the dipped came back on!
I had my wife pull the stalk and only the offside main-beam flashed initially.

Drove on and dipped beams went out, one before the other, this time.
When I turned the headlamp switch from auto, in to sidelights for a moment before on to dipped lights, nothing happened - the only light showing was the DRL / sidelights. I tried again and they didn’t come on. I drove on and flashed the lights and the dipped came back on but quickly went back out, one before the other. They did this repeatedly, only going back on when I flashed them.

Got back home and tested - both main beams work, but why only one was showing mid-drive I don’t know.

I haven’t changed any coding since my last scan here.

Any ideas, anyone?



[mmi]

1) change byte 16 coding from "CD" to "C0" to see if it performs better.

I noticed you got bulb out warning on dash - but do the lights actually work?



[Ads_Essex]

I noticed you got bulb out warning on dash - but do the lights actually work?

That is a very good question. I don’t want to say for sure because there’s every chance i didn’t get out and check.

I’ve been re-reading this thread now I’ve installed and coded and a lot more makes sense.

I’ll jump on it tomorrow morning and check that one first.


Thanks again Matti



[F-roger]

I would suggest disabling all PWM that relate to the low beam headlights! I know of several machines (including mine) that have never been able to completely avoid scanning errors, but the light functions completely fine! In order to understand what was wrong with the car, I tried to install a completely long coding, coding 09 addresses from other cars that are as close as possible to mine in configuration!

I can suggest you to use my entire 09 address encoding! At the same time, I am sure that you will not have an error related to the light on the cluster!

62A83DB84A01001201284E743ECB86F49094732060CD3970320400A30840



[Pauly]

The range module sits really high up inside the dash(pretty much vertically above the pedals maybe a touch to the left), it’s mounts on a plastic bracket that is shared with the ACC module, I’m pretty sure it goes in before the dash as I have never been able to get the mounting bracket located without chopping it up, my looms are made to replicate factory fit but if you don’t have the bracket it’s just a case of fitting it somewhere out the way where it can’t obstruct the pedals or foul the steering column (any moving part)



[Ads_Essex]

The range module sits really high up inside the dash(pretty much vertically above the pedals maybe a touch to the left), it’s mounts on a plastic bracket that is shared with the ACC module, I’m pretty sure it goes in before the dash as I have never been able to get the mounting bracket located without chopping it up, my looms are made to replicate factory fit but if you don’t have the bracket it’s just a case of fitting it somewhere out the way where it can’t obstruct the pedals or foul the steering column (any moving part)

Cheers @Pauly - I’m not sure if mine has little in the way of corresponding brackets as there’s nothing on the left of the steering column, but plenty of relay-sized holes on the right. There is a horizontal metal bracket up high that the HRCM seems to fit perfectly, the two mounting holes lining up, and as the loom fits that I have mounted it there. It’s a proper pig to get to, mind! Loom fits perfectly.

I noticed you got bulb out warning on dash - but do the lights actually work?

@mmi I’ve just changed this byte as suggested and all lights work perfectly. On a drive, they all behave as they should. I still have the ‘bulb error’ warning lamp on the dash with DTC’s showing ‘open or short to plus’ errors for both low beams.

I would suggest disabling all PWM that relate to the low beam headlights! I know of several machines (including mine) that have never been able to completely avoid scanning errors, but the light functions completely fine! In order to understand what was wrong with the car, I tried to install a completely long coding, coding 09 addresses from other cars that are as close as possible to mine in configuration!

I can suggest you to use my entire 09 address encoding! At the same time, I am sure that you will not have an error related to the light on the cluster!

62A83DB84A01001201284E743ECB86F49094732060CD3970320400A30840

It looks like C0 has disabled all PWM (well, at least in byte 16, whereas
- byte 11 shows bit 2 ‘Activation for Additional Position Lights via PWM active’ and bit 5 ‘Activation for Licence Plate Lights via PWM active’,
- byte 19 shows bit 0 ‘Fog Lights and/or Cornering Lights via PWM active’ and
- byte 27 shows bit 1 ‘Terminal 58D activation for BCM via PWM active’).

I’ve had a re-read of @MMi’s posts on the ‘Light Out’ thread and see mine match, so don’t know what the bulb error lamp is on for.

What are these 'position lights' in byte 11? Could that be the cause of the bulb error warning?
