Hi I have a Westfalia removable tow bar on my T6.1. I bought the Thule 3bike XT bike rack ,but the tail gate seems to hit the frame ,so it only opens around 300mm when the bike rack is on its tilt ,Has any one else have the same issue ? Speaking to Westfalia they don't make a different hitch to fit as they say it will invalidate the warranty.
Looks like another one of my many FUBAR's haha ,thans for any feed back
Chumba
Looks like another one of my many FUBAR's haha ,thans for any feed back
Chumba
I've bought the trailer assist and detachable towbar. Love a few extrasBeen into VW Coventry to order ‘extras’ today
Hope someone can help here, I'm halfway through fitting a Wesfalia Tow bar to my 2017 Shuttle.
So I'm looking specifically at the point were three wires are connected to the extra fuse bar thats under the passenger seat.

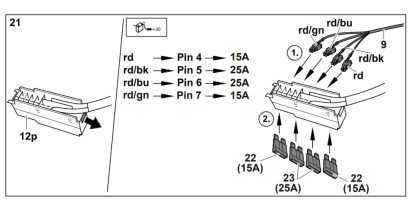

Now the instructions say that the three cables are fitted in spots 5,6,7 lest say and a fuse fitted to each.
Now I cant for the life of me work out what the three fuses are going to plug into on the opposite side theres no power there?
I have two powerlines up, that are already connected to something, I think they are rear 12v sockets via fuses.
Anyone know what your supposed to do?
Sort of like this but I only have three wires?
So I'm looking specifically at the point were three wires are connected to the extra fuse bar thats under the passenger seat.
Now the instructions say that the three cables are fitted in spots 5,6,7 lest say and a fuse fitted to each.
Now I cant for the life of me work out what the three fuses are going to plug into on the opposite side theres no power there?
I have two powerlines up, that are already connected to something, I think they are rear 12v sockets via fuses.
Anyone know what your supposed to do?
Sort of like this but I only have three wires?
Have you got a pic of what you have? I had to buy the extra fuse box and it had spare slots even with the three tow bar connections and the 12v socket I added. There is a copper buzz bar on one side.

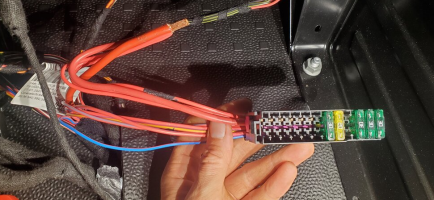

Here is mine…
Don't suppose you can sow me what it looks like underneath - I can envisage what the fuse has joined to?
Ahhhh that makes sense - mine is the stock VW one
That was last year and seat back in now!

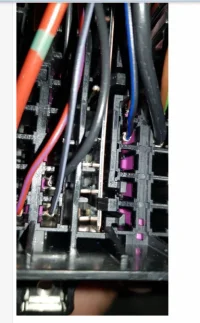

The fuse box is clipped into the black holder which itself is fitted to the seat base with two torx screws. You need to remove the fuse box from the holder then the fuse box splits into two parts. There might be a connector retainer to remove before you can push the new connectors in. Cable tie the new cables as they exit the fuse box and clip it all back together.
The fuse box is clipped into the black holder which itself is fitted to the seat base with two torx screws. You need to remove the fuse box from the holder then the fuse box splits into two parts. There might be a connector retainer to remove before you can push the new connectors in. Cable tie the new cables as they exit the fuse box and clip it all back together.
Found a link to it - you can just see the end of the purple connector retainer. Just campers also have the fuse box holder too (to help visualise / see the clips)
www.justkampers.com
Towbar Electrics Extension Kit VW T5 2010–2015 VW T6 2015 on
Fits VW T5s from 2003 to 2015 and VW T6s 2015 on For further technical information please contact Westfalia on 01244 284 584.
www.justkampers.com
The original fuse box would have had one side of the fuse connected to a busbar that connects to the supply feed cable.
The idea is you connect the new circuits into the empty slots.....then add a fuse.
So have you got a close pic of the fuse box?
The idea is you connect the new circuits into the empty slots.....then add a fuse.
So have you got a close pic of the fuse box?
I fitted a Westfalia tow bar to my Audi A6, and I found the wiring instructions extremely difficult to follow, as there are no actual instructions, just pictograms. These often made no sense until explained, and sometimes had multiple possible meanings. I spent several hours trying to decrypt the 'instructions' and I still wasn't 100% sure I was correct, so I phoned them, and they were very helpful, we went through everything to confirm what I thought, and it turned out I was correct.
As far as I remember, the Westfalia instructions only show how to add the towbar module to the CAN gateway (using VCDS), this gets the trailer lights working, but loads of other ECU's also need recoding to get things working correctly. I got a list of the codes from Ross Tech.
As far as I remember, the Westfalia instructions only show how to add the towbar module to the CAN gateway (using VCDS), this gets the trailer lights working, but loads of other ECU's also need recoding to get things working correctly. I got a list of the codes from Ross Tech.
OK so this is exactly where I'm stuck cant see how my initail searches never threw this up.
So I have the fuse board but the opposite has no bus bar and they are direct connections.
Anyone solved this as that thread petered out...
www.t6forum.com
So I have the fuse board but the opposite has no bus bar and they are direct connections.
Anyone solved this as that thread petered out...
Westfalia Tow Bar Underseat Fuses

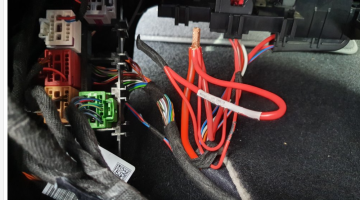

I'm fitting the electrics to my tow bar. It says to put cables in pin 4 5 6 but I'm pretty sure theres already cables in the fuse block 4. Do i just wire them down? Struggling to see where they get there power from then Do it like this??
i got some pics over here about adding new fuses to existing fusebox . . .
[Guide] Barn-Door Reversing Camera Retrofit -- How I Done It --
Barn door Reversing Camera Retrofit -- How I Done It -- This is how its works: ******************************************************************* At the time of ordering the van i was told i could not have the RVS CAM option as it was only for tailgate models . . . . yeh right what-ever...
ok, from that other thread . . .
you can add your new wire to any of the empty slots (green)
there should be a busbar metal strip allong the other side. (orange)
in my example here is the same colour details. . .
so post a close up pic of your existing fuse block . .
and well see what you have. . .
you can add your new wire to any of the empty slots (green)
there should be a busbar metal strip allong the other side. (orange)
in my example here is the same colour details. . .
so post a close up pic of your existing fuse block . .
and well see what you have. . .
sorry just noticed . .
you say that fuse block has no bus bar . . .
hey are just wires in - out . .
you say that fuse block has no bus bar . . .
hey are just wires in - out . .
that will be the factory fitted wire kit . . .
see here:
www.t6forum.com
....
some people just fit a new dedicated fuse box. . . .
example . . .
see here:
T6.1 What’s this live feed under my passenger seat? [Merge]
Im new to the transporter world. Im looking for a location for my Leisure Battery and have looked under the Single front Passenger seat. The available pace looks ok. Easily 330 mm L x 230 mm H x 200 mm W. While looking I found a bunch of taped up (from Factory) Positive wires. One looks to...
....
some people just fit a new dedicated fuse box. . . .
example . . .
