(Side Assist) / (Blind Spot Detection & Rear Cross Traffic Alert) retrofit

dnoermann said:
Here, xml for usage with vcp.
Click to expand...
Thank you so much, I manually converted it to ODIS format, uploaded to the module, and all is working after changing some adaptations in the Discover Media :D I have no excuse for reversing into things any more :p

Attached xml in ODIS-E format if anyone else needs it


Attachments

  • 1K8919472C Parameters ODIS.xml.txt
    4.3 KB · Views: 69
Shadow109 said:
Hello again
I have finally fitted the sensors with the new PDC, still need to upgrade the ABS to T6
I was won how the change the animated view to look like this
Click to expand...

I am hoping to catch up soon, my radars have arrived, just waiting on the plugs for them. Wiring should be straight forward thanks to my previous direct TPMS retrofit :D just the mirror LEDs which I will add later on, it is the view in ParkPilot I like the most.

With regards to upgrading the ABS from T5.1 to T6, I also looked at this and it does not look straightforward at all. From what I can see from photos, the ports on the top do not line up, they are staggered on the T5.1 version, but in a straight line on the T6. Also the thread sizes change from "big little little big" on T5.1 to "little big little big" on T6. So replacement brake lines would have to be made to do a proper job.

On a separate note, the T5.1s that came with side assist have a button in the dash to turn the system off, obviously this is with 7E0 radars, looks like it's just switching an earth. Does anyone know if this is possible to use with the 5Q0 radars, as it would remove one of the few remaining blanks from my dash :cool:

SA Switch.PNG

Regarding brake lines have a look below.
www.t6forum.com

ABS Long Coding, Hill Descent Control, Tyre Pressure Monitoring

Here is a couple of nuggets for everyone: How to active Tyre pressure monitoring TPM (PR 7K9) How to active Hill descent control on 4Motion vehicles (PR UG5) Of course with UG5 the hill descent switch must be installed and wired to the ABS CU to activate. TPM activation is purely just software...
www.t6forum.com www.t6forum.com

I will just add that the replacement of sensors in my case was not pink, after 17 years the sensors (plastic bodies) were integrated into the body of the rocker arm. It was necessary to drill (drill diameter 8 and 6) and extract the remains of the sensor, quite a time-consuming job.
Additionally, I tried to install a bi-directional sensor on the front axle, it results in the error below (for that particular ABS long coding):

Address 03: ABS Brakes Labels: 7E0-907-37x-MK100ESC.clb
Control Module Part Number: 7E0 907 379 Q HW: 7E0 907 379 N
Component and/or Version: ESC H06 0133
Software Coding: 347E4098256286832C7C0276A48B619328F550
Work Shop Code: WSC 00001 001 00001
ASAM Dataset: EV_Brake1ESCCONTIVN75XGP2 011001 (VN75)
ROD: EV_Brake1ESCCONTIVN75XGP2_011.rod
VCID: 40D943B05A0C731BCF3-8014
4 Faults Found:

0055 - Front Right Wheel Speed Sensor
C101B 4A [137] - Incorrect component(s) installed
MIL ON - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Reset counter: 24
Mileage: 312337 km
Date: 2044.14.26
Time: 18:49:30
Click to expand...

  • Like
Reactions: mmi

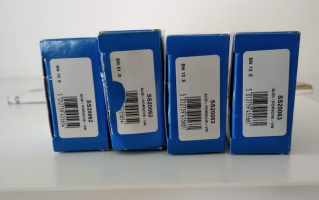

One more information, I used Delphi replacements.
Indexes:
SS20035 Front Left (VW OE: WHT 003 857)
SS20036 Front Right (VW OE: WHT 003 856)
SS20062 Rear Left (VW OE: WHT 003 857 B) - Assembled until 19/10/2020 in T 6.1
SS20063 Rear Right (VW OE: WHT 003 856 B) Assembled until 19/10/2020 in T 6.1

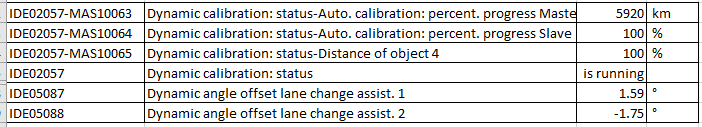

after a really slow calibration I. ended up with two faults :-

Code:
     Address 3C: Lane Change       Labels: 5Q0-907-686.clb
Control Module Part Number: 5Q0 907 686 C    HW: 5Q0 907 686 C
  Component and/or Version: HRE_Master    H12 0080
           Software Coding: 02031102
            Work Shop Code: WSC 09003 957 00200
              ASAM Dataset: EV_HREntryHella 001028 (VN75)
                       ROD: EV_HREntryHella_VW37.rod*
                      VCID: 3D2730DE2DF32E338C4-8068
2 Faults Found:

336901 - Databus
          U1121 00 [009] - Missing Message
          [Braking ECU ESP_33 - no signal/no communication]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 43
                    Mileage: 241866 km
                    Date: 2053.14.16
                    Time: 23:51:21

338048 - Databus
          U1123 00 [009] - Received Error Message
          [Parkhilfe_01::PH_Tongeber_H_verfuegbar]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 43
                    Mileage: 241866 km
                    Date: 2053.14.16
                    Time: 23:51:21

I guess its mandatory to change the ABS unit, luckily I found 7E0907379Q

Code:
Thursday,02,September,2021,09:02:14:10253
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 21.9.0.1  HEX-V2 CB: 0.4555.4
Data version: 20210824 DS330.0
www.Ross-Tech.com


VIN: WV1ZZZ7HZDH036544   License Plate:


Chassis Type: 7H-VN75 (7E0)
Scan: 01 03 04 08 09 10 15 17 19 20 25 37 3C 5F 65 77 0B

VIN: WV1ZZZ7HZDH036544   Mileage: 242830km-150887miles

01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
20-High Beam Assist. -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
37-Navigation -- Status: OK 0000
3C-Lane Change -- Status: Malfunction 0010
5F-Information Electr. -- Status: Malfunction 0010
65-Tire Pressure -- Status: OK 0000
77-Telephone -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-CAAA)       Labels:. 03L-906-022-CAA.clb
   Part No SW: 03L 906 019 GF    HW: 03L 907 309 M
   Component: R4 2,0L EDC   H44 3312
   Revision: 26H44---    Serial number: 00000000000000 CVN: 7F3BF3CC
   Coding: 01114012232400080000
   Shop #: WSC 02736 790 50316
   ASAM Dataset: EV_ECM20TDI01103L906019GF 003002
   ROD: EV_ECM20TDI01103L906019FG_003.rod
   VCID: 75B7E8FE5543B673844-8020
   VINID: 9E606AAAA1D8A946000C6144105E5FB8A3

No fault code found.
Readiness: 0 0 0 0 1

-------------------------------------------------------------------------------
Address 03: ABS Brakes (-----)       Labels: 7E0-907-37x-MK25AXT.clb
   Part No SW: 7E0 907 379 K    HW: 7E0 907 379 E
   Component: ESP MK25A XT  H43 0110
   Revision: 00H43001
   Coding: 508724AD89A70A9B24A79175796210
   Shop #: WSC 02736 790 49152
   VCID: 3A2D3BC23C5D190BA96-806E

No fault code found.

-------------------------------------------------------------------------------
Address 04: Steering Angle (G085)       Labels:* 6R0-959-654.clb
   Part No SW: 6R0 959 654     HW: 6R0 959 654
   Component: LENKW.SENSOR  H07 0070
   Serial number: 11031913470358
   Coding: 01
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_LWSKLOVW25X 005001
   ROD: EV_LWSKLOVW25X.rod
   VCID: 7EA5F7D26075F52BD5E-802A

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301)       Labels:| 7E5-907-047.clb
   Part No SW: 7E5 907 047 BM    HW: 7E5 907 047 BM
   Component: Climatic-T5   H20 0505
   Revision: 00001010
   Coding: 0000000002
   Shop #: WSC 02736 790 50316
   ASAM Dataset: EV_ClimaticT5 A01003
   ROD: EV_ClimaT5Basis.rod
   VCID: 7BA3FEC67367E003F20-802E

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 7E0-937-BCM-V1.clb
   Part No SW: 7E0 937 090 E    HW: 7E0 937 090 E
   Component: BCM PQ25 Max4 H84 0772
   Revision: B9084001    Serial number: 2502 306190145
   Coding: A8A0393E4E21201201280ED06EAB9ED4F08063FF608C2040320400030800
   Shop #: WSC 12345 123 12345
   VCID: 2D07009EFD13BEB33C4-8078

   Subsystem 1 - Part No: 5K7 955 559 B  Labels: 5K7-955-559.CLB
   Component: RLS 230916 03  37  0059
   Coding: 0228EE

   Subsystem 2 - Part No SW: 7E0 959 801     HW: 7E0 959 801   Labels: 7E0-959-80X-V1.CLB
   Component: J386__TSG_FT  002 3313
   Serial number: --------------------
   Coding: 000000

   Subsystem 3 - Part No SW: 7E0 959 802     HW: 7E0 959 802   Labels: 7E0-959-80X-V1.CLB
   Component: J387__TSG_BT  002 3313
   Serial number: --------------------
   Coding: 000000

No fault code found.

-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446)       Labels:| 5Q0-919-294.clb
   Part No SW: 1K8 919 472 C    HW: 5Q0 919 294 A
   Component: PARKHILFE 8K  H03 0480
   Revision: --------    Serial number: 39331623512708
   Coding: 0031151001
   Shop #: WSC 00020 999 12345
   ASAM Dataset: EV_EPHVA18VW364GP00 001007
   ROD: EV_EPHVA18VW364GP00_VW32.rod
   VCID: 372B22F60FCF0463568-8062

1 Fault Found:
12718592 - Databus
          U1121 00 [009] - Missing Message
          [Steuerger‰t f¸r Lenks‰ulenelektronik-J527/BCM - mZAS_1 - kein Signal/keine Kommunikation]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 59
                    Mileage: 242836 km
                    Date: 2021.09.02
                    Time: 19:00:05


-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:| 5K0-959-655.clb
   Part No SW: 7E0 959 655 B    HW: 7E0 959 655 B
   Component: VW10Airbag003 H07 0013
   Revision: --------    Serial number: 003HL00DDD0.
   Coding: 000000000000000000000000000000003033
   Shop #: WSC 02734 790 50316
   ASAM Dataset: EV_AirbaVW10BPAVN750 A01026
   ROD: EV_AirbaVW10BPAVN750.rod
   VCID: 353728FE15C3F673444-8060

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
   Part No SW: 7E0 920 970 N    HW: 7E0 920 970 N
   Component: KOMBI         H04 0805
   Serial number: 00000000000000
   Coding: 160A01
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04727
   ROD: EV_Kombi_UDS_VDD_RM09_004_VW36.rod
   VCID: 353728FE15C3F673444-8060

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 7E0-909-901.clb
   Part No SW: 7E0 909 901     HW: 7E0 937 090 E
   Component: GW-K-CAN TP20 H84 0772
   Revision: B9084001
   Coding: 042204
   Shop #: WSC 12345 123 12345
   VCID: 6889B18A12715B9B0F2-803C

No fault code found.

-------------------------------------------------------------------------------
Address 20: High Beam Assist. (J844)       Labels:| 8S0-857-511.clb
   Part No SW: 7E0 857 511 F    HW: 7E0 857 511 C
   Component: FLA           H10 0003
   Revision: AA001001
   Coding: 010100E200000100000000
   Shop #: WSC 12345 123 12345
   ASAM Dataset: EV_HighBeamAssisAU316 001004
   ROD: EV_HighBeamAssisAU316.rod
   VCID: 2D07009EFD93BEB33C4-8078

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H04 0805
   Serial number:
   Coding: 000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
   ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
   VCID: 6A8DCB820CFD698B196-803E

No fault code found.

-------------------------------------------------------------------------------
Address 37: Navigation
Cannot be reached

-------------------------------------------------------------------------------
Address 3C: Lane Change       Labels: 5Q0-907-686.clb
Control Module Part Number: 5Q0 907 686 C    HW: 5Q0 907 686 C
  Component and/or Version: HRE_Master    H12 0080
           Software Coding: 02031102
            Work Shop Code: WSC 09003 957 00200
              ASAM Dataset: EV_HREntryHella 001028 (VN75)
                       ROD: EV_HREntryHella_VW37.rod*
                      VCID: 3D2730DE2DF32E338C4-8068
2 Faults Found:

336901 - Databus
          U1121 00 [009] - Missing Message
          [Braking ECU ESP_33 - no signal/no communication]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 43
                    Mileage: 241866 km
                    Date: 2053.14.16
                    Time: 23:51:21

338048 - Databus
          U1123 00 [009] - Received Error Message
          [Parkhilfe_01::PH_Tongeber_H_verfuegbar]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 43
                    Mileage: 241866 km
                    Date: 2053.14.16
                    Time: 23:51:21


-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794)       Labels:| 5G0-035-MIB-STD2.clb
   Part No SW: 5C0 035 680 G    HW: 5C0 035 680 G
   Component: MU-S-ND-ER    H41 0478
   Serial number: VWZAZ2U1668085
   Coding: 0645000FBE00000011112601010D08001F0303D401200100CE
   Shop #: WSC 00046 123 12345
   ASAM Dataset: EV_MUStd4CTSAT 001022
   ROD: EV_MUStd4CTSAT_VW32.rod
   VCID: 2517F8BEA56386F3F44-8070

   Data carrier:
   Subsystem 1 - Part No SW: 5NA 919 866 AL    HW: -----------
   Component: MRM1 2020/21  --- 1420
   Serial number: --------------------

3 Faults Found:
1602 - Data Set Implausible
          B2012 00 [009] - -
          [Control module (data record download) - implausible data record for DAB frequency tables]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 59
                    Mileage: 242836 km
                    Date: 2021.09.02
                    Time: 19:00:05

                    Voltage terminal 30: 13.7 V

15360768 - Component Protection
          U1101 00 [009] - Active
          [Anti-theft protection - component protection active (0xEA6300)]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 4
                    Fault Frequency: 1
                    Reset counter: 59
                    Mileage: 242836 km
                    Date: 2021.09.02
                    Time: 19:00:05

                    Voltage terminal 30: 13.7 V

6720 - Rear View Camera
          B1102 31 [009] - No Signal
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 59
                    Mileage: 242836 km
                    Date: 2021.09.02
                    Time: 19:00:44

                    Voltage terminal 30: 13.7 V


-------------------------------------------------------------------------------
Address 65: Tire Pressure (J502)       Labels: 3AA-907-273.clb
   Part No SW: 3AA 907 273 F    HW: 5Q0 907 273
   Component: RDKBERU30     H04 0011
   Serial number: 30000000047437
   ASAM Dataset: EV_RDKBERU30 005005
   ROD: EV_RDKBERU30_005.rod
   VCID: 372B22F60FCF0463568-8062

No fault code found.

-------------------------------------------------------------------------------
Address 77: Telephone
Cannot be reached

End----------(Elapsed Time: 01:29, VBatt start/end: 13.8V/13.8V)-----------

Shadow109 said:
after a really slow calibration
Click to expand...
What do mean "really slow"? How many kilometers of driving?
I'd expect it would reach 100%/100% in less than 100 km's.

At what angle the sensors are installed?

For the calibration - I believe (only) the following are worth monitoring - eventually the last two here.

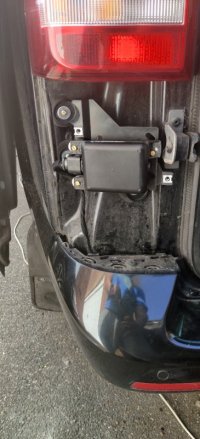

I have finally fitted my radars (5Q0) to my T5.1. In my box of bits I had a glut of M4 brass screws and plastic 'polo' spacers which came in very handy.

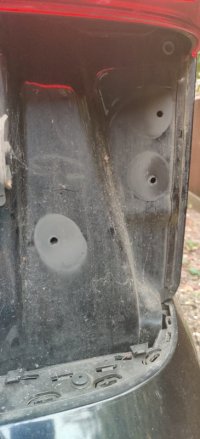

The only tip I can give in addition to what's already posted, is when drilling the holes for mounting, I wanted to paint the metalwork but was worried about overspray. I used the cardboard tube from an empty toilet roll (no panic buying here) and it just covered a small area. Don't know why I didn't think of this before :D M4 rivnuts inserted afterwards.

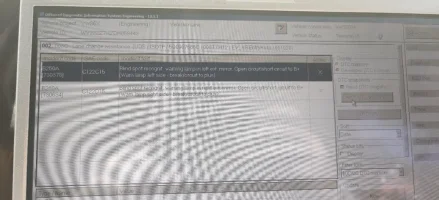

Unfortunately VCDS didn't like it, and was complaining big time of no ROD file, presumably because it's not supposed to be used on this platform. I tried copying one and adding VN75 to the end but it still didn't like it. Any suggestions welcome! In the meantime, ODIS-E to the rescue on VW36x project, the two errors are because the mirror LEDs aren't fitted yet. Just need to let adaptation do its thing, but unfortunately I currently have Covid19 so can't leave the house. It does let me catch up with various other projects though!

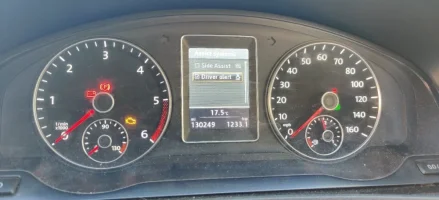

The other good news is, my instrument cluster has now shown the menu for side assist. It went greyed out as soon as I tried to tick it, but that's probably due to either the error codes or lack of calibration. I was a bit scared about it not working, as my direct TPMS still doesn't work due to old software on my instrument cluster :unsure:

You must log in or register to reply here.

Similar threads

DubHaus
Multiple Retrofits, Side Assist, Trailer Assist and Park Assist - VCDS help required please
2 3
Replies
54
Views
4K
DubHaus
DubHaus
Back
Top
